Toyota Estima Hybrid

2006-06 → 2019-10 · chassis AHR20 · catalogue 656150 · Japan

Supported model Data version 2020-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

12 part groups · 2 illustrations

Illustrations

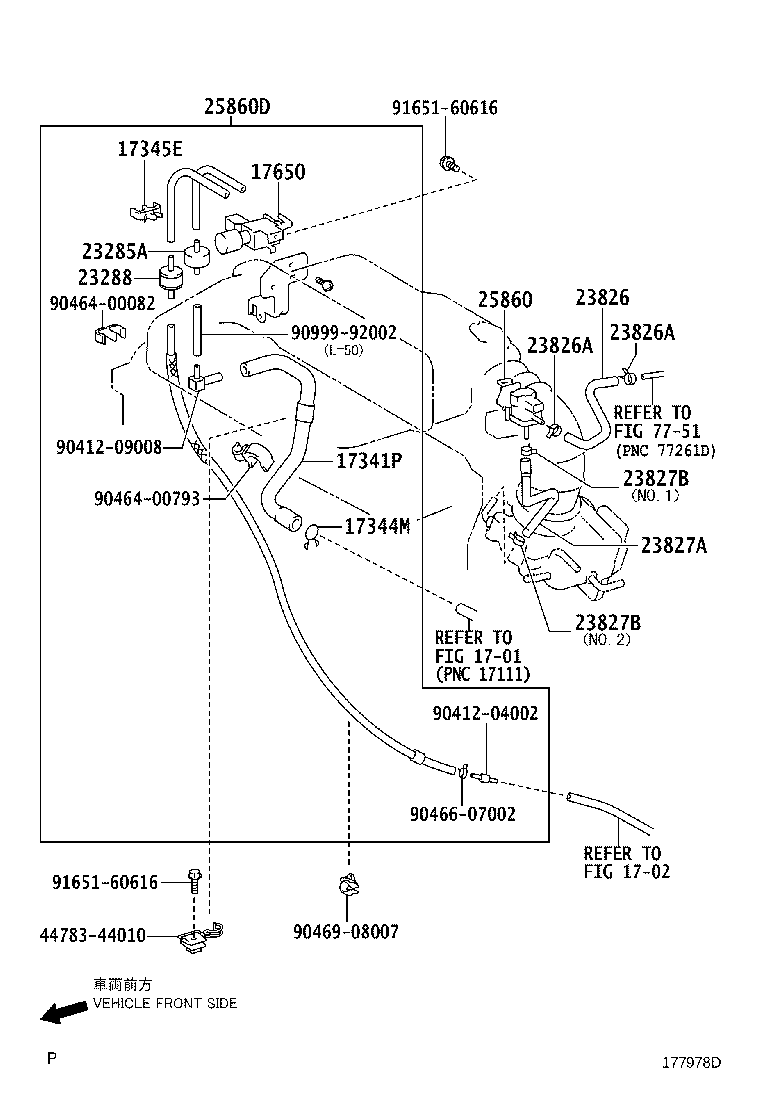

Figure 174969D 174969D 2006-06 → 2013-01 Figure 177978D 177978D 2013-01 → —

Part groups

PNCDescription
17341P Hose, Air
17344M Clip(FOR AIR HOSE, NO.4)
17345E Clamp OR Clip(FOR AIR HOSE, NO.5)
17650 Valve Assy, Vacuum Switching
23285A Valve, Check, NO.1
23288 Jet, NO.1
23826 Hose, Fuel Vapor Feed, NO.1
23826A Clip(FOR FUEL VAPOR FEED HOSE, NO.1)
23827A Hose, Fuel Vapor Feed, NO.2
23827B Clip(FOR FUEL VAPOR FEED HOSE, NO.2)
25860 Valve Assy, Vacuum Switching, NO.1
25860D Valve Assy, Vacuum Switching, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
