Toyota Estima Hybrid

2006-06 → 2019-10 · chassis AHR20 · catalogue 656150 · Japan

Supported model Data version 2020-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Radiator Grille

15 part groups · 4 illustrations

Illustrations

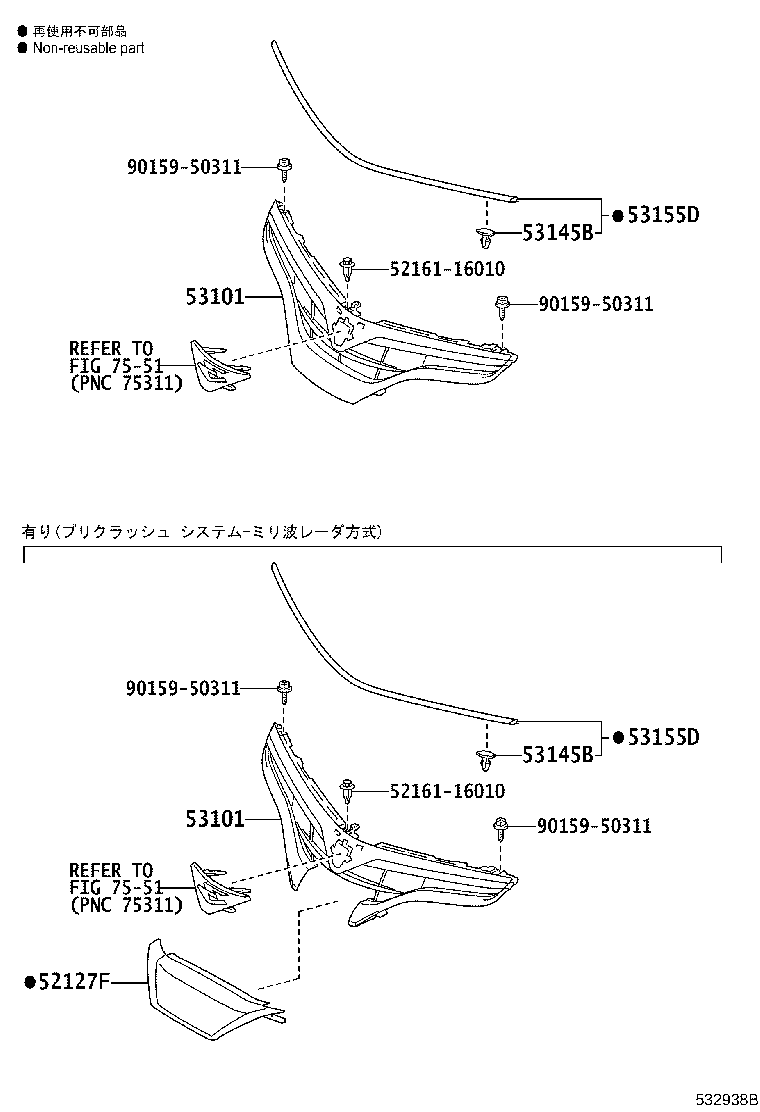

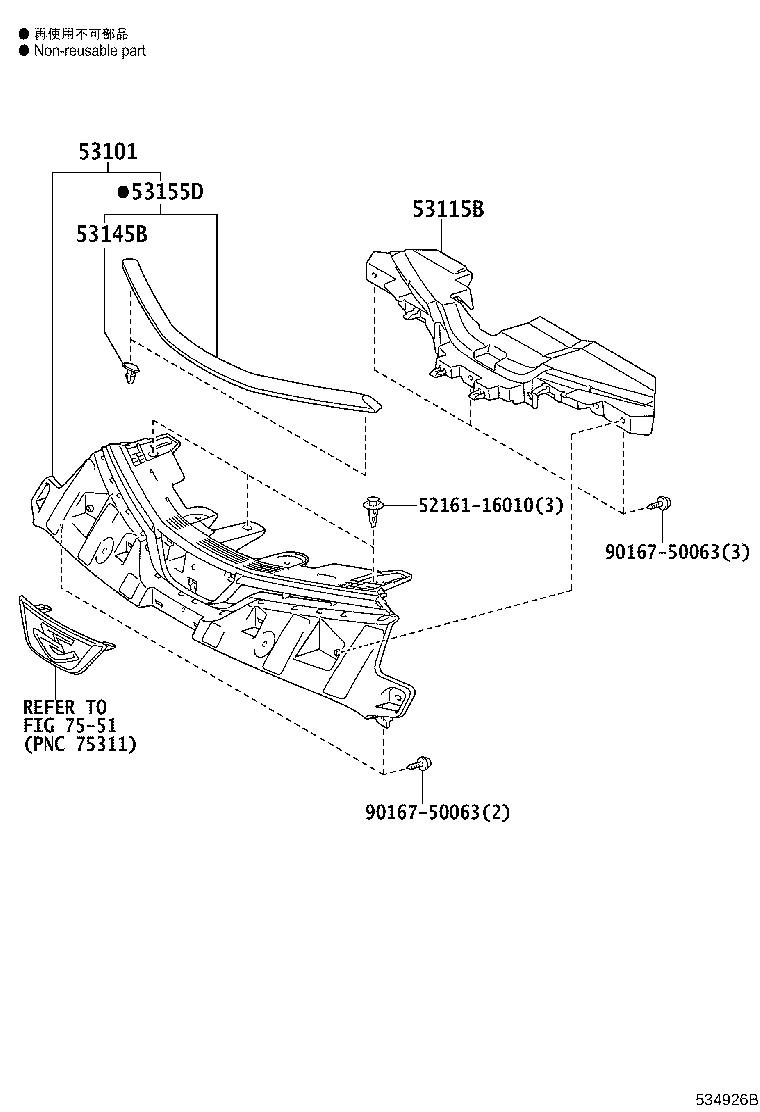

Figure 532253F 532253F 2006-06 → 2008-12 Figure 532938B 532938B 2008-12 → 2016-05 Figure 533778C 533778C 2012-04 → 2016-05 Figure 534926B 534926B 2016-05 → —

Part groups

PNCDescription
52116J Retainer, Front Bumper
52127F Cover, Front Bumper Hole
52161R Piece, Front Bumper
52711E Garnish, Front Bumper
53101 Grille Sub-assy, Radiator
53111 Grille, Radiator
53115B Bracket, Radiator Grille
53125A Moulding, Radiator Grille, Center RH
53126A Moulding, Radiator Grille, Center LH
53127B Moulding, Radiator Grille, NO.7
53128C Moulding, Radiator Grille, NO.8
53129B Moulding, Radiator Grille, NO.9
53145B Clip, Radiator Grille Garnish
53152A Guide, Radiator Grille Air
53155D Seal, Radiator Grille, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
