Toyota Estima Hybrid

2006-06 → 2019-10 · chassis AHR20 · catalogue 656150 · Japan

Supported model Data version 2020-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Console Box & Bracket

13 part groups · 2 illustrations

Illustrations

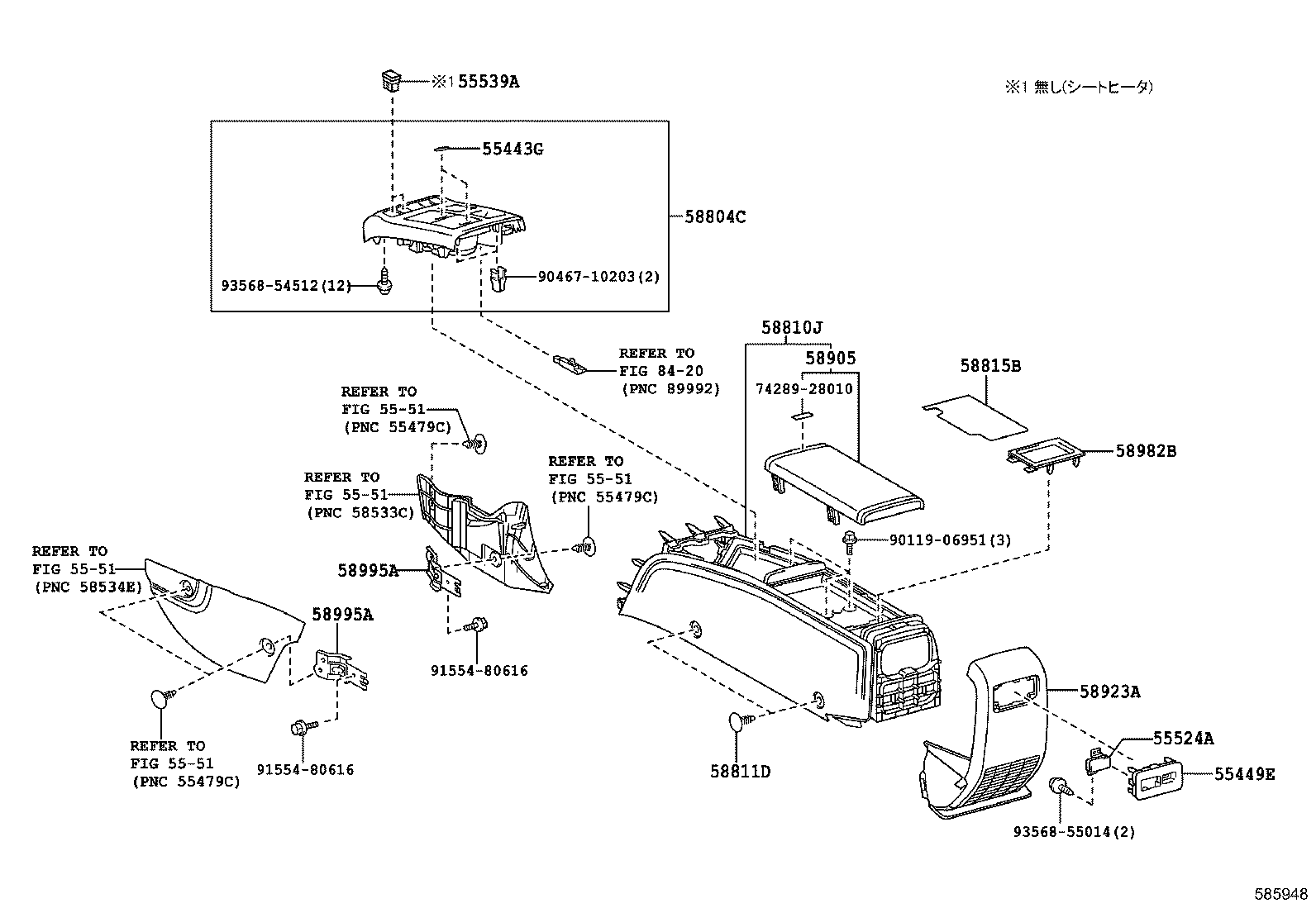

Figure 582707K 582707K 2006-06 → 2016-05 Figure 585948 585948 2016-05 → —

Part groups

PNCDescription
55443F Knob, Instrument Panel Box Door
55443G Knob, Instrument Panel Box Door
55449E Base, Switch
55524A Cover, Switch Base Hole
55539A Cover, Spare Switch Hole
58804C Insert Sub-assy, Console Box, Front
58810J Box Assy, Console
58811D Clip(FOR CONSOLE BOX)
58815B Carpet, Console Box
58905 Door Sub-assy, Console Compartment
58923A Panel, Console Rear End
58982B Retainer, Console Box, NO.3
58995A Bracket, Console Box Mounting, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
