Toyota Estima Hybrid

2006-06 → 2019-10 · chassis AHR20 · catalogue 656150 · Japan

Supported model Data version 2020-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Headlining & Silencer Pad

11 part groups · 2 illustrations

Illustrations

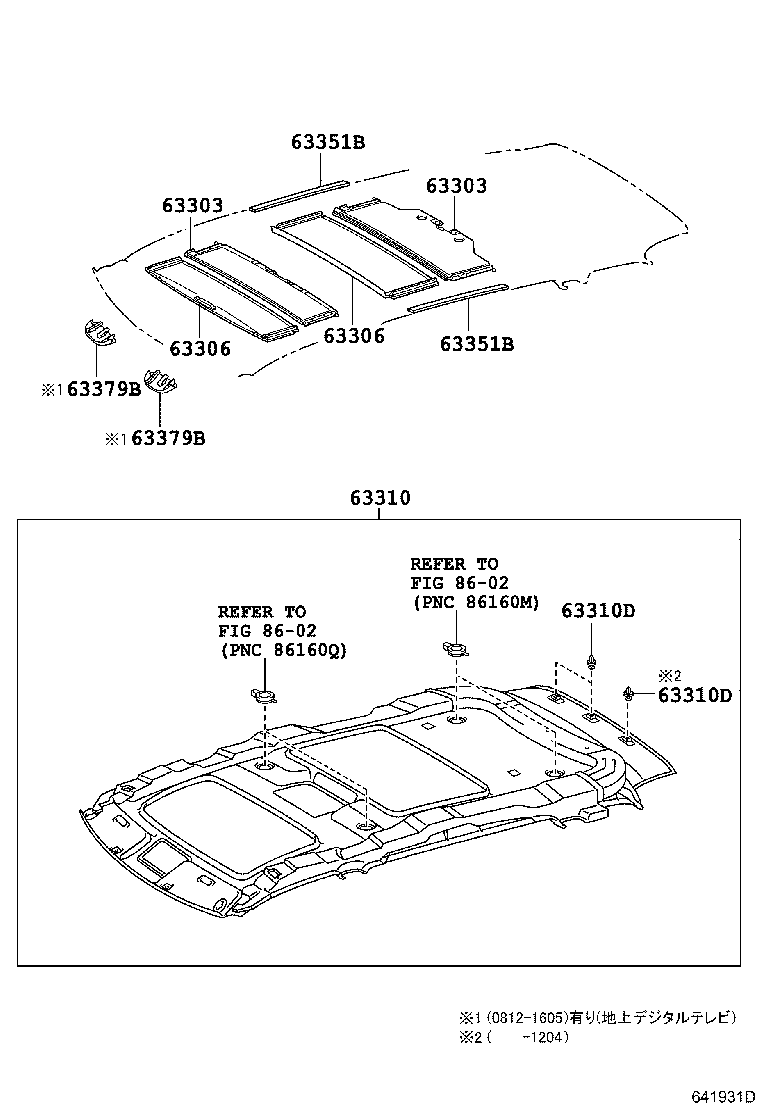

Figure 641930G 641930G 2006-06 → — Figure 641931D 641931D 2006-06 → —

Part groups

PNCDescription
63303 Trim Sub-assy, Sunshade, NO.2
63306 Trim Sub-assy, Sunshade
63310 Headlining Assy, Roof
63310D Clip, Roof Headlining
63341 Pad, Roof Silencer, NO.1
63342 Pad, Roof Silencer, NO.2
63343 Pad, Roof Silencer, NO.3
63344 Pad, Roof Silencer, NO.4
63351B Pad, Roof Headlining
63379B Cover, Roof Headlining Moulding End
63388A Cover, Roof Headlining Holder
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
