Toyota Estima Hybrid

2006-06 → 2019-10 · chassis AHR20 · catalogue 656150 · Japan

Supported model Data version 2020-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Fog Lamp

11 part groups · 4 illustrations

Illustrations

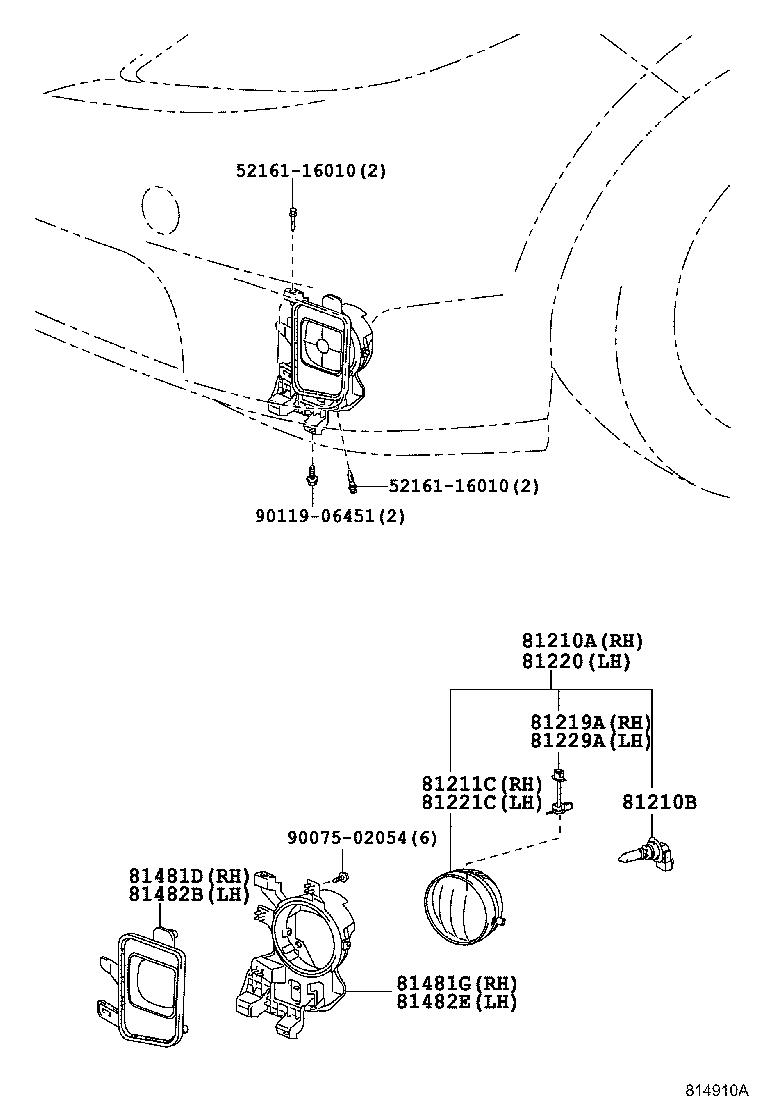

Figure 813800B 813800B 2006-06 → 2008-12 Figure 814910A 814910A 2008-12 → 2012-04 Figure 816185 816185 2012-04 → — Figure 816186 816186 2012-04 → —

Part groups

PNCDescription
81210A Lamp Assy, Fog, RH
81210B Bulb, Fog Lamp
81211C Lamp Unit, Fog Lamp, RH
81219A Bracket, Fog Lamp, RH
81220 Lamp Assy, Fog, LH
81221C Lamp Unit, Fog Lamp, LH
81229A Bracket, Fog Lamp, LH
81481D Cover, Fog Lamp, RH
81481G Bracket, Fog Lamp, RH
81482B Cover, Fog Lamp, LH
81482E Bracket, Fog Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
