Toyota Estima Hybrid
2006-06 → 2019-10 · chassis AHR20 · catalogue 656150 · Japan
Supported model
Data version 2020-01
Switch & Relay & Computer
128 part groups · 14 illustrations
Illustrations
Part groups

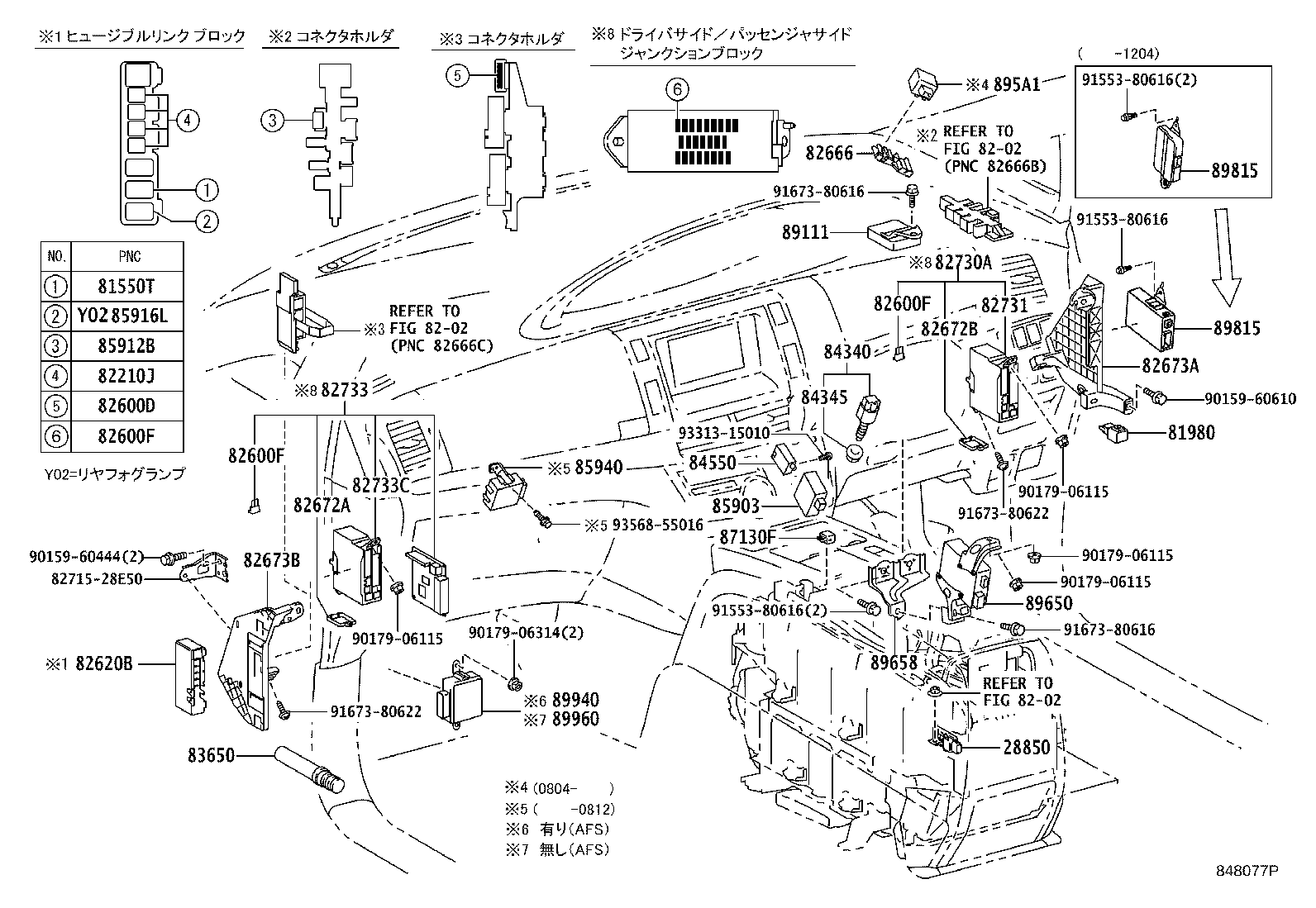

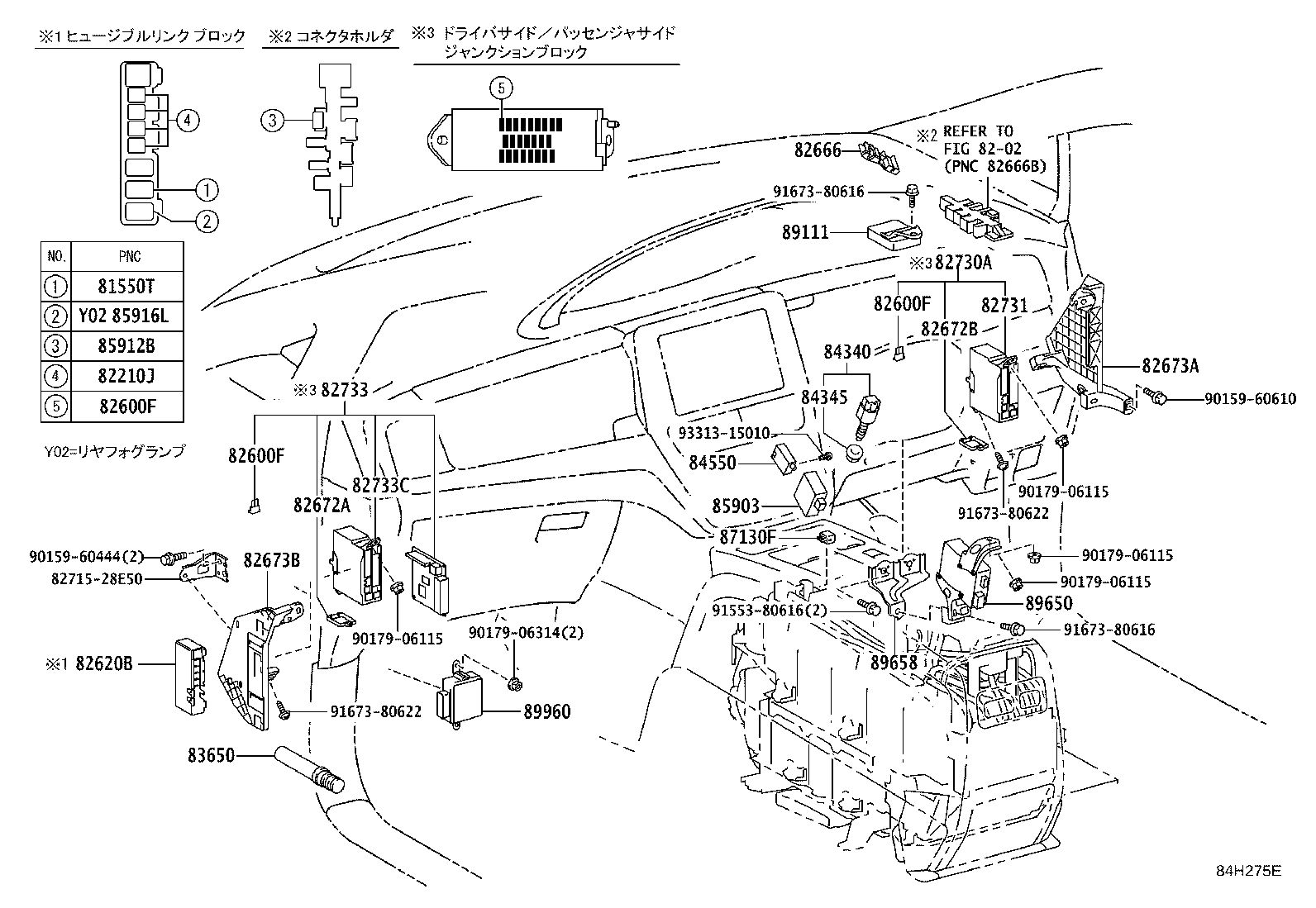

| PNC | Description |
|---|---|
| 28371C | Relay, Ignition, NO.2 |
| 28850 | Sensor Assy, Battery Current |
| 81550T | Relay, Back UP Lamp |
| 81980 | Flasher Assy, Turn Signal |
| 82210J | Fusible Link |
| 82210P | Engine Room Fusible Link |
| 82600D | Instrument Panel Fuse |
| 82600F | Fuse, Fuse Block |
| 82610A | Block Assy, Fuse |
| 82620A | Block Assy, Fusible Link |
| 82620B | Block Assy, Fusible Link |
| 82660C | Block Assy, Relay |
| 82662A | Cover, Relay Block, Upper, NO.1 |
| 82662B | Cover, Relay Block, Upper, NO.2 |
| 82662C | Cover, Relay Block, Upper, NO.3 |
| 82662E | Cover, Relay Block, Upper, NO.7 |
| 82663A | Cover, Relay Block, Lower, NO.2 |
| 82663B | Cover, Relay Block, Lower, NO.3 |
| 82663E | Cover, Relay Block, Lower, NO.7 |
| 82663F | Cover, Relay Block, Lower, NO.8 |
| 82666 | Holder, Connector |
| 82672A | Cover, Junction Block |
| 82672B | Cover, Junction Block |
| 82673A | Bracket, Junction Block, NO.1 |
| 82673B | Bracket, Junction Block, NO.2 |
| 82715 | Bracket,Wiring Harness Clamp |
| 82730A | Block Assy, Driver Side Junction |
| 82731 | Block, Driver Side Junction |
| 82733 | Block, Passenger Side Junction |
| 82733C | Block, Passenger Side Junction, W/O Body Computer |

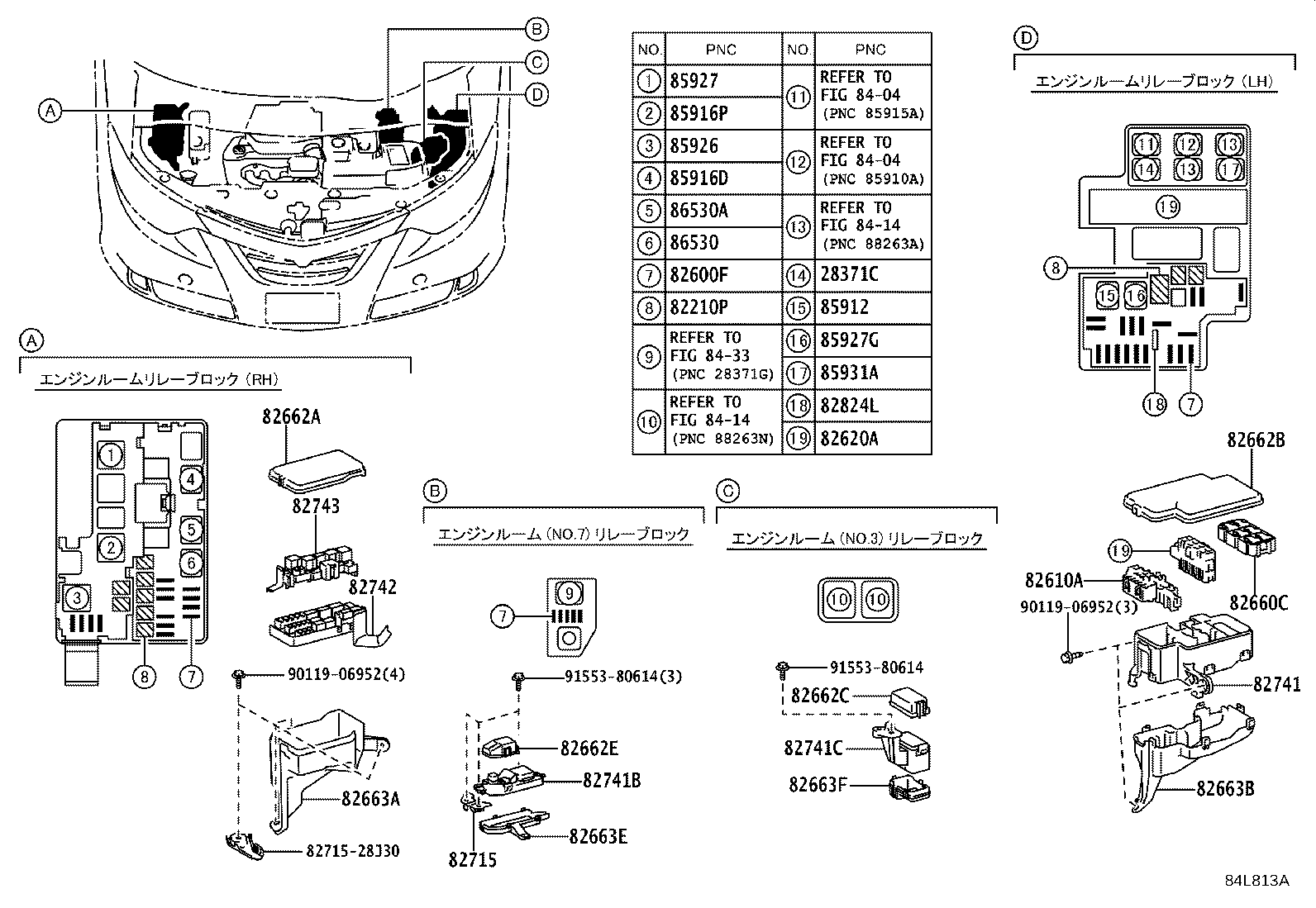

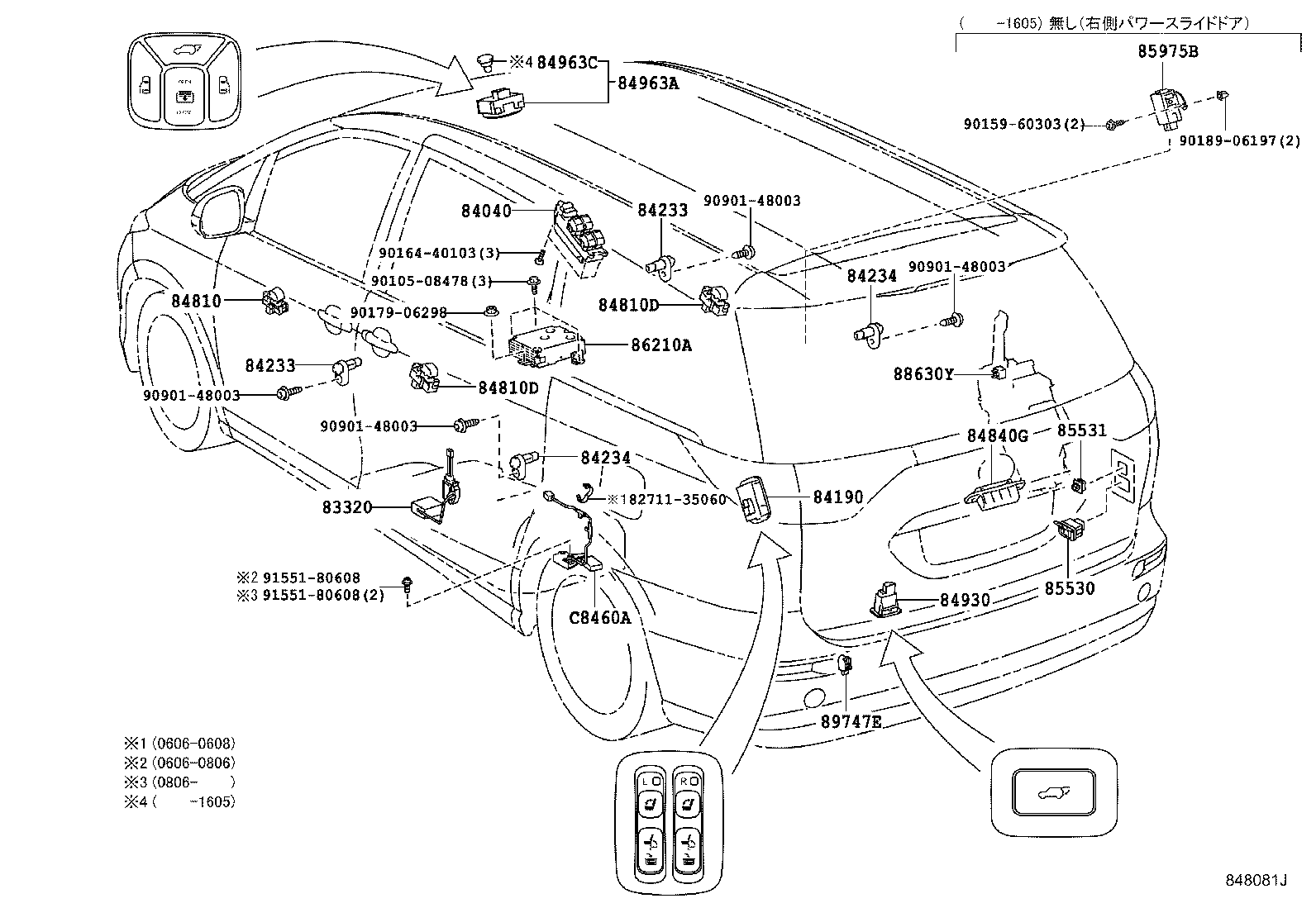

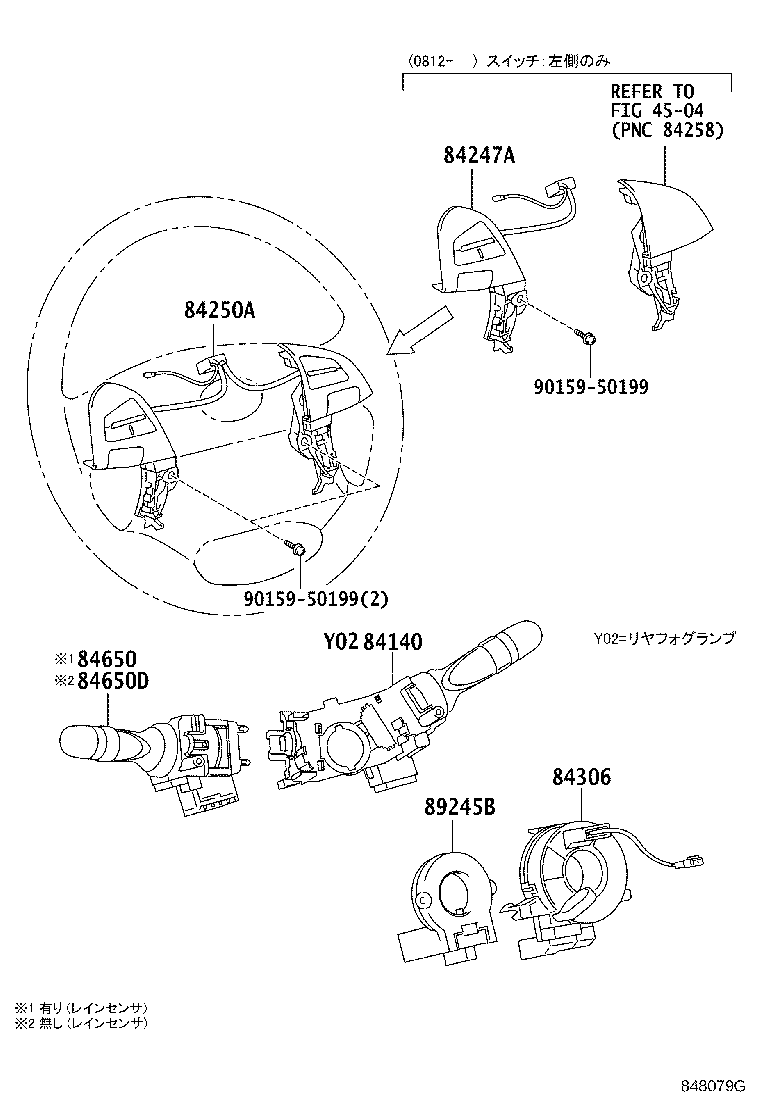

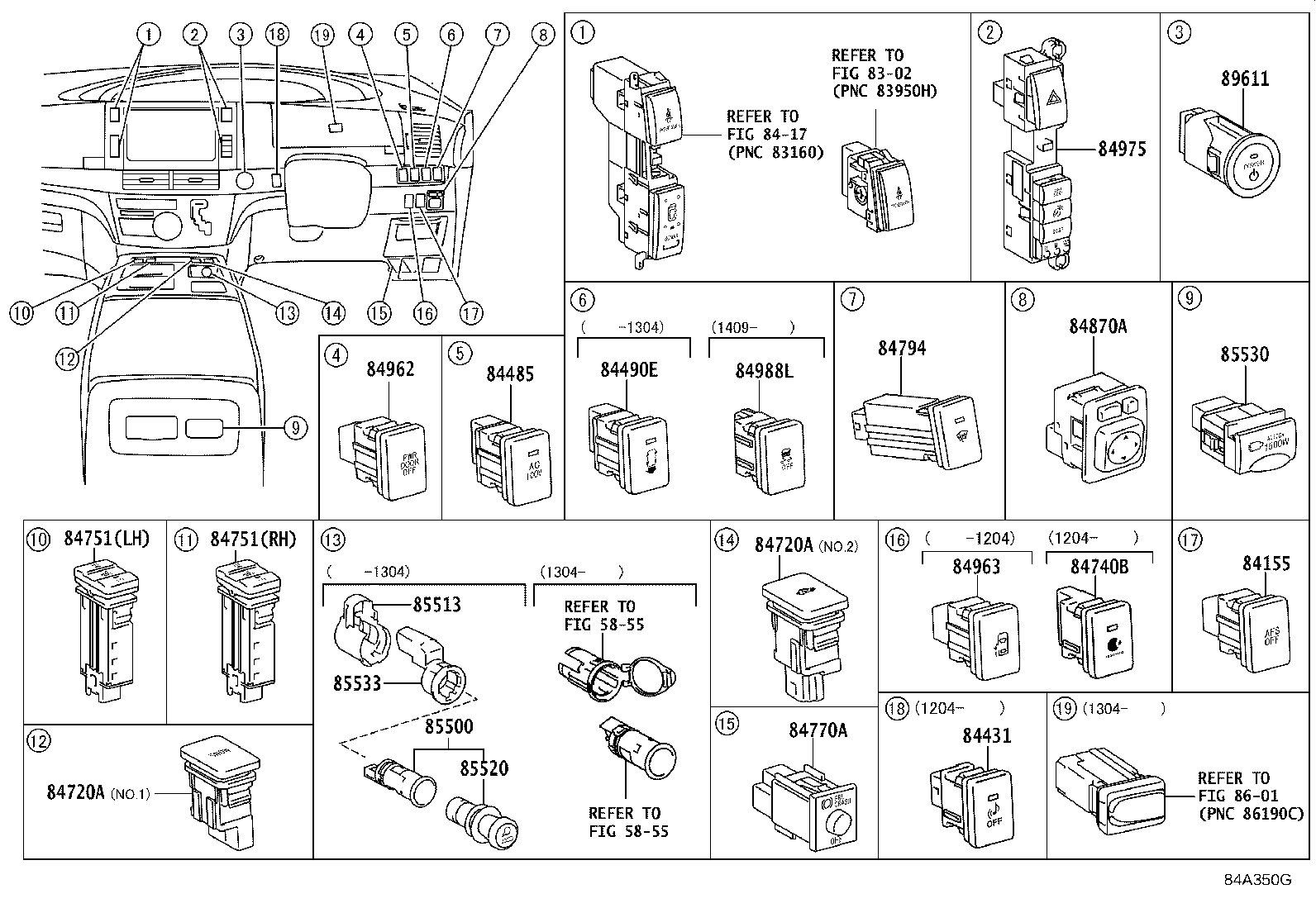

| 82741 | Block, Engine Room Relay |
| 82741B | Block, Engine Room Relay |
| 82741C | Block, Engine Room Relay |
| 82742 | Block, Engine Room Relay, NO.2 |
| 82743 | Block, Engine Room Relay, NO.3 |
| 82824L | Pin, Short |
| 83320 | Gage Assy, Fuel Sender |
| 83530 | Switch Assy, Oil Pressure (FOR ENGINE) |
| 83650 | Fusee |
| 84040 | Master Switch Assy,Multiplex Network |
| 84140 | Switch Assy, Headlamp Dimmer |
| 84155 | Switch, Headlamp Swivel Main |
| 84190 | Switch Assy, Fold Seat |
| 84233 | Switch Assy, Courtesy Lamp (FOR FRONT DOOR) |
| 84234 | Switch Assy, Courtesy Lamp (FOR REAR DOOR) |
| 84247A | Switch, Steering Pad, LH |

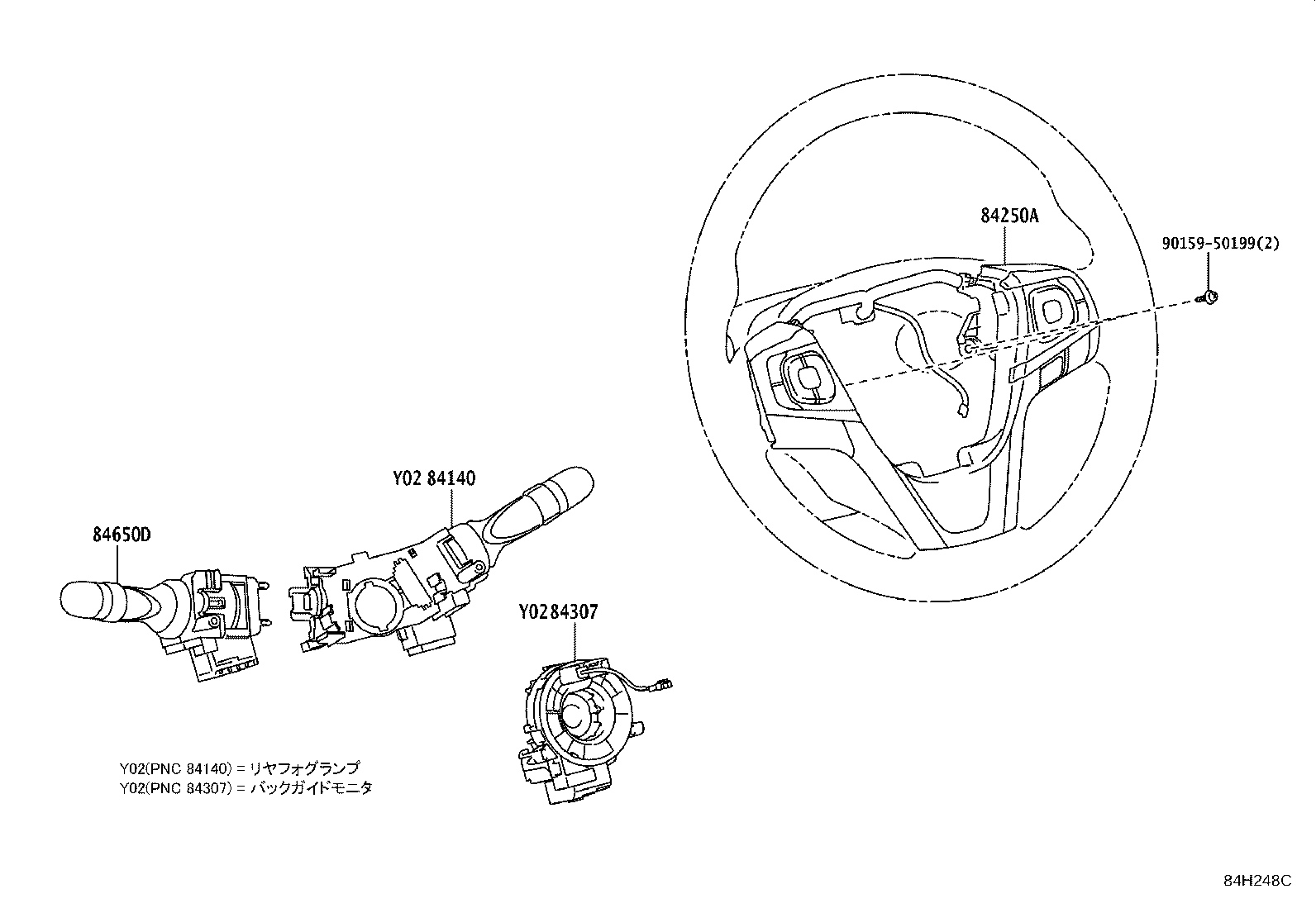

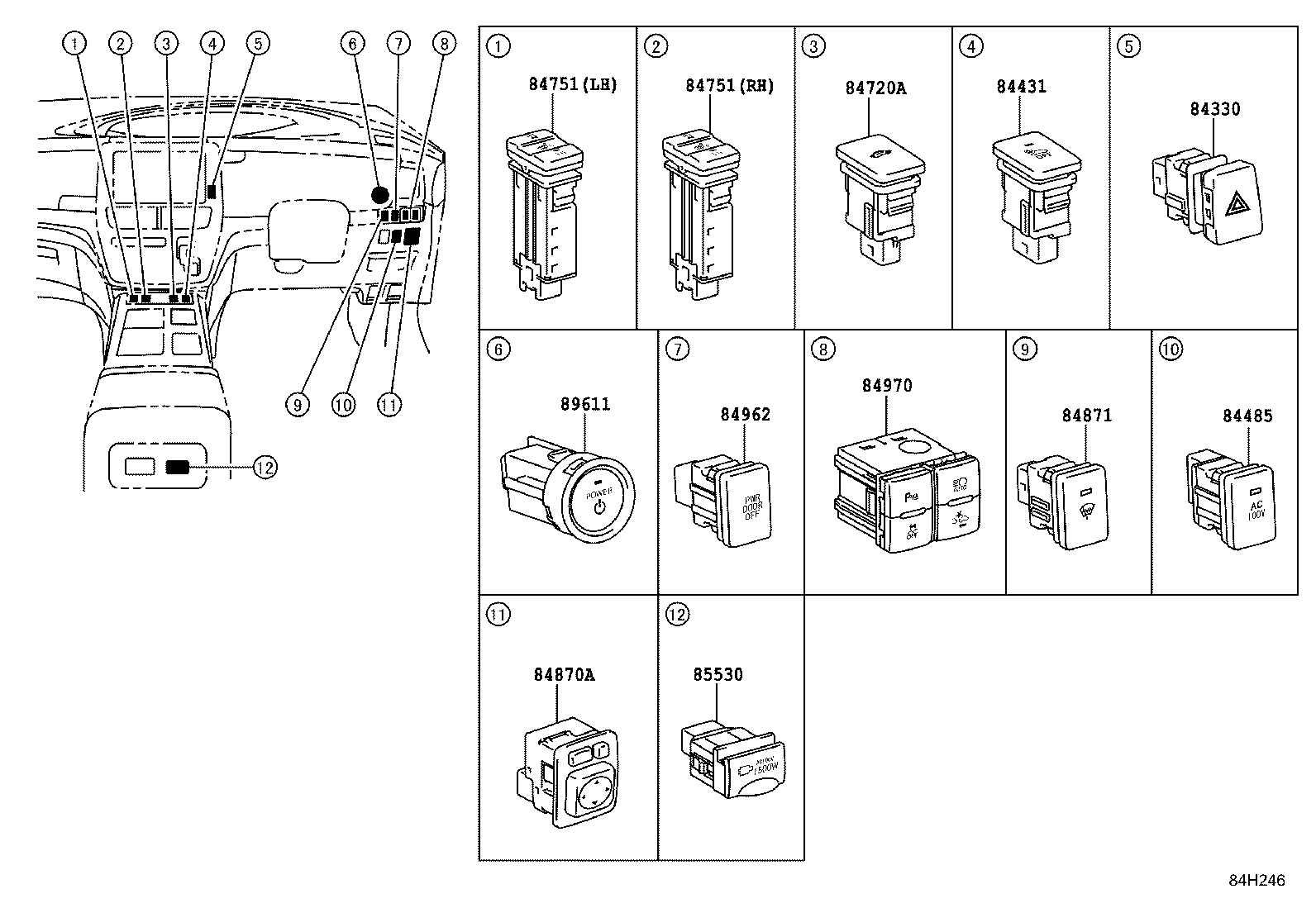

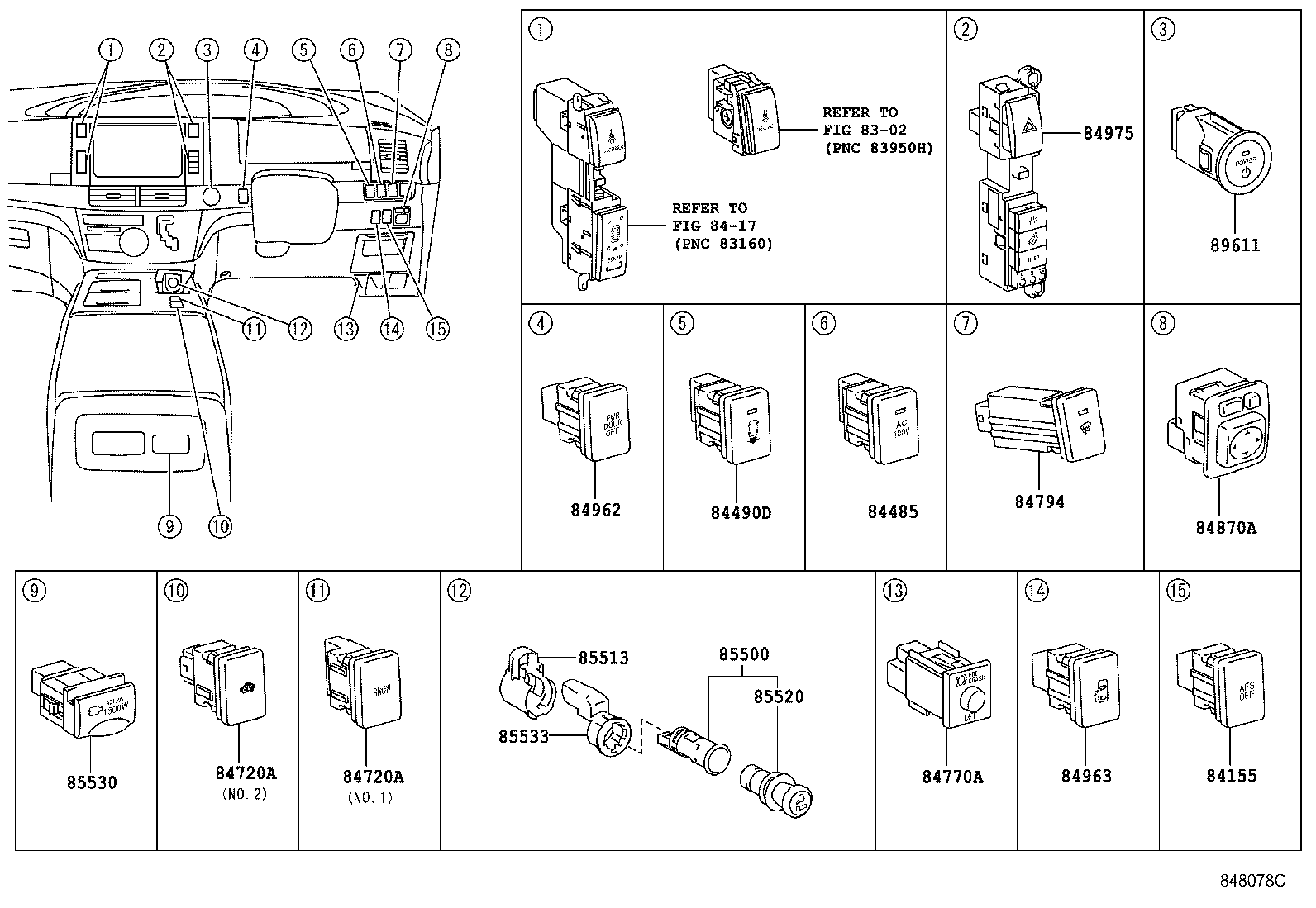

| 84250A | Switch Assy, Steering Pad |
| 84290 | Switch Assy, Limit |
| 84306 | Cable Sub-assy, Spiral |
| 84307 | Cable Sub-assy, Spiral W/Sensor |
| 84330 | Switch Assy, Hazard Warning Signal |
| 84340 | Switch Assy, Stop Lamp |
| 84345 | Adjuster, Stop Lamp Switch Mounting |
| 84431 | Switch, Vehicle Approaching Speaker |
| 84485 | Switch, Power Outlet(AC100V ACCESSORY SOCKET) |
| 84490D | Switch Assy, Ipa Main |
| 84490E | Switch Assy, Ipa Pre Support |
| 84550 | Switch Assy, Parking Brake |
| 84650 | Switch Assy, Windshield Wiper |
| 84650D | Switch Assy, Windshield Wiper (W/RELAY, WIPER CONTROL) |
| 84720A | Switch Assy, Pattern Select, NO.1 |
| 84740B | Switch Assy, Air Purifier |
| 84751 | Switch, Seat Heater |
| 84770A | Switch Assy, Pre-collision System Cancel |
| 84794 | Switch, FR Wiper Deicer |
| 84810 | Switch Assy, Power Window Regulator |
| 84810D | Switch Assy, Power Window Regulator, Rear |
| 84840G | Switch Assy, Back Door Opener |
| 84870A | Switch Assy, Outer Mirror |
| 84871 | Switch Assy, Outer Mirror Heater |

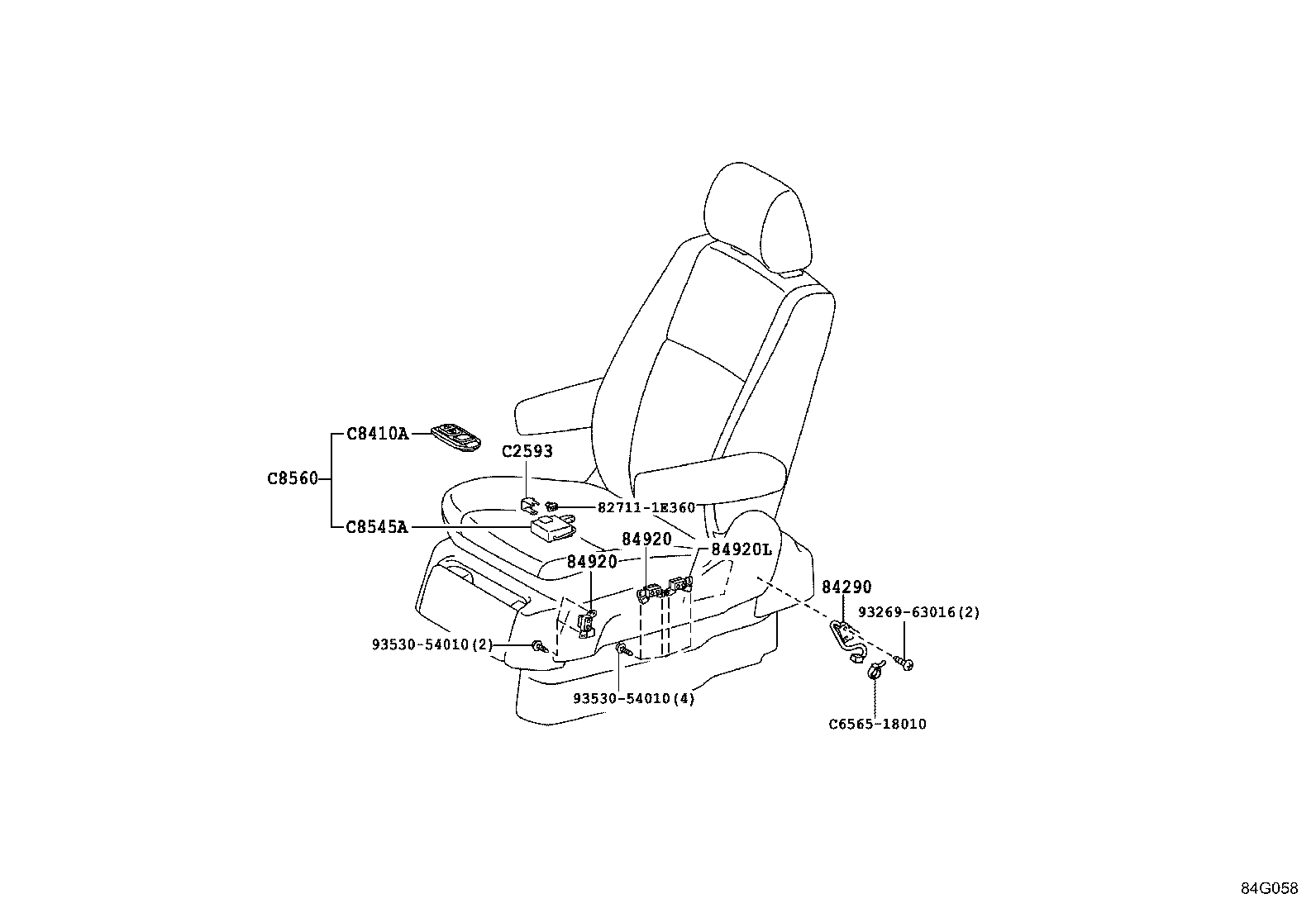

| 84920 | Switch Assy, Power Seat |
| 84920L | Switch Assy, Power Seat, NO.2 |
| 84921A | Knob, Power Seat Switch (FOR RECLINING) |
| 84921B | Knob, Power Seat Switch (FOR SLIDE & VERTICAL) |
| 84922 | Switch, Front Power Seat |
| 84923 | Switch, Rear Power Seat |
| 84930 | Switch Assy, Door Control |
| 84962 | Switch, Power Slide Door Main |
| 84963 | Switch, Power Slide Door Control, NO.1 |
| 84963A | Switch, Power Slide Door Control, NO.2 |
| 84963C | Bulb, Power Slide Control Switch, NO.2 |
| 84970 | Switch Assy, Combination |
| 84975 | Switch, Trip |
| 84988L | Switch, Vsc Off |
| 85500 | Lighter Assy, Cigarette |
| 85513 | Cover, Cigarette Lighter |
| 85520 | Knob And Element Assy, Cigarette Lighter |
| 85530 | Socket Assy, Power Outlet, NO.1 |
| 85531 | Socket, Power Outlet |
| 85533 | Lens, Cigarette Lighter Indicator |
| 85903 | Computer Sub-assy, Shift Lock Control |
| 85912 | Relay, Defogger |
| 85912B | Relay, Defogger(FOR FRONT WINDOW) |
| 85916D | Relay, Fog Lamp |
| 85916L | Relay, Rear Fog Lamp |
| 85916P | Relay, Headlamp |
| 85926 | Relay, Headlamp Dimmer |
| 85927 | Relay, Cooling Fan |
| 85927G | Relay, Air Conditioner Water Pump |
| 85931A | Relay, Brake Lamp |
| 85940 | Relay Assy, Windshield Wiper |
| 85975B | Relay, Slide Door Closer, RH |
| 85999H | Bracket, Relay |
| 86210A | Inverter Assy, Voltage |
| 86530 | Relay Assy, Horn |
| 86530A | Relay, Horn |
| 87130F | Relay, Battery Blower, NO.1 |
| 88630Y | Relay, Rear Cooler |
| 89111 | Computer, Network Gateway |
| 89245B | Sensor, Steering |

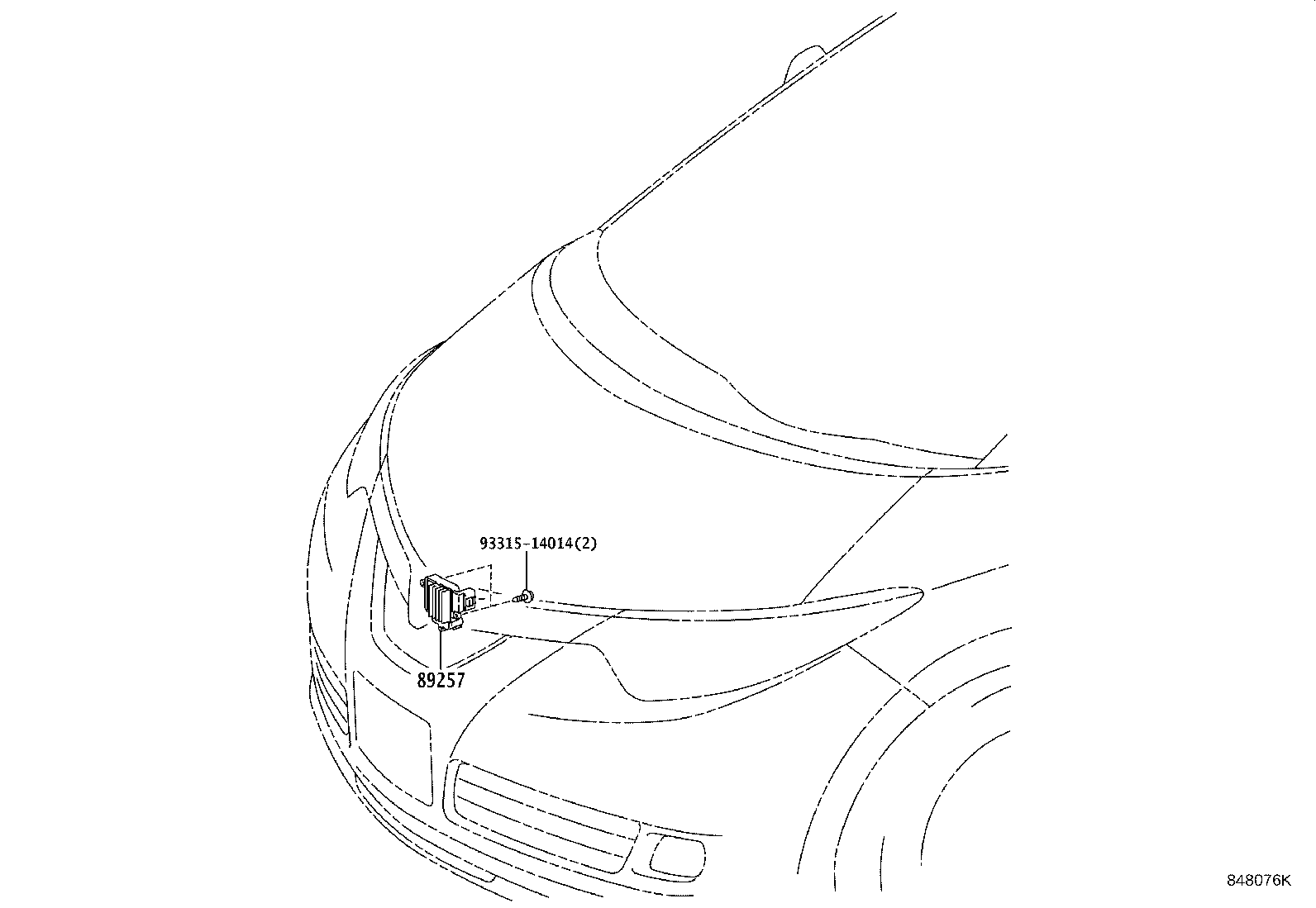

| 89257 | Computer, Cooling Fan |
| 89465 | Sensor, Oxygen |
| 89467B | Sensor, Air Fuel Ratio |
| 895A1 | Relay, Stop Lamp Control |
| 89611 | Switch, Push Start |
| 89615 | Sensor, Knock Control |
| 89650 | Computer Assy, Power Steering |
| 89658 | Bracket, Power Steering Computer |
| 89715 | Computer, Fold Seat Control |
| 89747E | Buzzer, Power Back Door Warning |
| 89815 | Computer, Seat Belt Control |
| 89940 | Computer Assy, Headlamp Swivel |
| 89960 | Computer Assy, Headlamp Leveling |
| C2593 | Bracket, Wireless Box, FR |
| C8410A | Switch Assy, Power Lift Control |
| C8460A | Switch Assy, Limit, LH NO.2 |
| C8545A | Relay, Power Lift Control |
| C8560 | Relay Assy, Lifter |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
