Toyota Estima Hybrid

2006-06 → 2019-10 · chassis AHR20 · catalogue 656150 · Japan

Supported model Data version 2020-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Abs & Vsc

17 part groups · 3 illustrations

Illustrations

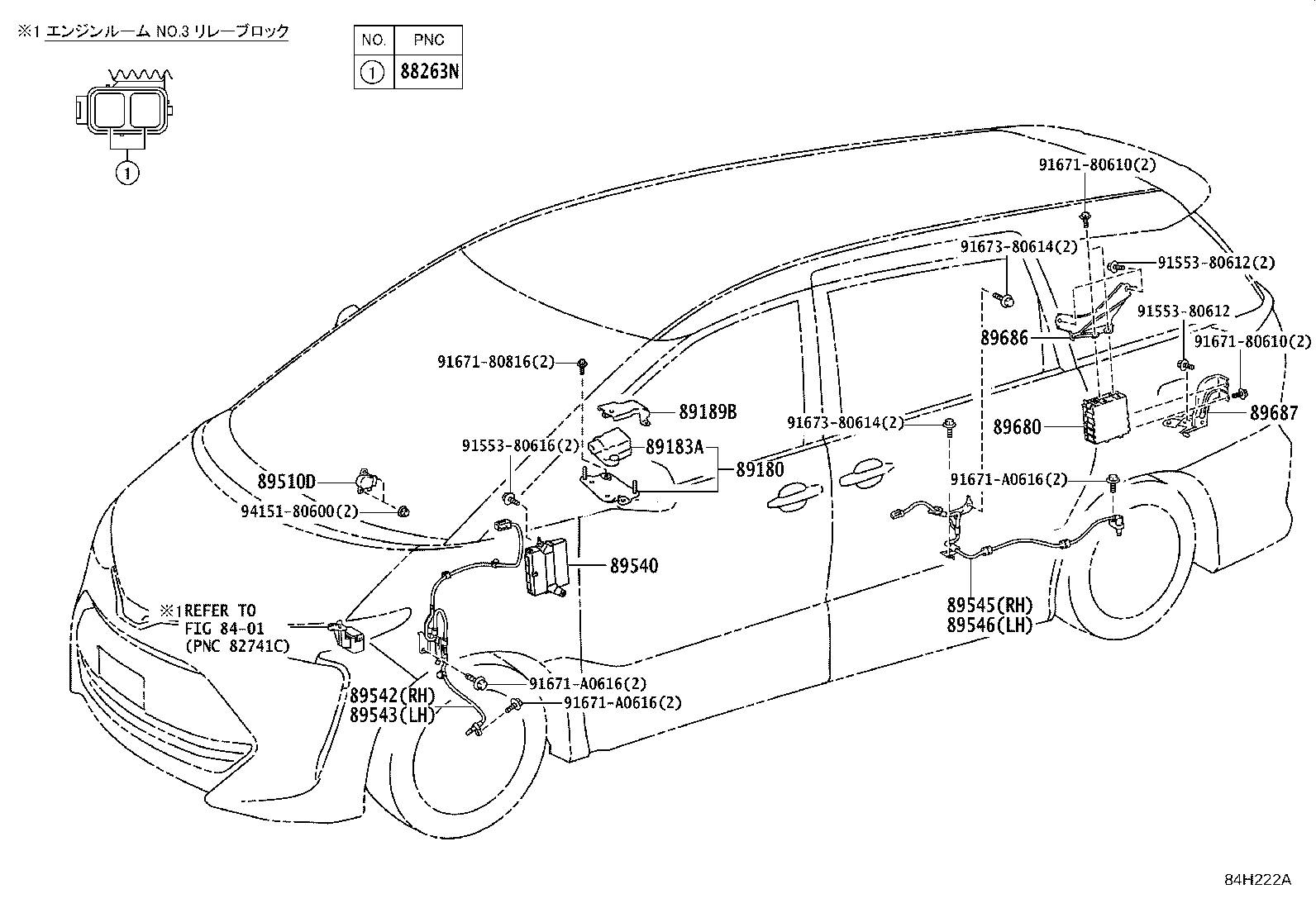

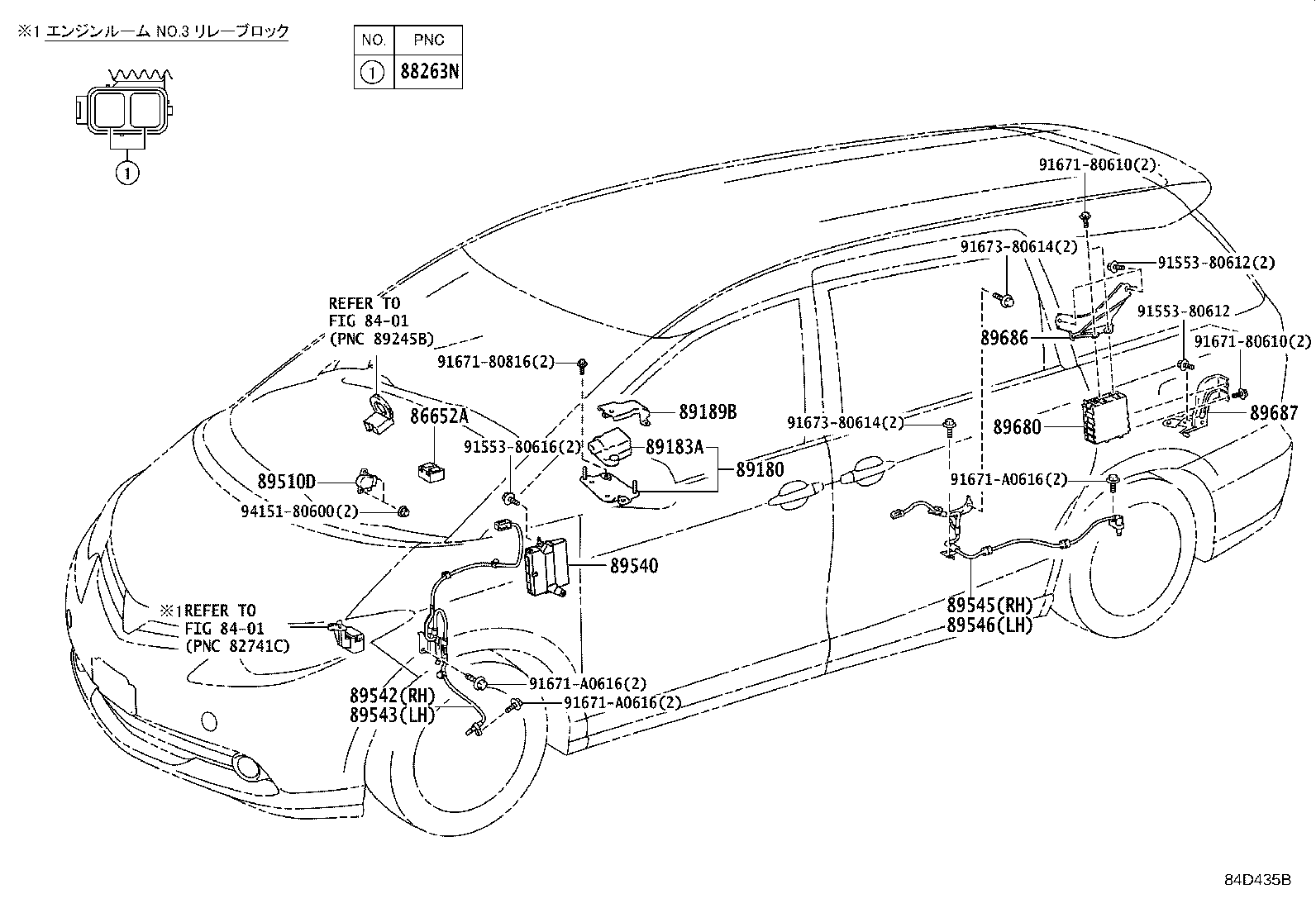

Figure 848049F 848049F 2006-06 → 2012-04 Figure 84D435B 84D435B 2012-04 → 2016-05 Figure 84H222A 84H222A 2016-05 → —

Part groups

PNCDescription
86652A Buzzer Assy, Skid Control
88263A Relay, Skid Control
88263N Relay, Abs Motor
88263P Relay, Stop Lamp Control
89180 Sensor Assy, Yawrate
89183A Sensor, Yawrate
89189B Bracket, Yawrate Sensor
89510D Sensor Assy, Brake Pedal Stroke
89540 Computer Assy, Skid Control
89541 Computer, Skid Control
89542 Sensor, Speed, Front RH
89543 Sensor, Speed, Front LH
89545 Sensor, Speed, Rear RH
89546 Sensor, Speed, Rear LH
89680 Supply Assy, Brake Control Power
89686 Bracket, Brake Control Power Supply, NO.1
89687 Bracket, Brake Control Power Supply, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
