Toyota Estima Hybrid
2006-06 → 2019-10 · chassis AHR20 · catalogue 656150 · Japan
Supported model
Data version 2020-01

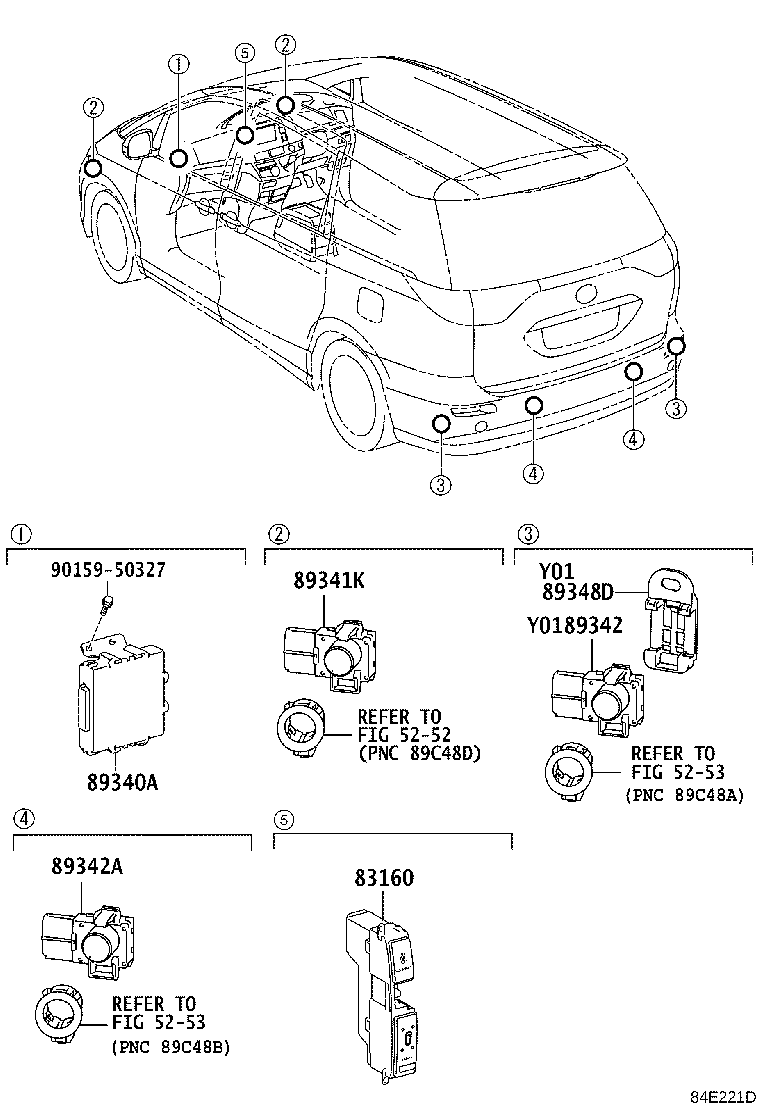

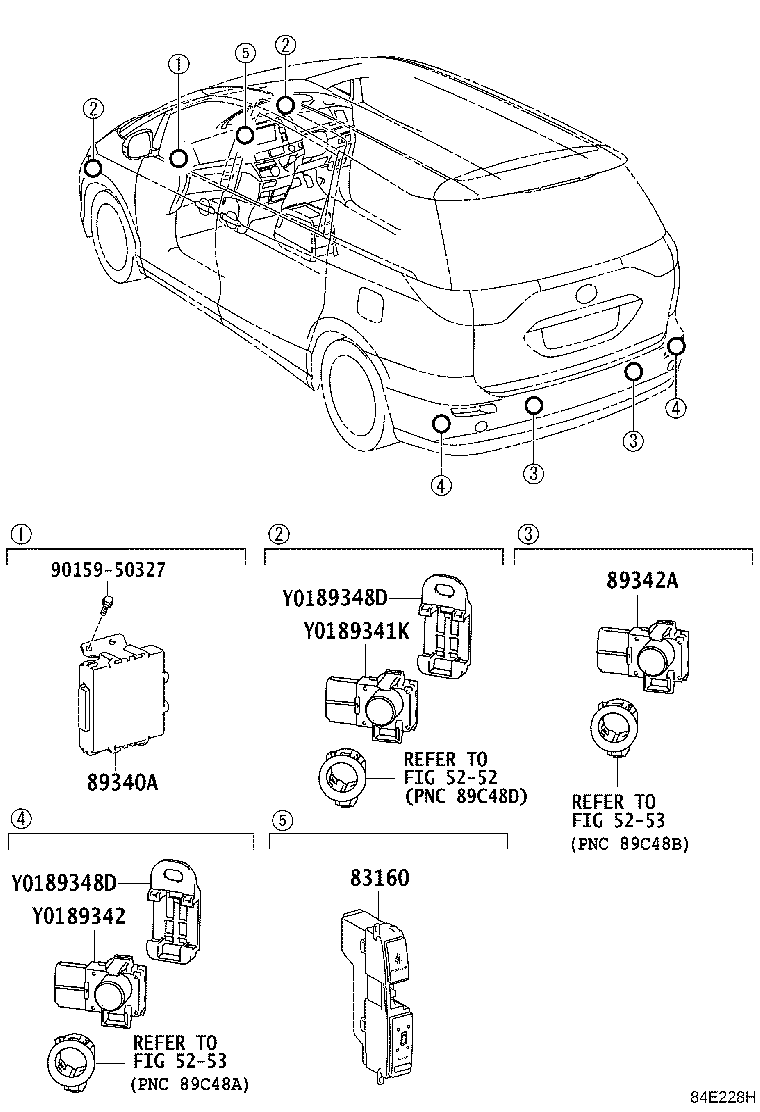

Clearance & Back Sonar
9 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 83160 | Indicator Assy, Clearance Warning |
| 89340A | Computer Assy, Clearance Warning |
| 89341A | Sensor, Ultrasonic, NO.1 |
| 89341C | Sensor, Ultrasonic, NO.3 |
| 89341K | Sensor, Ultrasonic, Front Corner |
| 89342 | Sensor, Ultrasonic, Rear Corner |
| 89342A | Sensor, Ultrasonic, Rear Center |
| 89343C | Buzzer, Clearance Warning, NO.1 |
| 89348D | Clip, Ultrasonic Sensor |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
