Toyota Estima Hybrid

2006-06 → 2019-10 · chassis AHR20 · catalogue 656150 · Japan

Supported model Data version 2020-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

22 part groups · 4 illustrations

Illustrations

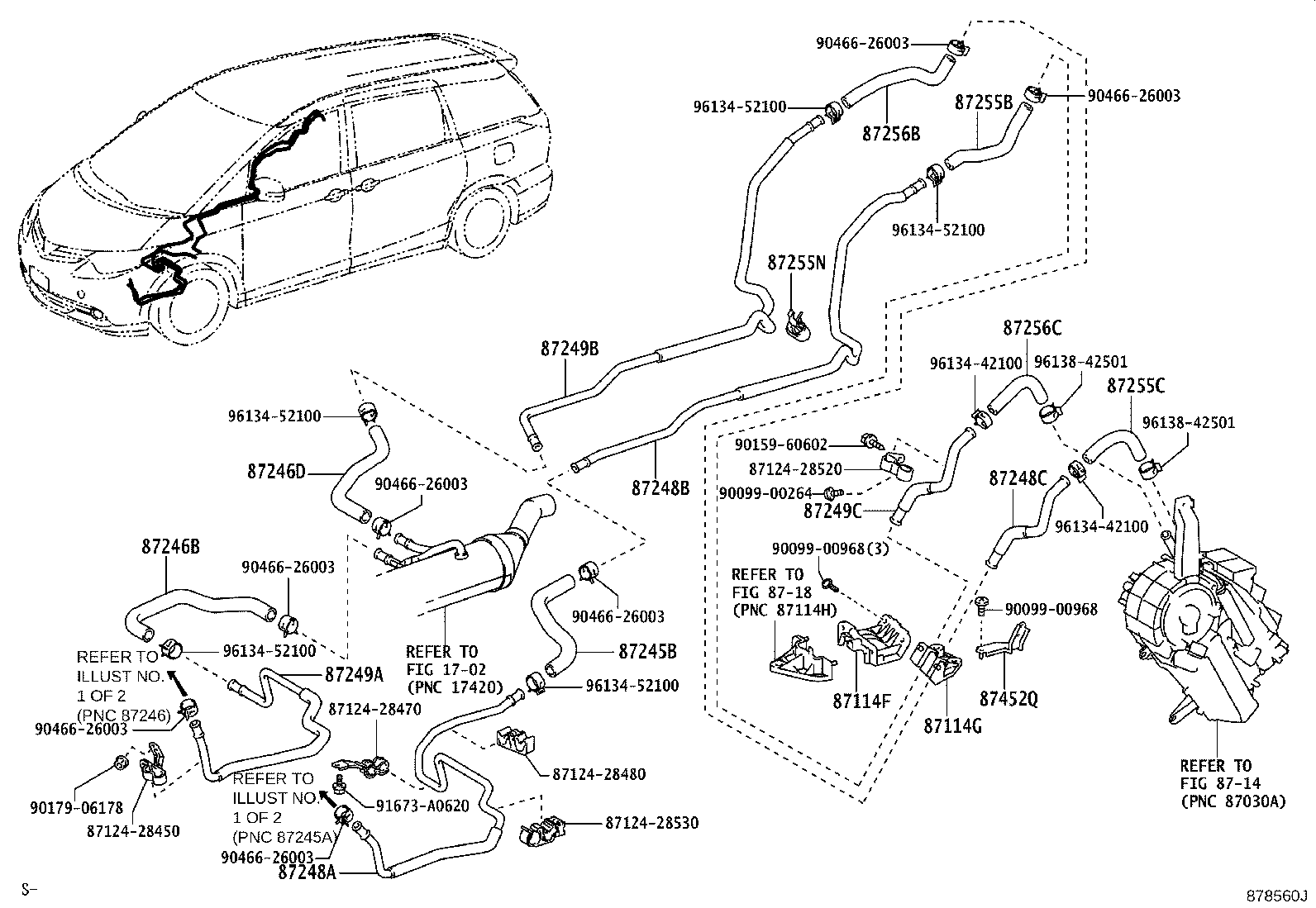

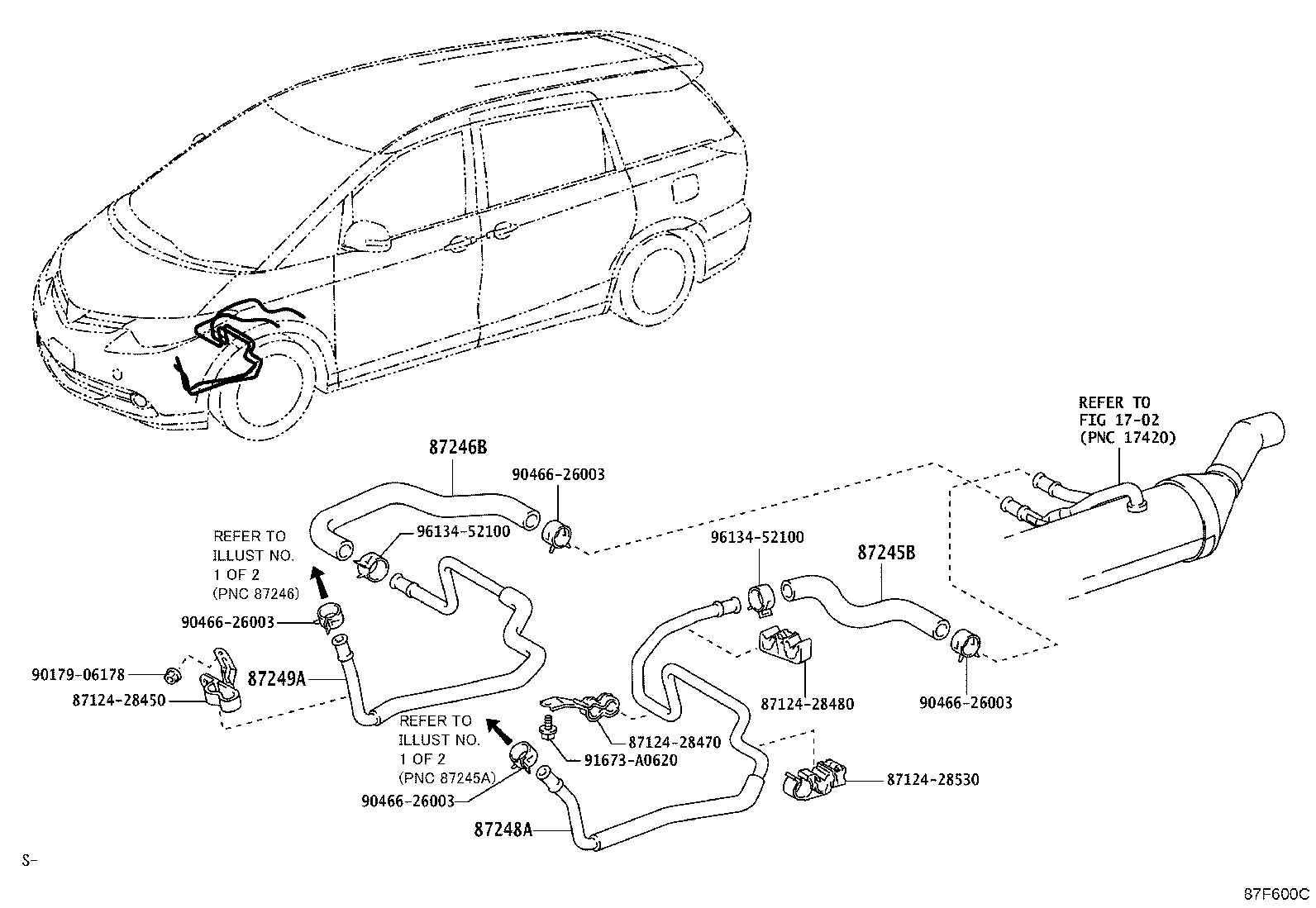

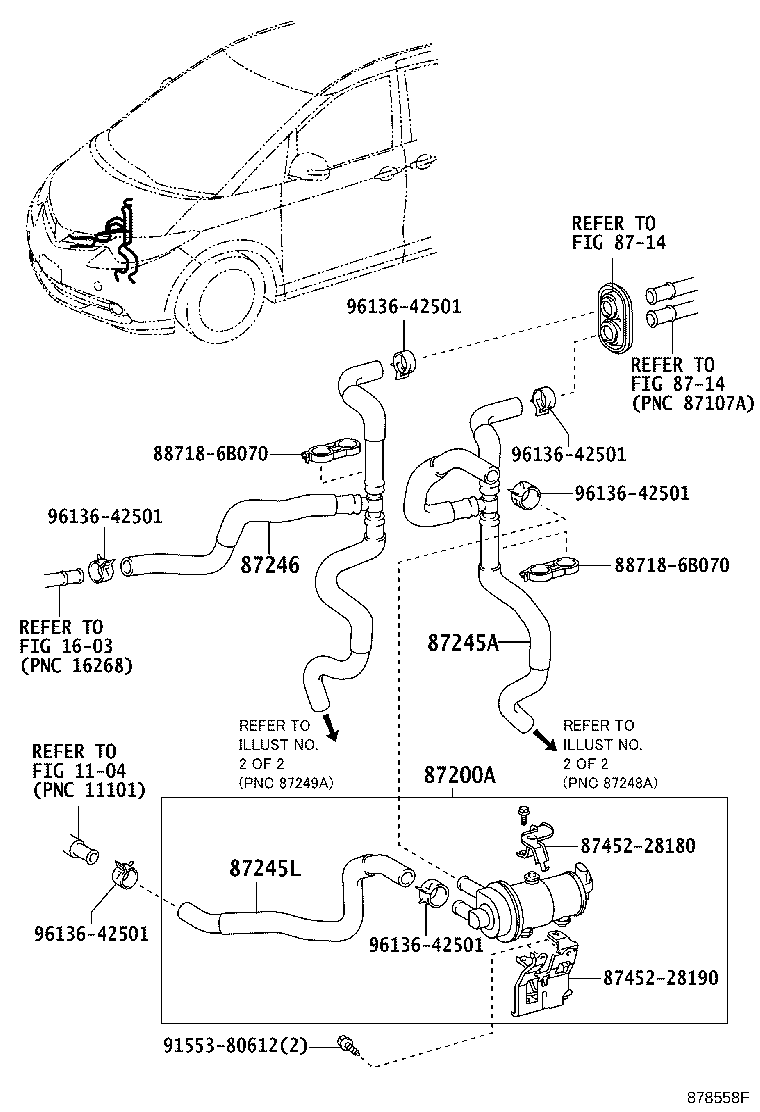

Figure 878559J 878559J 2006-06 → — Figure 878558F 878558F 2006-06 → — Figure 87F600C 87F600C 2006-06 → — Figure 878560J 878560J 2006-06 → —

Part groups

PNCDescription
87114F Cover, Heater, NO.2
87114G Cover, Heater, NO.3
87200A Pump Assy, Water(FOR HEATER)
87245A Hose, Heater Water, Inlet A
87245B Hose, Heater Water, Inlet B
87245L Hose, Heater Water, L
87246 Hose, Heater Water, Outlet
87246B Hose, Heater Water, Outlet B
87246C Hose, Heater Water, Outlet C
87246D Hose, Heater Water, Outlet D
87248A Pipe, Heater Water Inlet, A
87248B Pipe, Heater Water Inlet, B
87248C Pipe, Heater Water Inlet, C
87249A Pipe, Heater Water Outlet, A
87249B Pipe, Heater Water Outlet, B
87249C Pipe, Heater Water Outlet, C
87255B Hose, Rear Heater Water Inlet, B
87255C Hose, Rear Heater Water Inlet, C
87255N Pipe, Heater Protector, NO.1
87256B Hose, Rear Heater Water Outlet, B
87256C Hose, Rear Heater Water Outlet, C
87452Q Bracket, Heater, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
