Toyota Blizzard

1980-03 → 1984-04 · chassis LD10 · catalogue 661110 · Japan

Discontinued model Data version 1984-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Camshaft & Valve

23 part groups · 2 illustrations

Illustrations

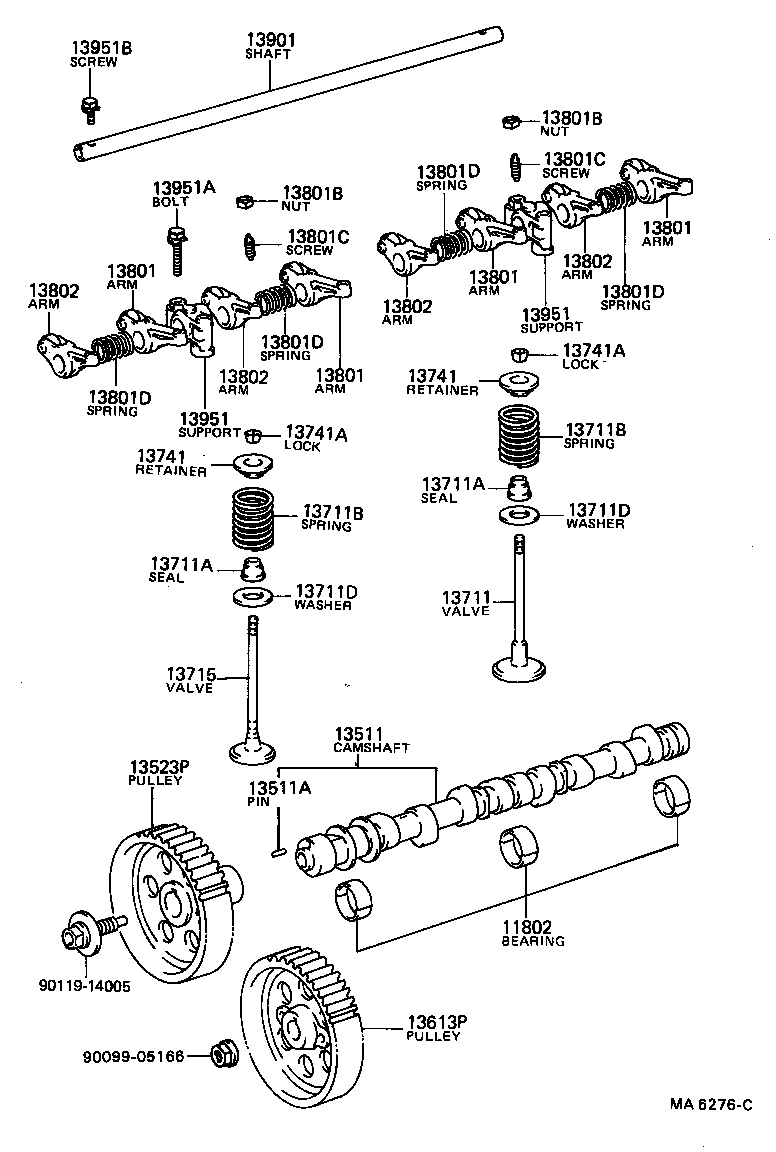

Figure MA3069J MA3069J 1980-03 → 1983-08 Figure MA6276C MA6276C 1983-08 → —

Part groups

PNCDescription
11802 Bearing Set, Camshaft
13511 Camshaft
13511A Pin, Straight(FOR CAMSHAFT KNOCK)
13523A Key, Woodruff(FOR TIMING GEAR)
13523B Washer, Plate(FOR TIMING GEAR)
13523P Pulley, Camshaft Timing
13613P Pulley, Injection Pump Drive
13711 Valve, Intake
13711A Seal OR Ring, O(FOR VALVE STEM OIL)
13711B Spring, Compression(FOR INNER)
13711D Washer, Plate(FOR VALVE SPRING SEAT)
13715 Valve, Exhaust
13741 Retainer, Valve Spring
13741A Lock, Valve Spring Retainer
13801 Arm Sub-assy, Valve Rocker, NO.1
13801B Nut, Hexagon(FOR VALVE ADJUSTING)
13801C Screw, Valve Adjusting
13801D Spring, Compression(FOR ROCKER ARM)
13802 Arm Sub-assy, Valve Rocker, NO.2
13901 Shaft Sub-assy, Valve Rocker, NO.1
13951 Support, Valve Rocker, NO.1
13951A Bolt(FOR ROCKER SUPPORT SET)
13951B Screw OR Bolt(FOR VALVE ROCKER SHAFT LOCK)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
