Toyota Blizzard

1980-03 → 1984-04 · chassis LD10 · catalogue 661110 · Japan

Discontinued model Data version 1984-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Exhaust Pipe

17 part groups · 2 illustrations

Illustrations

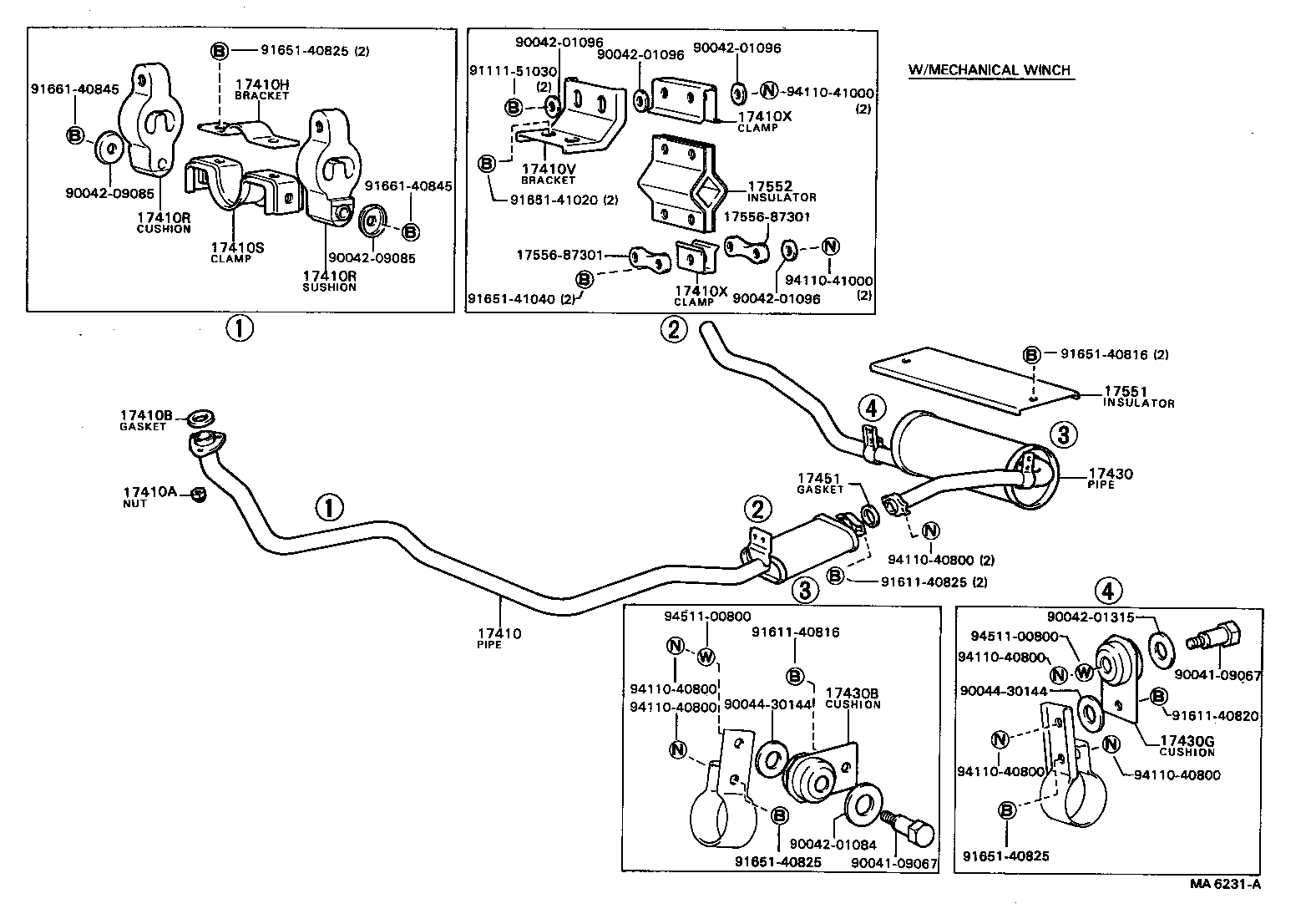

Figure MA4592E MA4592E 1980-03 → — Figure MA6231A MA6231A 1982-10 → —

Part groups

PNCDescription
17410 Pipe Assy, Exhaust, Front
17410A Nut, Exhaust Pipe Set Stud Bolt
17410B Gasket, Exhaust Pipe
17410H Bracket, Exhaust Pipe Front (FOR CENTER)
17410R Cushion, Exhaust Pipe Front (FOR CENTER)
17410S Clamp NO.1, Exhaust Pipe Front (FOR CENTER)
17410V Bracket, Exhaust Pipe Front (FOR REAR)
17410X Clamp NO.1, Exhaust Pipe Front (FOR REAR)
17420 Pipe Assy, Exhaust, Center
17420F Bracket, Exhaust Pipe, Center
17420H Clamp NO.1, Exhaust Pipe Center, Center
17430 Pipe Assy, Exhaust, Tail
17430B Cushion, Exhaust Tailpipe(FOR FRONT)
17430G Cushion, Exhaust Tailpipe(FOR CENTER)
17451 Gasket, Exhaust Pipe
17551 Insulator, Exhaust Pipe Heat, NO.1
17552 Insulator, Exhaust Pipe Heat, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
