Toyota Blizzard

1980-03 → 1984-04 · chassis LD10 · catalogue 661110 · Japan

Discontinued model Data version 1984-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transaxle OR Transmission Assy & Gasket Kit (MTM)

3 part groups · 2 illustrations

Illustrations

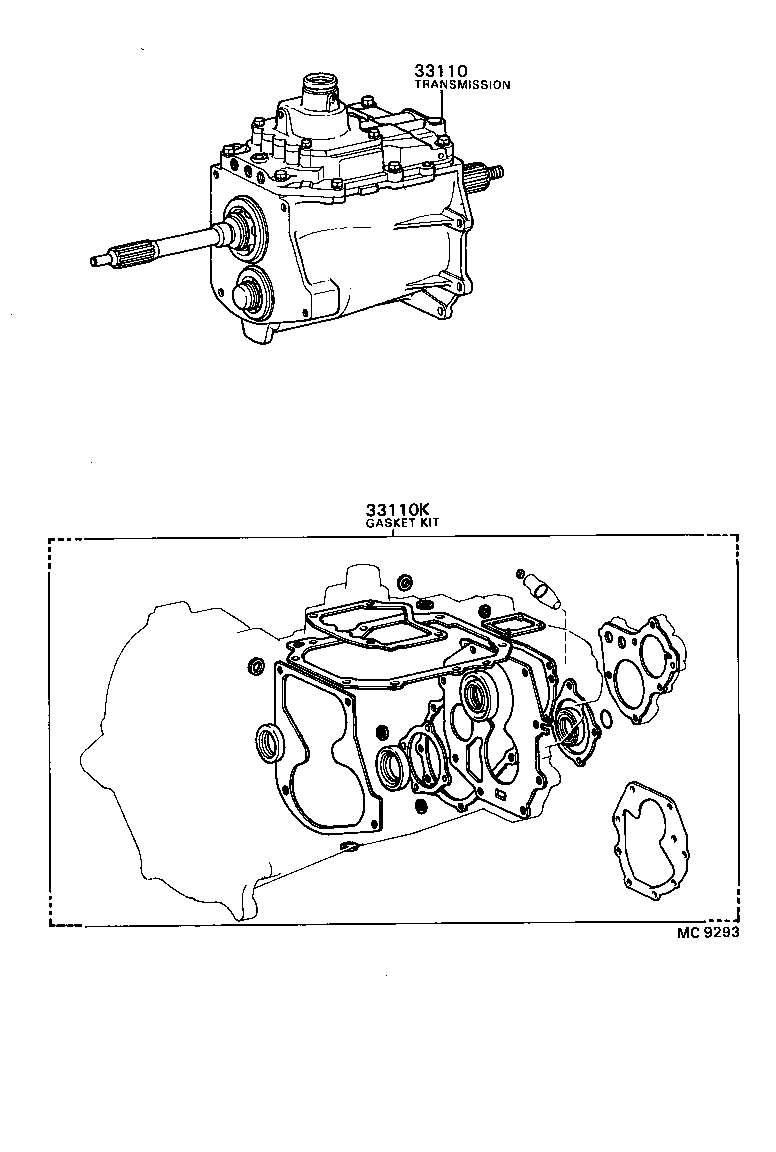

Figure MC6913D MC6913D 1980-03 → — Figure MC9293 MC9293 1982-10 → —

Part groups

PNCDescription
33110 Transmission Assy, Manual
33110K Gasket Kit, Manual Transmission Overhaul
33200 Transmission Assy, W/Transfer Parking Brake
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
