Toyota Blizzard
1980-03 → 1984-04 · chassis LD10 · catalogue 661110 · Japan
Discontinued model
Data version 1984-11

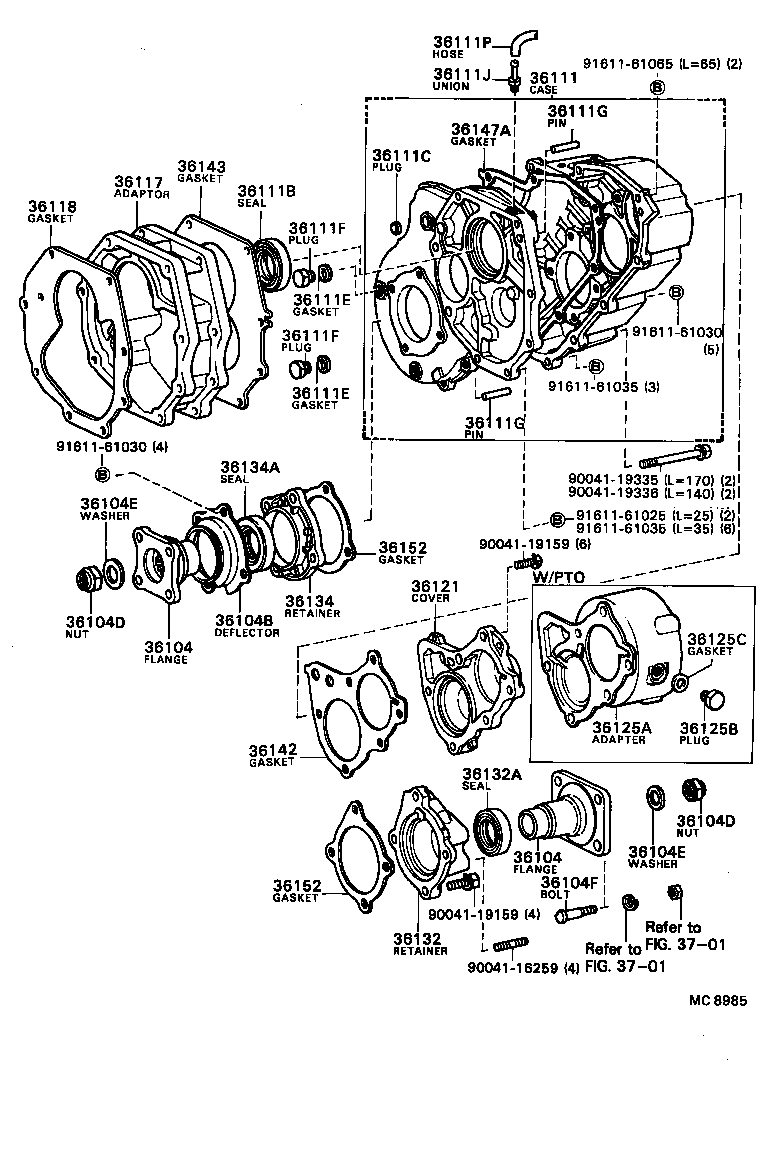

Transfer Case & Extension Housing
28 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 36104 | Flange, Companion (FOR TRANSFER OUTPUT SHAFT) |
| 36104B | Deflector, Dust (FOR TRANSFER OUTPUT SHAFT) |
| 36104D | Nut (FOR TRANSFER OUTPUT SHAFT) |
| 36104E | Washer, Plate (FOR TRANSFER OUTPUT SHAFT) |
| 36104F | Bolt (FOR TRANSFER OUTPUT SHAFT COMPANION FLANGE) |
| 36111 | Case, Transfer |
| 36111B | Seal, Oil (FOR TRANSFER CASE) |
| 36111C | Plug (FOR TRANSFER CASE) |
| 36111E | Gasket (FOR TRANSFER CASE) |
| 36111F | Plug (FOR TRANSFER CASE) |
| 36111G | Pin, Straight (FOR TRANSFER CASE) |
| 36111H | Plug, Breather (FOR TRANSFER CASE) |
| 36111J | Union, Breather, NO.1 (FOR TRANSFER) |
| 36111P | Hose, Breather (FOR TRANSFER CASE) |
| 36117 | Adapter, Transfer |
| 36118 | Gasket, Transfer Adapter |
| 36121 | Cover, Transfer Case, NO.1 |
| 36125A | Adapter, Power Take-off |
| 36125B | Plug(FOR POWER TAKE-OFF ADAPTER) |
| 36125C | Gasket(FOR POWER TAKE-OFF ADAPTER) |
| 36132 | Retainer, Output Shaft Bearing, Rear NO.1 |
| 36132A | Seal, Oil (FOR OUTPUT SHAFT RETAINER) |
| 36134 | Retainer, Output Shaft Bearing, Front |
| 36134A | Seal, Oil (FOR OUTPUT SHAFT BEARING FRONT RETAINER) |
| 36142 | Gasket, Transfer Cover |
| 36143 | Gasket, Transfer Case, Front |
| 36147A | Gasket, Transfer Case |
| 36152 | Gasket, Output Shaft Bearing Retainer |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
