Toyota Blizzard

1980-03 → 1984-04 · chassis LD10 · catalogue 661110 · Japan

Discontinued model Data version 1984-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Drive Clutch & Gear

2 part groups · 2 illustrations

Illustrations

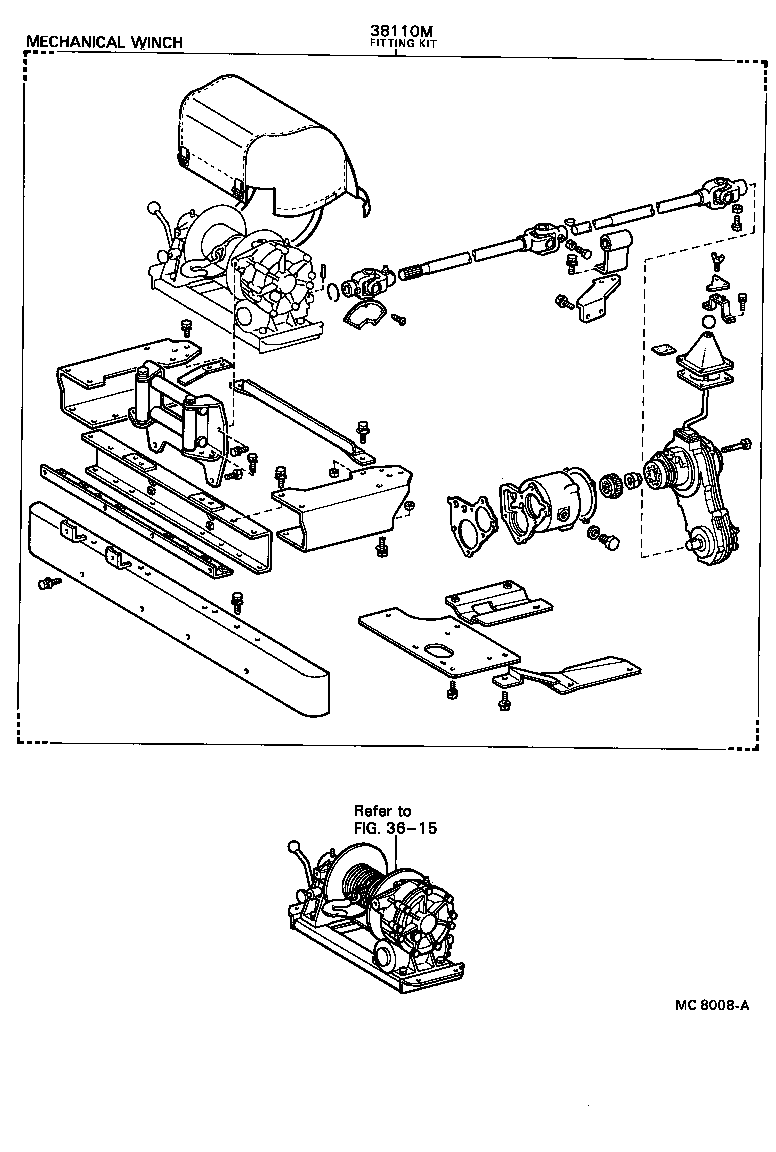

Figure MC6922A MC6922A 1980-03 → — Figure MC8008A MC8008A 1981-10 → —

Part groups

PNCDescription
38110M Fitting Kit, NO.1, Winch
38110N Fitting Kit, NO.2, Winch
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
