Toyota Blizzard

1980-03 → 1984-04 · chassis LD10 · catalogue 661110 · Japan

Discontinued model Data version 1984-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Column & Shaft

32 part groups · 2 illustrations

Illustrations

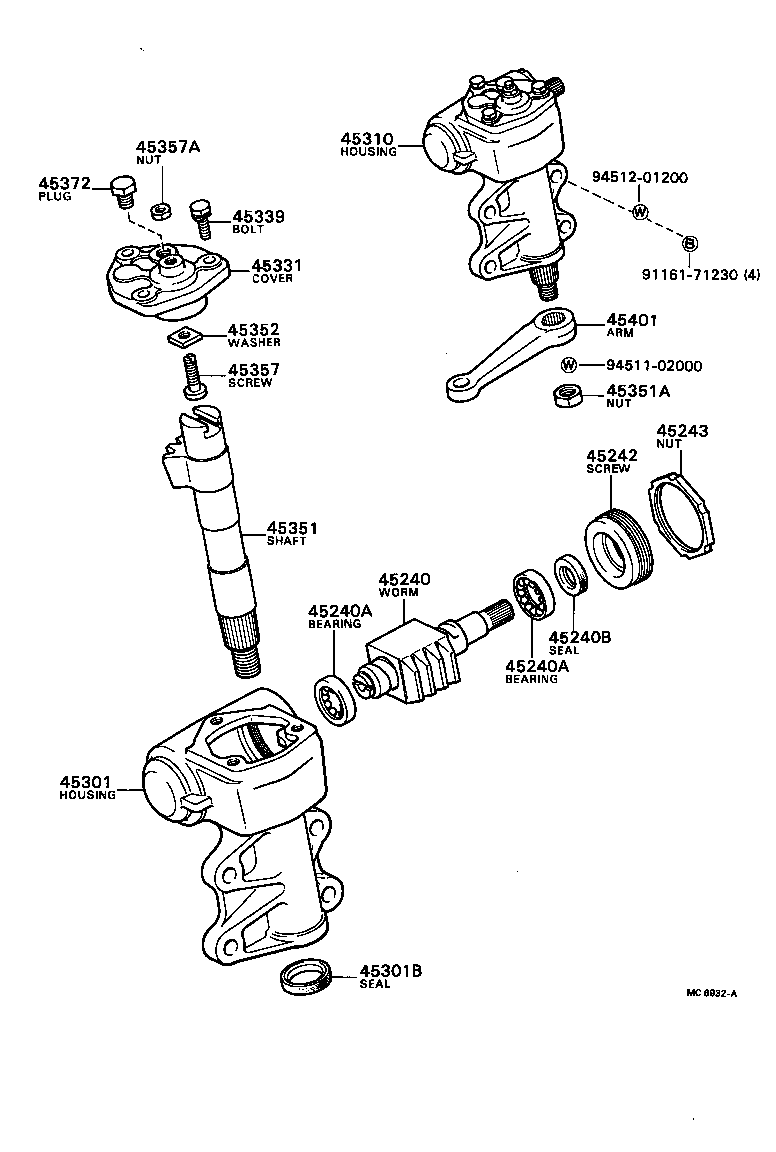

Figure MC6931B MC6931B 1980-03 → — Figure MC6932A MC6932A 1980-03 → —

Part groups

PNCDescription
45020 Bracket Assy, Steering Column Upper W/Switch
45201 Shaft Sub-assy, Steering Main
45205 Tube Sub-assy, Steering Column
45205B Collar(FOR STEERING COLUMN TUBE BUSH)
45205D Shim(FOR STEERING CULUMN TUBE)
45208 Housing Sub-assy, Steering Column, Upper
45219 Yoke, Steering Sliding
45221 Shaft, Steering Intermediate
45222 Cover, Steering Gear Dust
45231 Yoke, Main Shaft Flexible Coupling
45232 Coupling, Main Shaft Flexible
45235 Earth, Flexible Coupling
45240 Worm Assy, Steering
45240A Bearing(FOR STEERING WORM)
45240B Seal, Oil(FOR STEERING WORM)
45242 Screw, Worm Bearing Adjusting
45243 Nut, Worm Bearing Adjusting Screw Lock
45275 Bracket, Steering Column, Upper
45281 Housing, Steering Column
45301 Housing Sub-assy, Steering Gear
45301B Seal, Oil(FOR SECTOR SHAFT)
45310 Housing Assy, Steering Gear
45331 Cover, Sector Shaft End
45339 Bolt, Steering Gear Housing
45351 Shaft, Steering Sector
45351A Nut, Hexagon(FOR SECTOR SHAFT TO PITMAN ARM SETTING)
45352 Washer, Sector Shaft Thrust
45357 Screw, Sector Shaft Adjusting
45357A Nut, Sector Shaft Adjusting
45372 Plug, Steering Gear Housing Oil
45401 Arm Sub-assy, Pitman
45897 Bolt, Steering Lock Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
