Toyota Blizzard

1980-03 → 1984-04 · chassis LD10 · catalogue 661110 · Japan

Discontinued model Data version 1984-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Spare Wheel Carrier

8 part groups · 2 illustrations

Illustrations

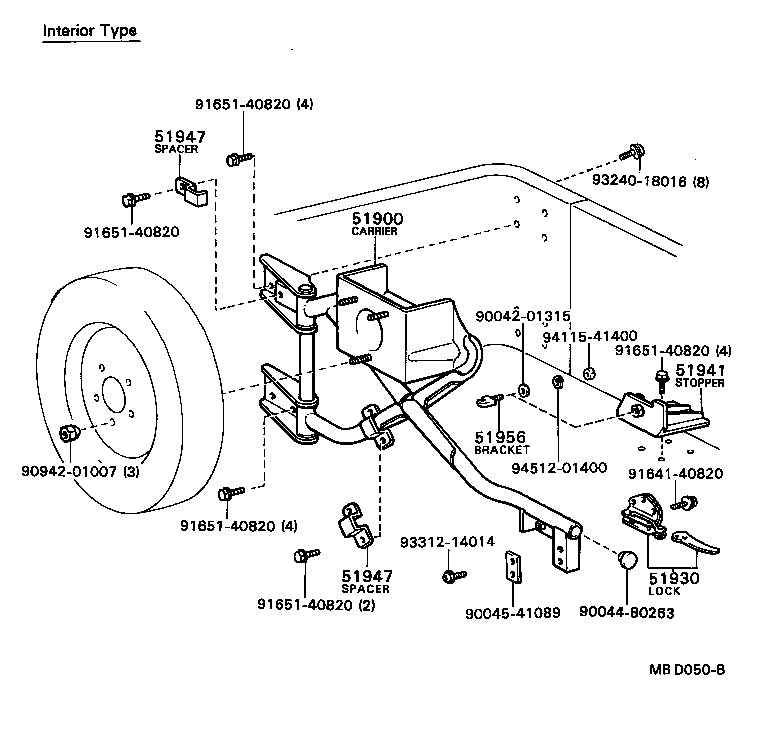

Figure MBB177C MBB177C 1980-03 → — Figure MBD050B MBD050B 1981-10 → —

Part groups

PNCDescription
51360 Lock Assy, Spare Wheel
51900 Carrier Assy, Spare Wheel
51900B Chain(FOR SPARE WHEEL CARRIER)
51928 Pin, Spare Wheel Carrier
51930 Lock Assy, Spare Wheel Carrier
51941 Stopper, Spare Wheel Carrier
51947 Spacer, Spare Wheel
51956 Bracket, Spare Wheel Carrier Support
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
