Toyota Blizzard

1980-03 → 1984-04 · chassis LD10 · catalogue 661110 · Japan

Discontinued model Data version 1984-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cowl Panel & Windshield Glass

19 part groups · 2 illustrations

Illustrations

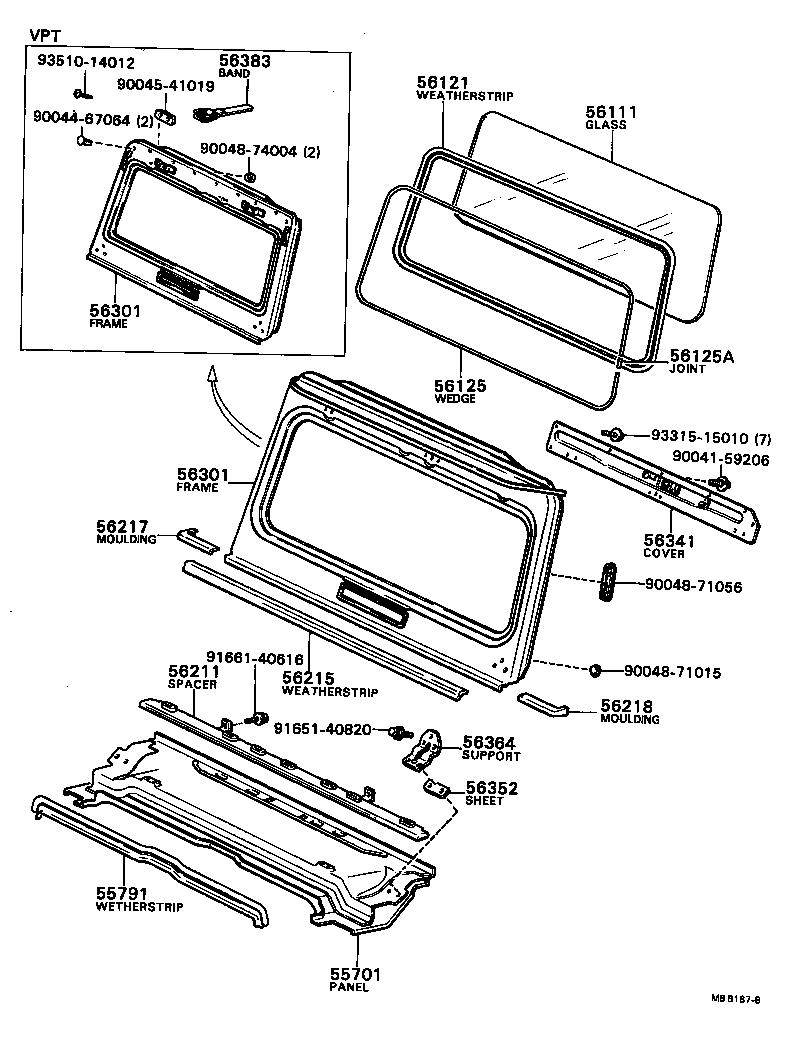

Figure MBB186B MBB186B 1980-03 → — Figure MBB187B MBB187B 1980-03 → —

Part groups

PNCDescription
55701 Panel Sub-assy, Cowl
55791 Weatherstrip, Hood TO Cowl Top
56111 Glass, Windshield
56121 Weatherstrip, Windshield
56125 Wedge, Windshield Weatherstrip
56125A Joint(FOR WINDSHIELD WEDGE)
56211 Spacer, Windshield
56215 Weatherstrip, TO Spacer Windshield
56217 Moulding Windshield Spacer,RH
56218 Moulding Windshield Spacer,LH
56301 Frame Sub-assy, Windshield
56301A Hook, Male(FOR TARPAULIN)
56306 Hinge Sub-assy, Windshield Support, RH
56307 Hinge Sub-assy, Windshield Support, LH
56341 Cover, Windshield Wiper Hole
56352 Sheet, Windshield Hinge, Male
56364 Support, Windshield
56383 Band, Windshield Set
62325 Trim, Windshield Frame
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
