Toyota Blizzard

1980-03 → 1984-04 · chassis LD10 · catalogue 661110 · Japan

Discontinued model Data version 1984-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Mat & Silencer Pad

12 part groups · 2 illustrations

Illustrations

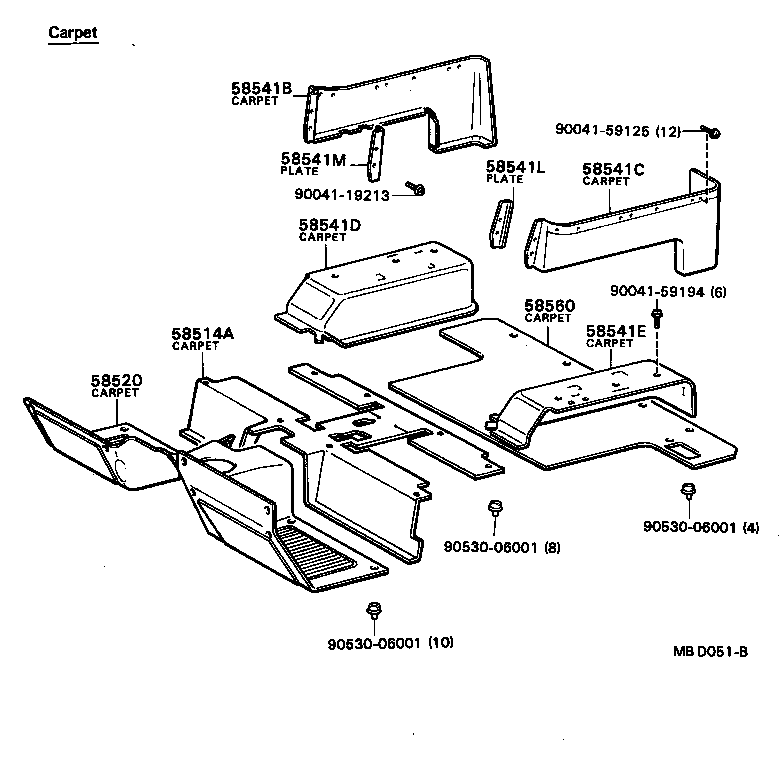

Figure MBB190B MBB190B 1980-03 → — Figure MBD051B MBD051B 1981-10 → —

Part groups

PNCDescription
58511 Mat, Floor, Front
58514A Carpet, Floor, Center
58515 Mat, Floor, Center
58520 Carpet Assy, Front Floor
58541B Carpet, Quarter, RH
58541C Carpet,Quarter, LH
58541D Carpet, Rear Wheel House, RH
58541E Carpet, Rear Wheel House, LH
58541L Plate, Quarter Inner Cover Set, LH
58541M Plate, Quarter Inner Cover Set, RH
58551 Mat, Floor, Rear
58560 Carpet Assy, Floor, Rear
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
