Toyota Blizzard

1980-03 → 1984-04 · chassis LD10 · catalogue 661110 · Japan

Discontinued model Data version 1984-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Side Member

36 part groups · 3 illustrations

Illustrations

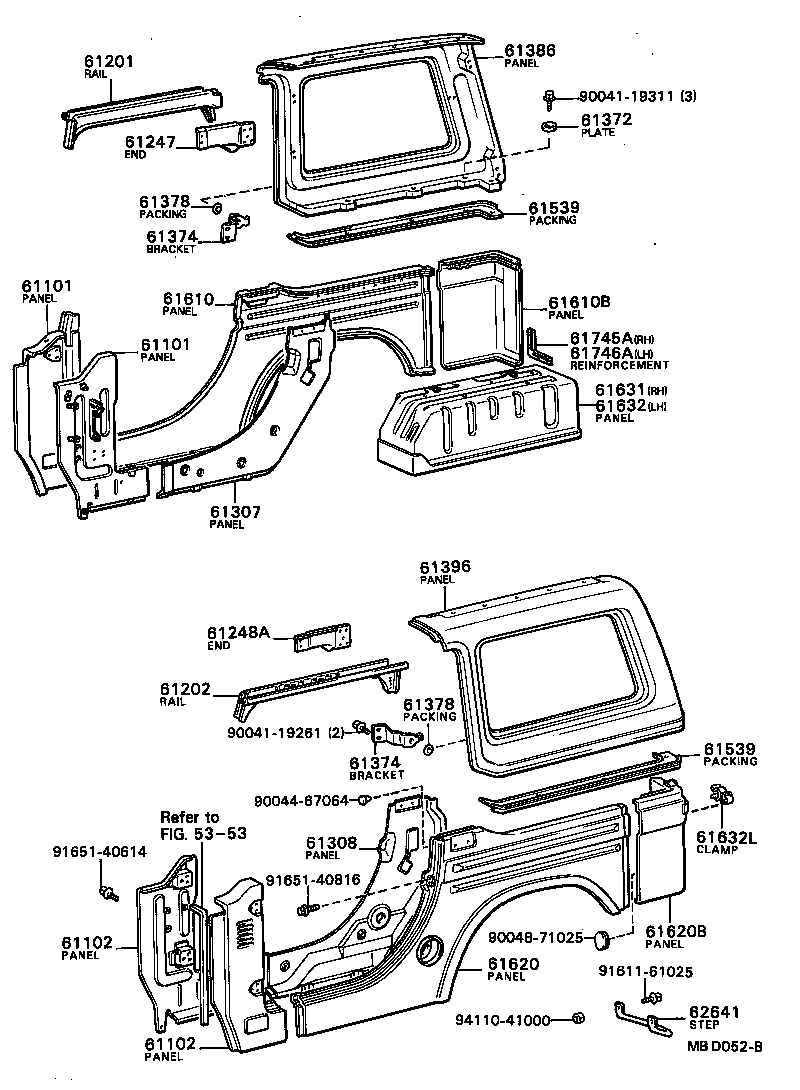

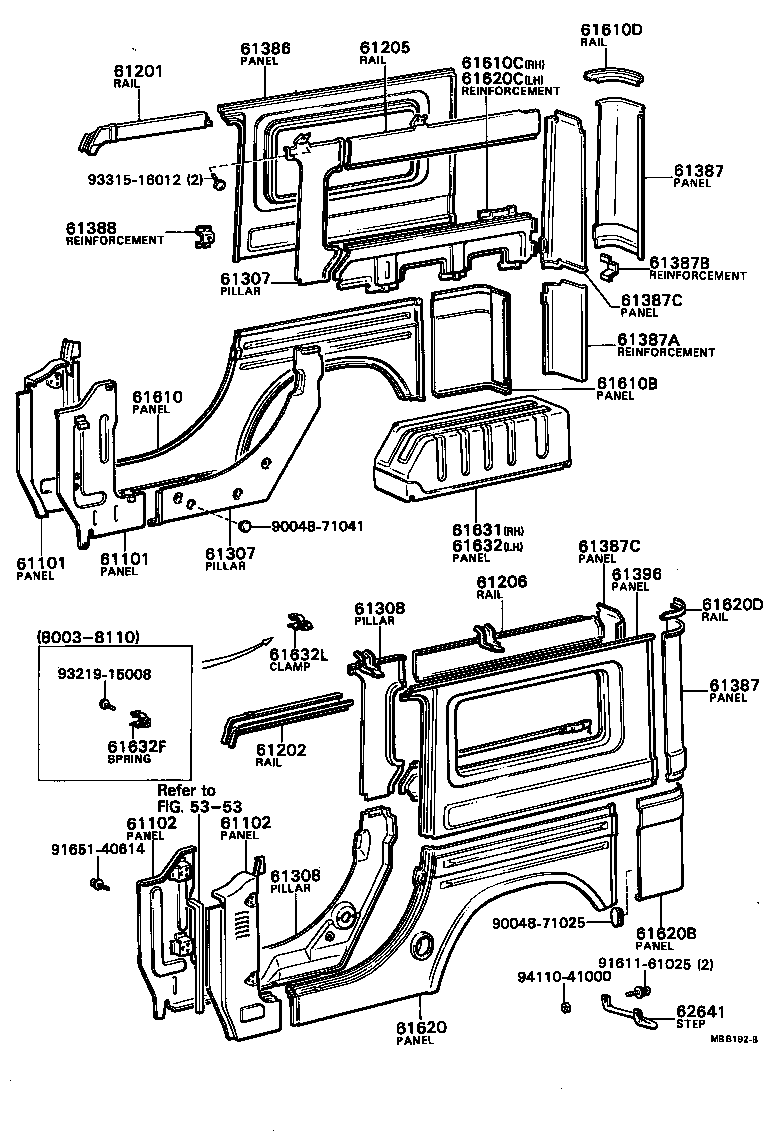

Figure MBB191B MBB191B 1980-03 → — Figure MBB192B MBB192B 1980-03 → — Figure MBD052B MBD052B 1981-10 → —

Part groups

PNCDescription
61101 Panel Sub-assy, Cowl Side, RH
61102 Panel Sub-assy, Cowl Side, LH
61201 Rail Sub-assy, Roof Side, RH
61202 Rail Sub-assy, Roof Side, LH
61205 Rail Sub-assy, Roof Side, Inner Rear RH
61206 Rail Sub-assy, Roof Side, Inner Rear LH
61247 End, Roof Side Rail, Inner Rear RH
61248A End, Roof Side Rail, Inner Rear LH
61307 Pillar Sub-assy, Center Body, Inner RH
61308 Pillar Sub-assy, Center Body, Inner LH
61372 Plate, Rear Side Panel, Upper
61374 Bracket, Rear Side Panel, Upper
61378 Packing, Rear Side Panel, Bracket
61386 Panel, Rear Side, Upper RH
61387 Panel, Rear Body Corner, Upper
61387A Reinforcement Sub-assy, Rear Body Corner
61387B Reinforcement, Swing Gate Hinge
61387C Panel, Rear Pillar Inner, Upper
61388 Reinforcement, Seat Belt Anchorage
61396 Panel, Rear Side, Upper LH
61539 Packing, Rear Upper Side Panel Set
61610 Panel Assy, Rear Body Side, RH
61610B Panel Sub-assy, Rear Body Corner, RH
61610C Reinforcement Sub-assy, Rear Side, Lower RH
61610D Rail, Rear Corner Panel, Upper RH
61620 Panel Assy, Rear Body Side, LH
61620B Panel Sub-assy, Rear Body Corner, LH
61620C Reinforcement Sub-assy, Rear Side, Lower LH
61620D Rail, Rear Corner Panel, Upper LH
61631 Panel, Quarter Wheel House, RH
61632 Panel, Quarter Wheel House, LH
61632F Spring, Handle Support
61632L Clamp, Jack Handle
61745A Reinforcement, Back Door Opening, Lower RH
61746A Reinforcement, Back Door Opening, Lower LH
62641 Step, Rear
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
