Toyota Blizzard

1980-03 → 1984-04 · chassis LD10 · catalogue 661110 · Japan

Discontinued model Data version 1984-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Side Window

18 part groups · 2 illustrations

Illustrations

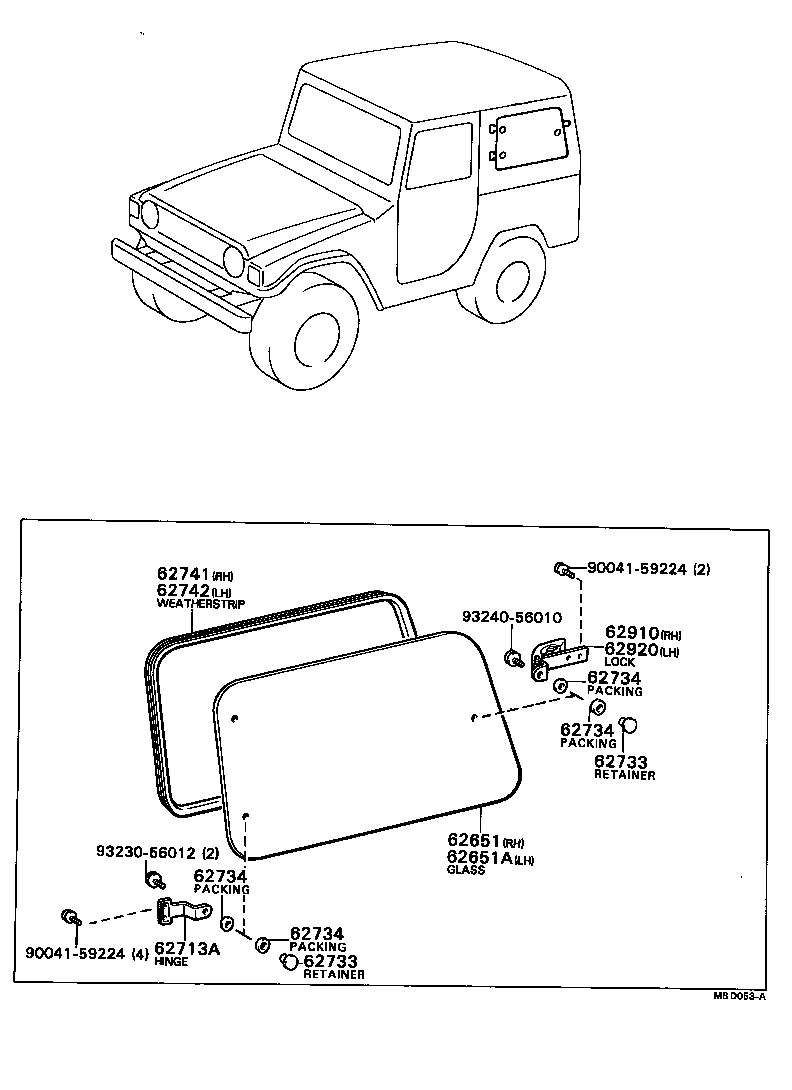

Figure MBB193C MBB193C 1980-03 → — Figure MBD053A MBD053A 1981-10 → —

Part groups

PNCDescription
62651 Glass, Side Window, NO.1, Front (FOR SLIDE TYPE)
62651A Glass, Side Window, NO.1, Rear (FOR SLIDE TYPE)
62691A Packing, Side Window Lock, NO.1
62691B Retainer, Side Window Lock, NO.1
62695 Lock, Side Window, NO.5 Glass (FOR SLIDE TYPE)
62701 Frame Sub-assy, Rear Side Window, RH
62702 Frame Sub-assy, Rear Side Window, LH
62713A Hinge Assy, Quarter Window, Rear
62733 Retainer, Quarter OR Side Window Hinge
62734 Spacer, Quarter Window Hinge
62741 Weatherstrip, Quarter Window, RH
62742 Weatherstrip, Quarter Window, LH
62746 Weatherstrip, Side Window Glass Channel, NO.1
62748 Channel, Side Window Glass
62761A Weatherstrip, Side Window, NO.1(FOR SLIDE TYPE)
62765 Run, Side Window, NO.5(FOR SLIDE TYPE)
62910 Lock Assy, Quarter OR Side Window, RH
62920 Lock Assy, Quarter Window, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
