Toyota Blizzard
1980-03 → 1984-04 · chassis LD10 · catalogue 661110 · Japan
Discontinued model
Data version 1984-11

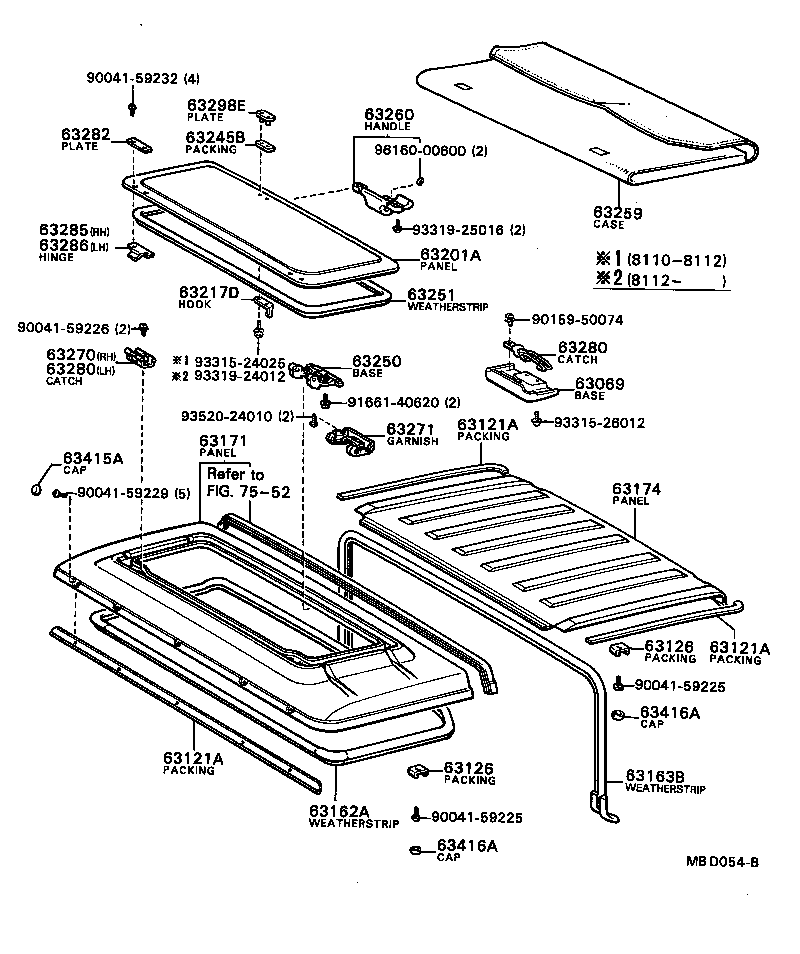

Roof Panel & Back Panel
27 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 63069 | Base Sub-assy, Removable Roof Auxiliary Catch |
| 63100A | Member, Back Door Opening, Upper |
| 63101 | Panel Sub-assy, Roof |
| 63102 | Reinforcement Sub-assy, Roof Panel, Front |
| 63105 | Reinforcement Sub-assy, Roof Panel, Rear |
| 63121A | Packing, Front Roof Panel |
| 63126 | Packing, Roof Panel Bracket |
| 63162A | Weatherstrip, Front Roof |
| 63163B | Weatherstrip,Rear Roof |
| 63171 | Panel, Roof, Front |
| 63174 | Panel, Roof, Rear |
| 63201A | Panel Sub-assy, Sliding Roof OR Removable Roof |
| 63217D | Hook, Removable Roof Auxiliary, RH |
| 63245B | Packing |
| 63250 | Base Assy, Removable Roof Lock |
| 63251 | Weatherstrip, Sliding Roof Panel OR Removable Roof |
| 63259 | Case, Removable Roof |
| 63260 | Handle Assy, Removable Roof Lock |
| 63270 | Catch Assy, Removable Roof Auxiliary, RH |
| 63271 | Garnish, Removable Roof Lock |
| 63280 | Catch Assy, Removable Roof Auxiliary, LH |
| 63282 | Plate, Removable Roof Hinge Set |
| 63285 | Hinge, Removable Roof, RH |
| 63286 | Hinge, Removable Roof, LH |
| 63298E | Plate, Removable Roof Auxiliary Hook Set |
| 63415A | Cap, Front Roof Screw |
| 63416A | Cap, Rear Roof Screw |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
