Toyota Blizzard

1980-03 → 1984-04 · chassis LD10 · catalogue 661110 · Japan

Discontinued model Data version 1984-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Body Top Curtain & Roof Panel

27 part groups · 2 illustrations

Illustrations

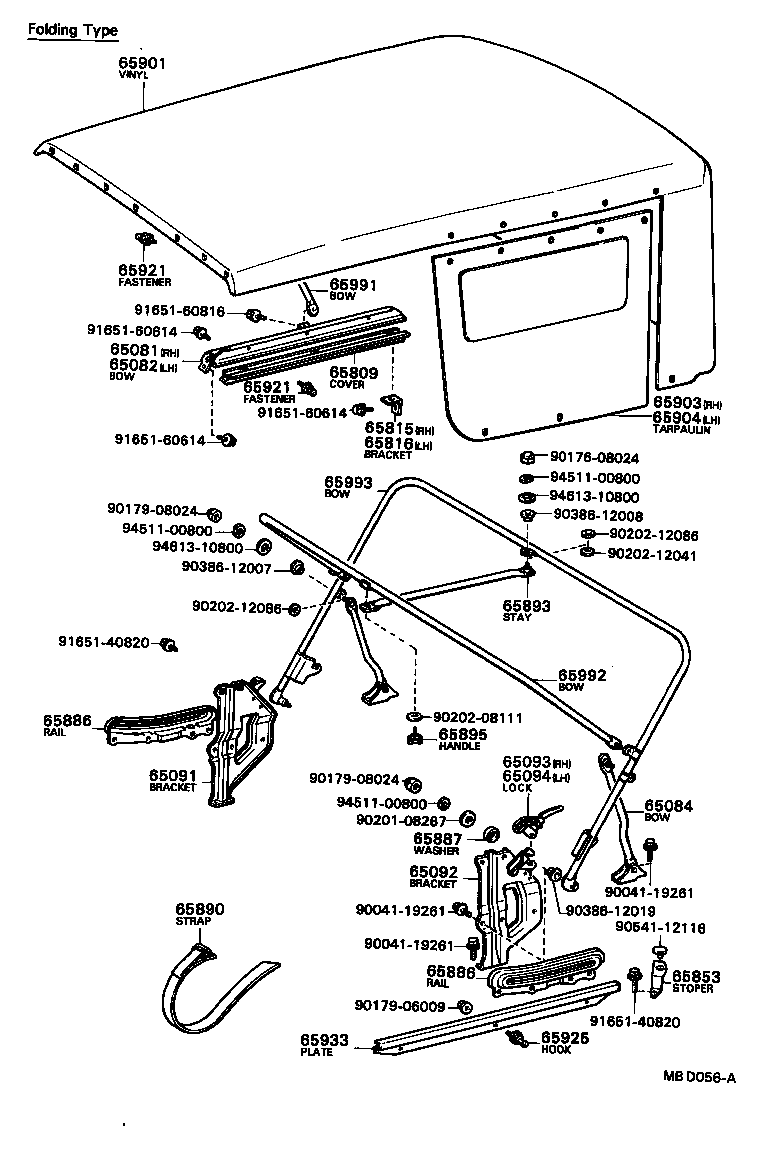

Figure MBB197D MBB197D 1980-03 → — Figure MBD056A MBD056A 1981-10 → —

Part groups

PNCDescription
65081 Bow Sub-assy, Front Side Top, RH
65082 Bow Sub-assy, Front Side Top, LH
65084 Stay Sub-assy, Rear Vinyl Top Pipe
65091 Bracket Sub-assy, Rear Vinyl Top Pipe, RH
65092 Bracket Sub-assy, Rear Vinyl Top Pipe, LH
65093 Lock Sub-assy, Rear Tarpaulin Bow, RH
65094 Lock Sub-assy, Rear Tarpaulin Bow, LH
65809 Cover Sub-assy, Front Side Bow, Outer
65815 Bracket, Front Side Top Bow, RH
65816 Bracket, Front Side Top Bow, LH
65853 Stopper, Vinyl Top Pipe
65886 Rail, Rear Vinyl Top Pipe
65887 Washer, Rear Vinyl Top Pipe Rail
65890 Strap Assy, Tarpaulin Bow
65893 Stay, Center Vinyl Top Pipe
65895 Handle, Center Tarpaulin Bow Stay Catch
65901 Vinyl Sub-assy, Top
65903 Tarpaulin Assy, Side Cover, RH
65904 Tarpaulin Assy, Side Cover, LH
65921 Fastener, Vinyl Top
65925 Hook, Tarpaulin Side, Male
65933 Plate, Vinyl Top Lower Set
65991 Pipe, Vinyl Top Guard, NO.1
65992 Pipe, Vinyl Top Guard, NO.2
65993 Pipe, Vinyl Top Guard, NO.3
65994 Pipe, Vinyl Top Guard
65995 Clamp, Curtain Rail, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
