Toyota Blizzard

1980-03 → 1984-04 · chassis LD10 · catalogue 661110 · Japan

Discontinued model Data version 1984-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Door Panel & Glass

18 part groups · 2 illustrations

Illustrations

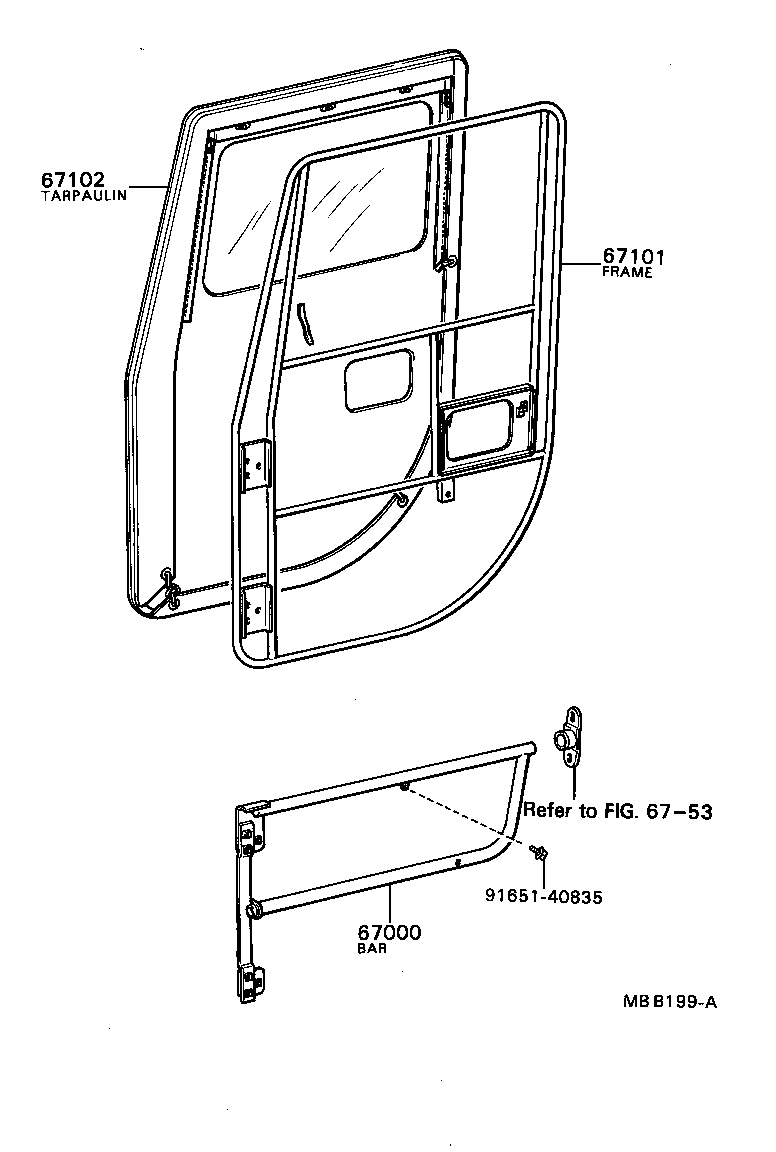

Figure MBB198A MBB198A 1980-03 → — Figure MBB199A MBB199A 1980-03 → —

Part groups

PNCDescription
67000 Bar Sub-assy, Guard
67001 Panel Sub-assy, Front Door, RH
67002 Panel Sub-assy, Front Door, LH
67101 Frame Sub-assy, Door
67102 Tarpaulin Sub-assy, Door
67407 Frame Sub-assy, Front Door, Rear Lower RH
67408 Frame Sub-assy, Front Door, Rear Lower LH
67601 Board Sub-assy, Front Door Trim, RH
67602 Board Sub-assy, Front Door Trim, LH
67801 Cover Sub-assy, Front Door Hole, NO.1 RH
67802 Cover Sub-assy, Front Door Hole, NO.1 LH
67861 Weatherstrip, Front Door, RH
67862 Weatherstrip, Front Door, LH
68101 Glass Sub-assy, Front Door, RH
68102 Glass Sub-assy, Front Door, LH
68141 Run, Front Door Glass
68161 Weatherstrip, Front Door Glass, Outer
68170 Weatherstrip Assy, Front Door Glass, Inner
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
