Toyota Blizzard

1980-03 → 1984-04 · chassis LD10 · catalogue 661110 · Japan

Discontinued model Data version 1984-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Door Lock & Handle

24 part groups · 2 illustrations

Illustrations

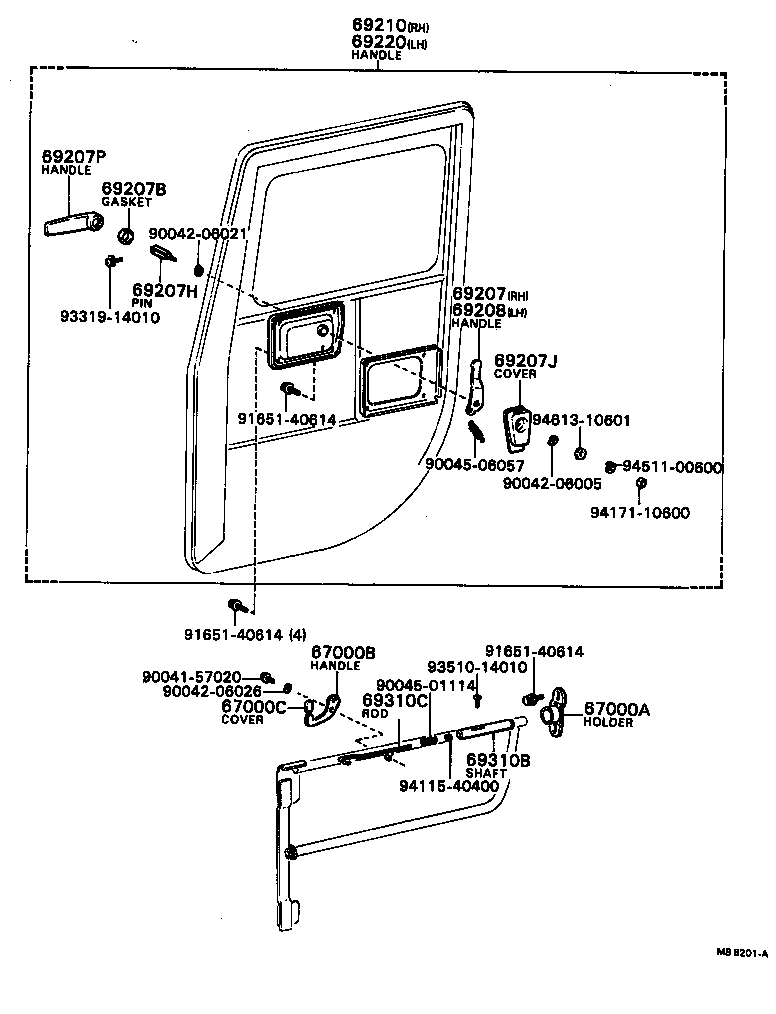

Figure MBB200B MBB200B 1980-03 → — Figure MBB201A MBB201A 1980-03 → —

Part groups

PNCDescription
67000A Holder Sub-assy, Guard Bar
67000B Handle, Guard Bar
67000C Cover(FOR GUARD BAR HANDLE)
69207 Handle Sub-assy, Front Door Inside, RH
69207B Gasket(FOR FRONT DOOR INSIDE HANDLE)
69207H Pin(FOR FRONT DOOR INSIDE HANDLE)
69207J Cover, Door Handle
69207P Handle, Door Outside
69208 Handle Sub-assy, Front Door Inside, LH
69210 Handle Assy, Front Door, Outside RH
69220 Handle Assy, Front Door Outside, LH
69258 Seal, Door Outside Panel Hole
69276 Bezel, Front Door Inside Handle
69310 Lock Assy, Front Door, RH
69310B Shaft Sub-assy, Guard Bar Lock
69310C Rod, Guard Bar Lock
69320 Lock Assy, Front Door, LH
69357 Rod, Front Door Locking Control Push
69410 Plate Assy, Front Door Lock Striker
69410A Shim, Front Door Lock Striker Plate
69710 Link Assy, Front Door Open Control, RH
69720 Link Assy, Front Door Open Control, LH
69747A Button, Door Locking(FOR FRONT DOOR)
69755 Silencer, Front Door Lock Link
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
