Toyota Blizzard

1980-03 → 1984-04 · chassis LD10 · catalogue 661110 · Japan

Discontinued model Data version 1984-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back Door Panel & Glass

22 part groups · 3 illustrations

Illustrations

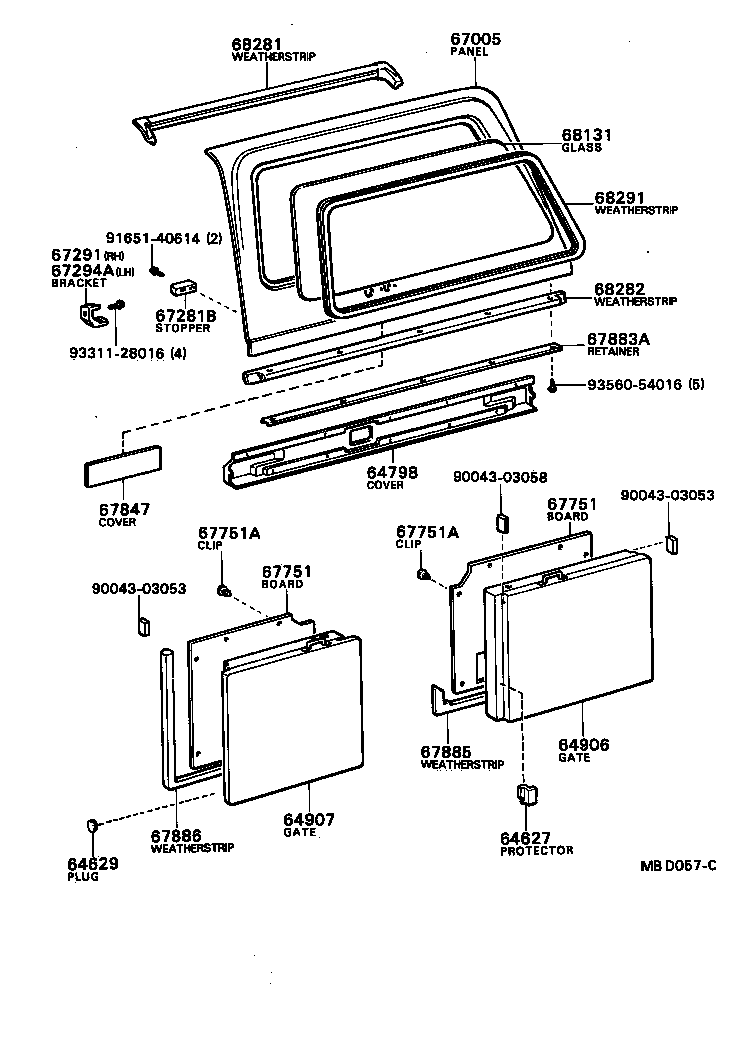

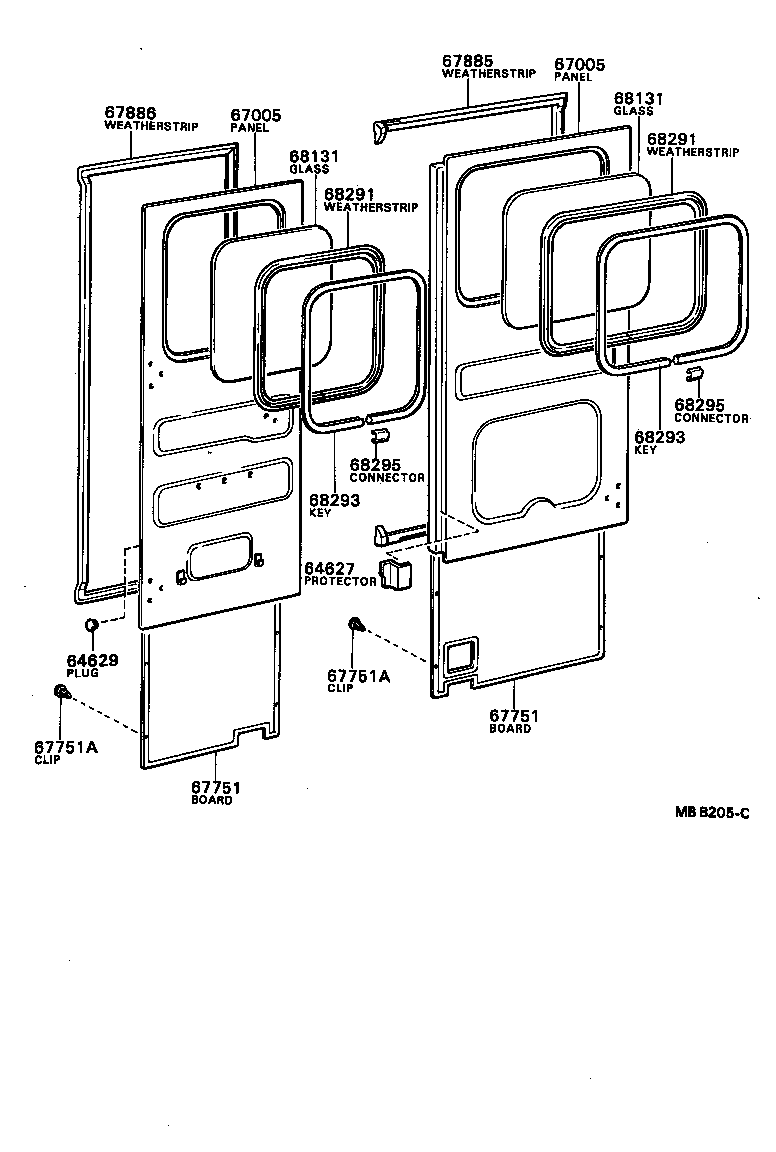

Figure MBB204C MBB204C 1980-03 → — Figure MBB205C MBB205C 1980-03 → — Figure MBD057C MBD057C 1981-10 → —

Part groups

PNCDescription
64627 Protector, Swing Gate Corner
64628 Cover, Swing Gate Corner Edge
64629 Plug, Swing Gate Hole
64798 Cover, Back Door Lock
64906 Gate Sub-assy, Rear Swing, RH
64907 Gate Sub-assy, Rear Swing, LH
67005 Panel Sub-assy, Back Door
67291 Bracket, Back Door Stopper, RH
67294A Bracket, Back Door Stopper, LH
67398 Protector, Back Door Harness
67751 Board, Back Door Trim
67751A Clip(FOR BACK DOOR TRIM BOARD)
67847 Cover, Back Door Service Hole, RH
67883A Retainer, Back Door Weatherstrip
67885 Weatherstrip, Back Door, RH
67886 Weatherstrip, Back Door, LH
68131 Glass, Back Door
68281 Weatherstrip, Back Door, Lower
68282 Weatherstrip, Back Door, Upper
68291 Weatherstrip, Back Door Glass
68293 Key, Back Window Weatherstrip
68295 Connector, Back Door Weatherstrip Wedge
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
