Toyota Blizzard

1980-03 → 1984-04 · chassis LD10 · catalogue 661110 · Japan

Discontinued model Data version 1984-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back Door Lock & Hinge

36 part groups · 3 illustrations

Illustrations

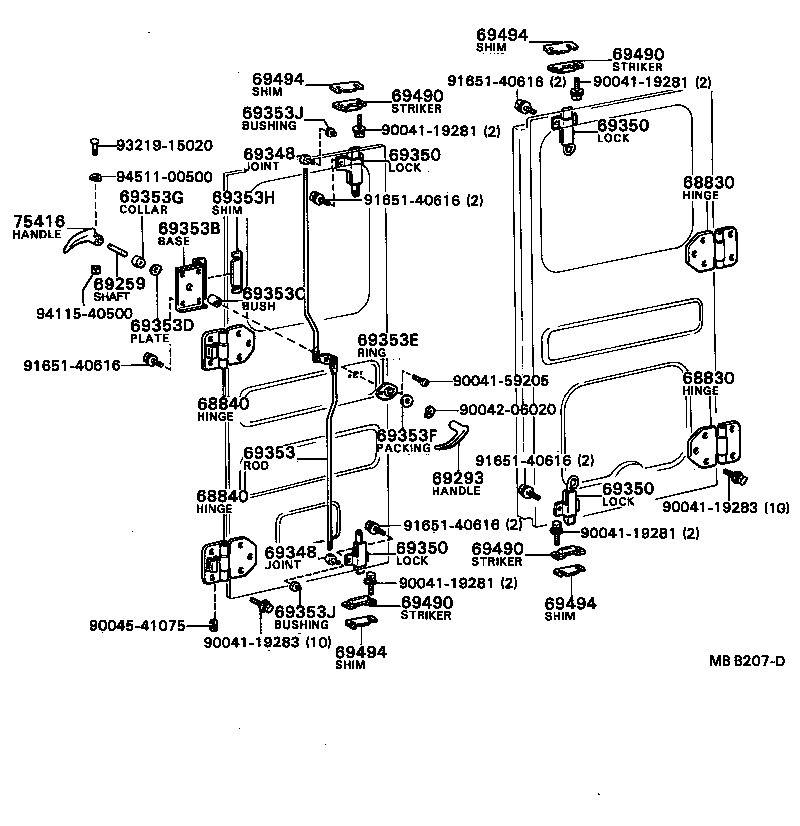

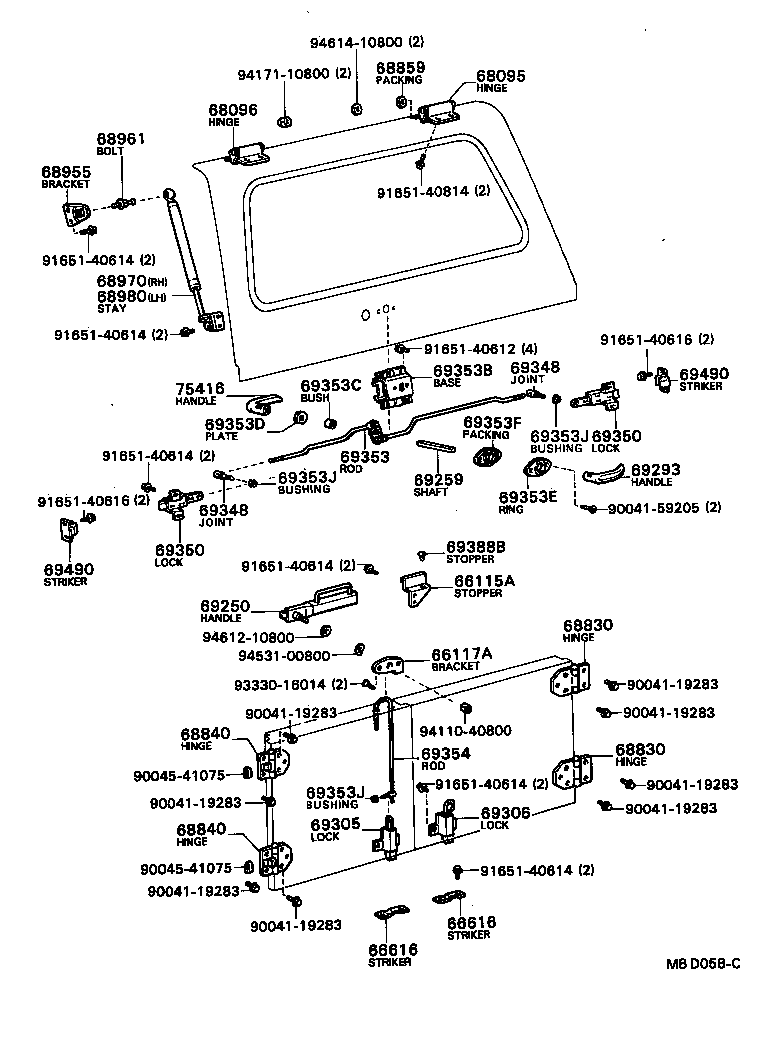

Figure MBB206D MBB206D 1980-03 → — Figure MBB207D MBB207D 1980-03 → — Figure MBD058C MBD058C 1981-10 → —

Part groups

PNCDescription
66115A Catch, Swing Gate Lock Handle
66117A Bracket, Swing Gate Lock Handle
66616 Striker, Tail Gate Lock
67281B Stopper, Back Door, Lower
68095 Hinge Assy, Rear Gate, RH
68096 Hinge Assy, Rear Gate, LH
68830 Hinge Assy, Back Door, RH
68840 Hinge Assy, Back Door, LH
68859 Packing, Back Door Hinge
68955 Bracket, Back Door Stay
68961 Bolt, Back Door Stay
68970 Stay Assy, Back Door, RH
68980 Stay Assy, Back Door
69212A Bush
69250 Handle Assy, Tail Gate Lock
69259 Shaft, Back Door Handle
69293 Handle, Back Door
69305 Lock Sub-assy, Back Door, Upper
69306 Lock Sub-assy, Back Door, Lower
69348 Joint, Adjusting
69350 Lock Assy, Back Door
69350J Pin, Swing Gate Lock
69353 Rod, Back Door Lock Control, Center
69353B Base Assy, Swing Gate Lock Handle
69353C Bush, Swing Gate Lock Handle
69353D Plate, Swing Gate Handle Lock
69353E Ring, Swing Gate Handle
69353F Packing, Swing Gate Handle
69353G Collar, Swing Gate Lock Handle
69353H Shim, Swing Gate Handle Base
69353J Bushing(FOR JOINT)
69354 Rod, Swing Gate Lock
69388B Stopper, Back Door Lock Handle
69490 Striker Assy, Back Door Lock
69494 Shim, Back Door Lock Striker
75416 Handle, Tail Gate, Inside
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
