Toyota Blizzard

1980-03 → 1984-04 · chassis LD10 · catalogue 661110 · Japan

Discontinued model Data version 1984-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat & Seat Track

23 part groups · 4 illustrations

Illustrations

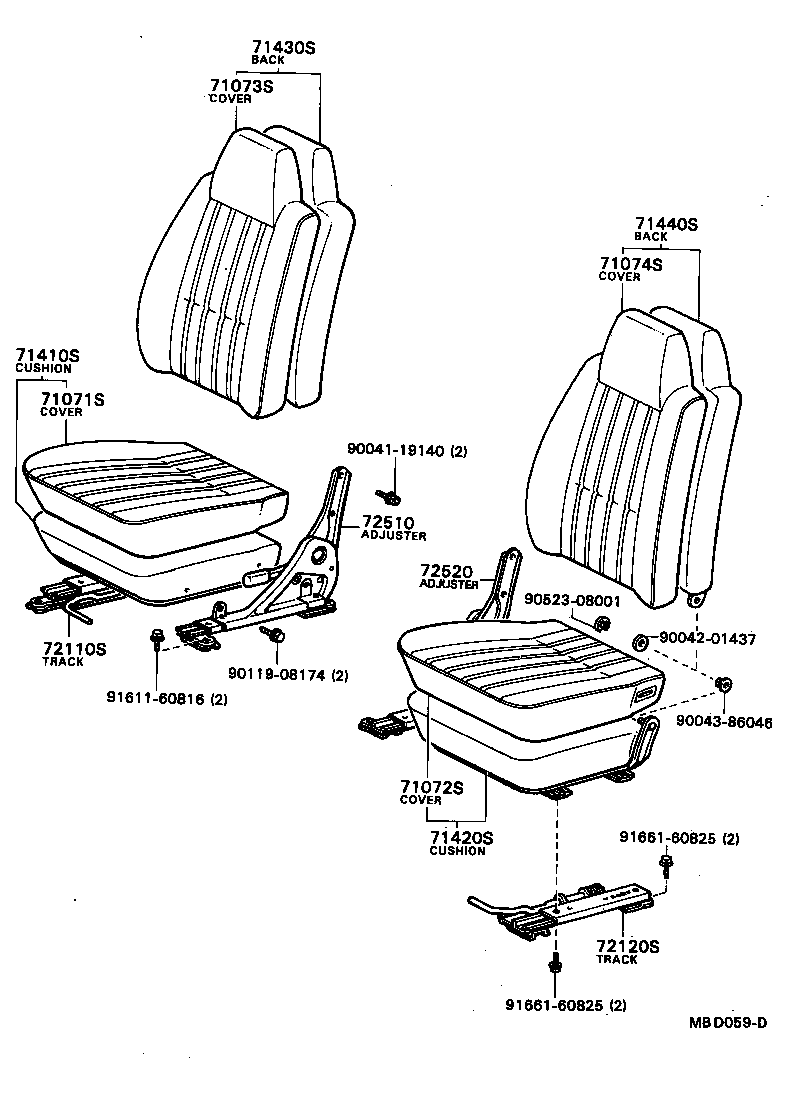

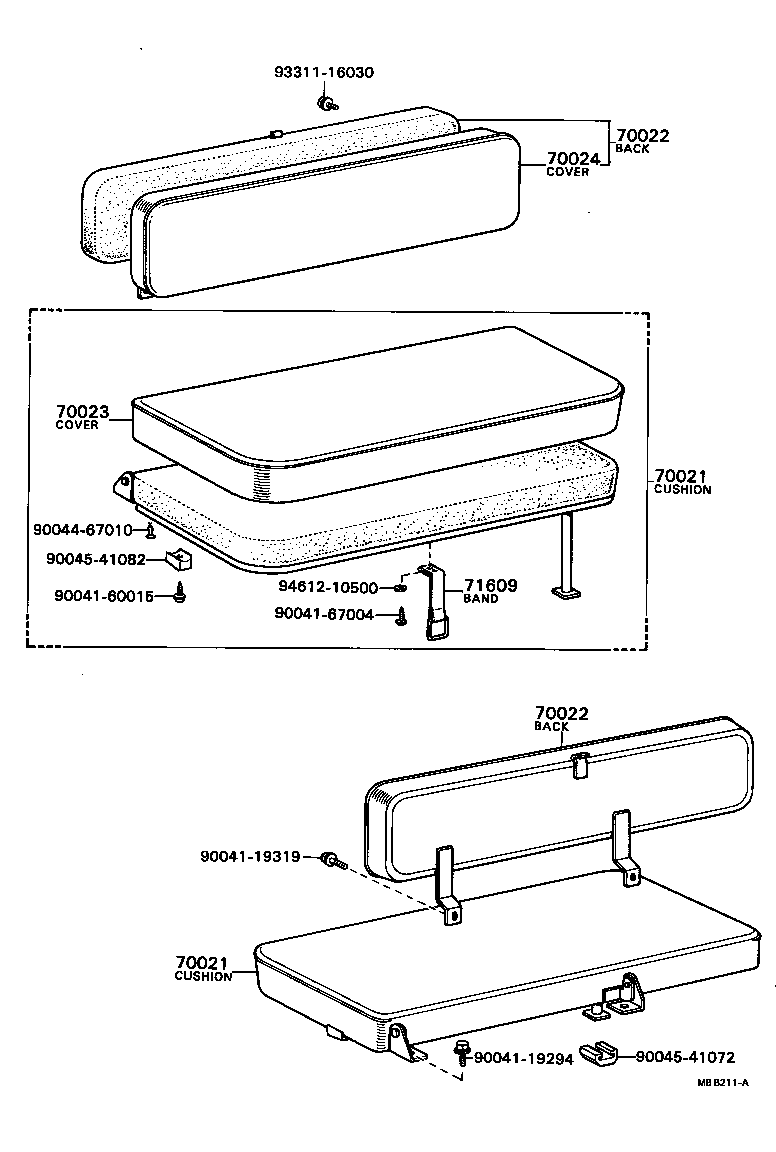

Figure MBB209A MBB209A 1980-03 → 1981-10 Figure MBD059D MBD059D 1981-10 → — Figure MBB210A MBB210A 1980-03 → — Figure MBB211A MBB211A 1980-03 → —

Part groups

PNCDescription
70021 Cushion Assy, NO.2 Seat
70022 Back Assy, NO.2 Seat
70023 Cover Assy, NO.2 Seat Cushion
70024 Cover Assy, NO.2 Seatback
71071S Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71410S Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
71410U Protector, Front Seat Cushion Frame
71420S Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
71430S Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
71440S Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
71609 Band Sub-assy, Rear Side Seat
72110S Track Assy, RH Seat, Outer (FOR SEPARATE SEAT)
72120S Track Assy, LH Seat, Outer (FOR SEPARATE SEAT)
72130 Track Assy, RH Seat, Inner
72140 Track Assy, LH Seat, Inner
72301 Wire Sub-assy, Seat Track Equalizing
72501 Stopper Assy, Front Seatback, RH
72502 Stopper Assy, Front Seatback, LH
72510 Adjuster Assy, Reclining Seatback, RH
72520 Adjuster Assy, Reclining Seatback, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
