Toyota Blizzard

1980-03 → 1984-04 · chassis LD10 · catalogue 661110 · Japan

Discontinued model Data version 1984-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Body Stripe

10 part groups · 2 illustrations

Illustrations

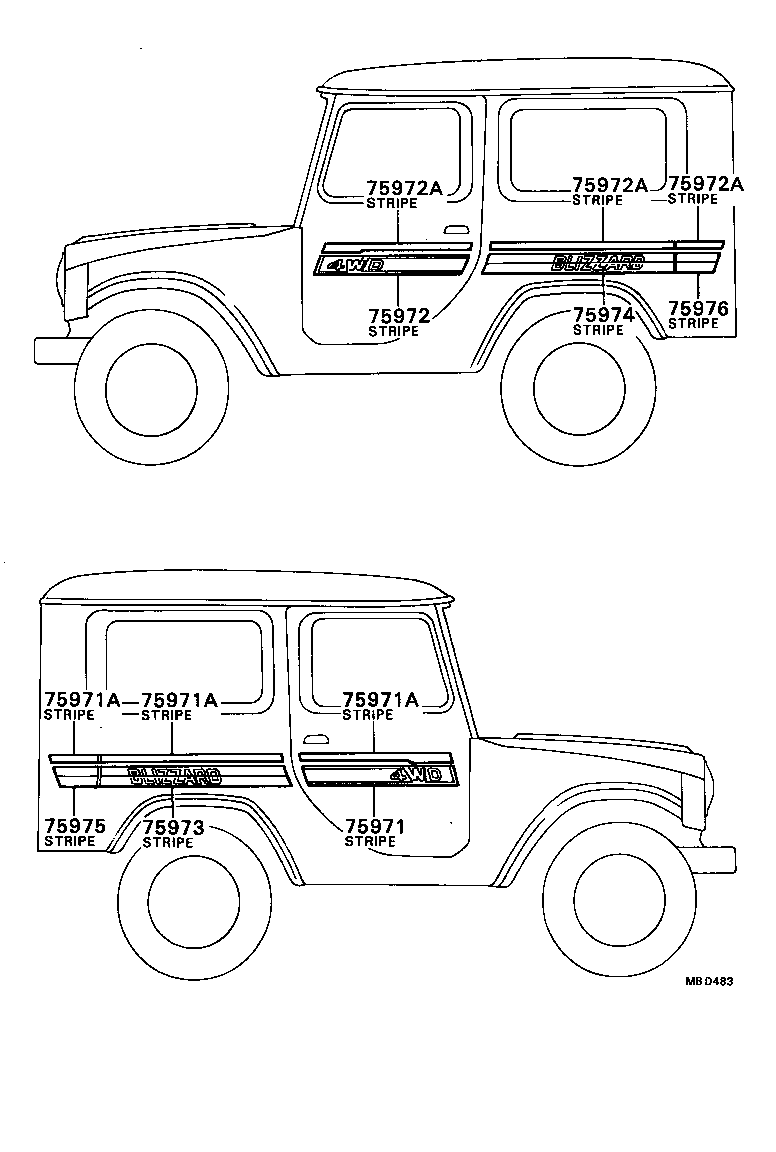

Figure MBC158A MBC158A 1980-07 → 1980-07 Figure MBD483 MBD483 1982-10 → —

Part groups

PNCDescription
75971 Stripe, Side, RH NO.1
75971A Stripe, Side, RH NO.1 (FOR UPPER)
75972 Stripe, Side, LH NO.1
75972A Stripe, Side, LH NO.1 (FOR UPPER)
75973 Stripe, Side, RH NO.2
75974 Stripe, Center Pillar, LH NO.2
75975 Stripe, Side, RH Upr NO.3
75976 Stripe, Side, LH Upr
75998 Stripe, Hood, RH
75999 Stripe, Hood, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
