Toyota Blizzard

1980-03 → 1984-04 · chassis LD10 · catalogue 661110 · Japan

Discontinued model Data version 1984-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

23 part groups · 3 illustrations

Illustrations

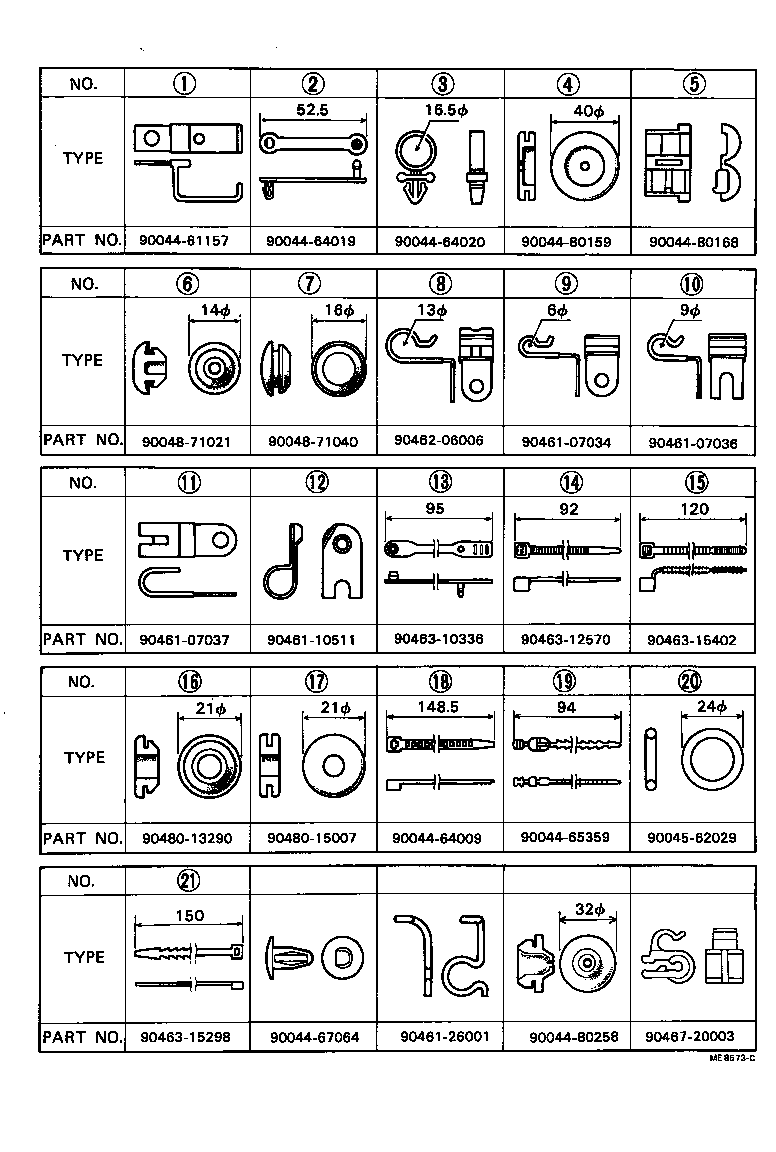

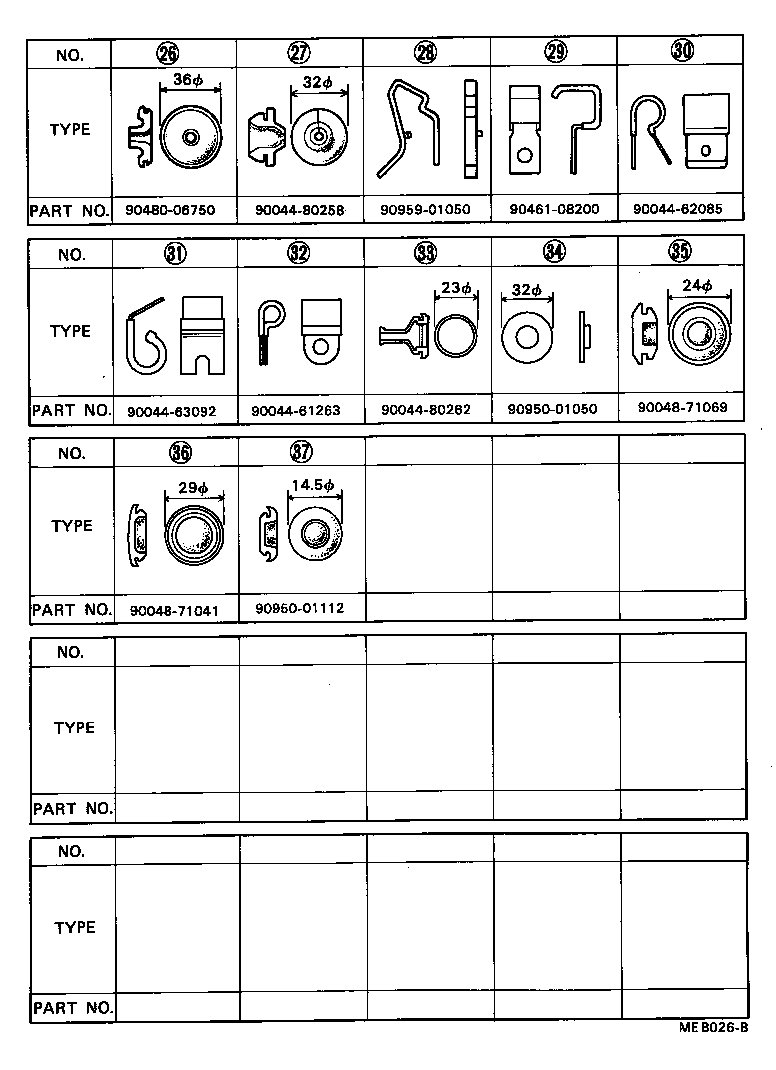

Figure ME8572F ME8572F 1980-03 → — Figure ME8573C ME8573C 1980-03 → — Figure MEB026B MEB026B 1981-10 → —

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82002 Cable, Battery TO Magnet Switch
82002A Cable, Magnet Switch TO Winch
82002B Cable, Winch TO Ground
82046 Wire Sub-assy, Rear Window Defogger Earth
82201 Wiring Sub-assy, Instrument Panel
82210 Harness Assy, Wiring Cowl TO Headlamp, NO.1
82210C Fusible Link
82210D Fusible Link
82210E Fusible Link
82211 Wire, Heater Blower Fan Switch
82211A Wire, Rear Heater
82216 Wire, Rear Window Defogger
82250 Wiring Assy, TO Generator
82341A Wire, Map Lamp
82370 Wire Assy, Wiper Switch TO Wiper
82401 Wiring, Rear Combination Lamp
82407A Wire Sub-assy, Meter
82410 Harness Assy, Wiring TO Rear Lamp
82412 Wire, Fuel Gage
82470 Wire Assy, License Lamp Feed
82672 Cover, Junktion Block
82673 Bracket, Junction Block
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
