Toyota Blizzard

1980-03 → 1984-04 · chassis LD10 · catalogue 661110 · Japan

Discontinued model Data version 1984-11
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

20 part groups · 2 illustrations

Illustrations

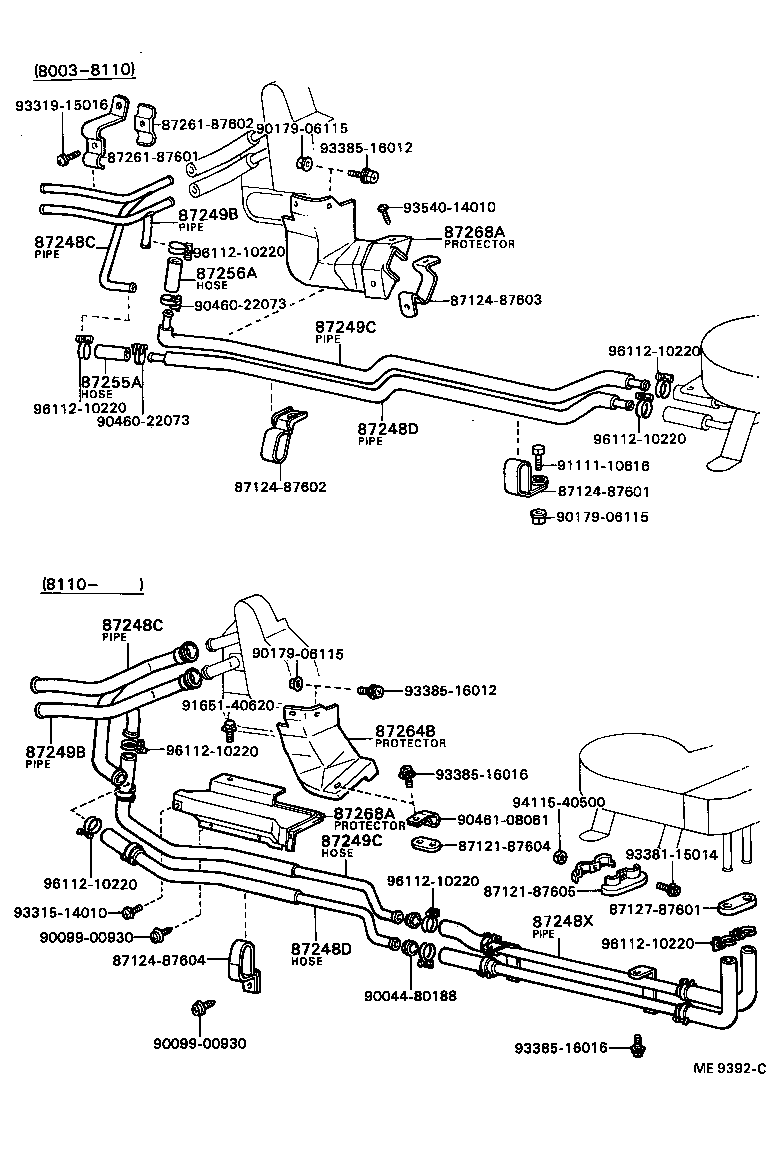

Figure ME8588E ME8588E 1980-03 → — Figure ME9392C ME9392C 1980-03 → —

Part groups

PNCDescription
87019C Grommet, Heater Hose
87245A Hose, Heater Water, Inlet A
87245E Hose, Heater Water, Inlet E
87246A Hose, Heater Water, Outlet A
87246E Hose, Heater Water, Outlet E
87248A Pipe, Heater Water Inlet, A
87248C Pipe, Heater Water Inlet, C
87248D Pipe, Heater Water Inlet, D
87248X Pipe, Heater Water
87249A Pipe, Heater Water Outlet, A
87249B Pipe, Heater Water Outlet, B
87249C Pipe, Heater Water Outlet, C
87251 Joint OR Union, Water Hose Through
87255 Adapter, Water Hose Joint
87255A Hose, Rear Heater Water Inlet, A(FROM ENGINE)
87256A Hose, Rear Heater Water Outlet, A (FROM HEATER UNIT)
87264 Bracket, Heater Water Hose
87264A Cover, Heater Water Hose
87264B Cover, Rear Heater Water Hose
87268A Protector, Rear Heater Pipe
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
