Toyota Blizzard

1984-05 → 1990-02 · chassis LD2# · catalogue 661120 · Japan

Discontinued model Data version 1990-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

22 part groups · 2 illustrations

Illustrations

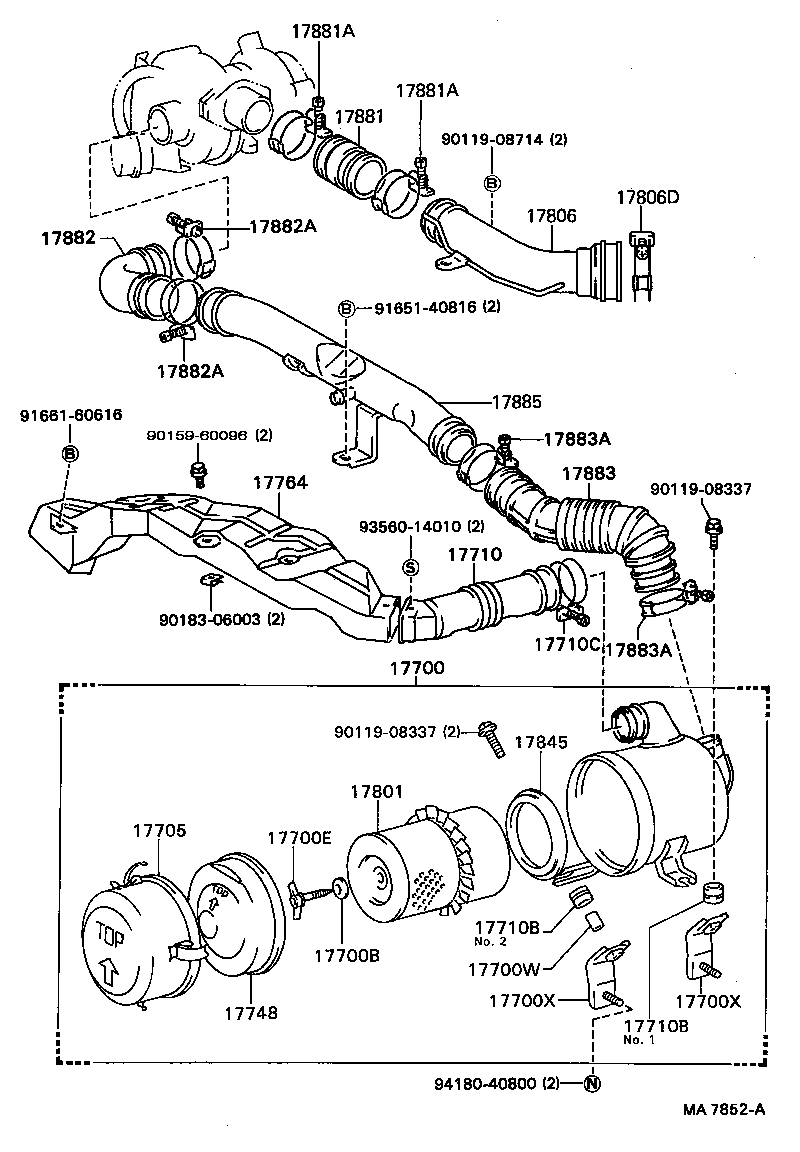

Figure MA7384A MA7384A 1984-05 → 1989-11 Figure MA7852A MA7852A 1984-09 → —

Part groups

PNCDescription
17700 Cleaner Assy, Air
17700B Washer, Seal(FOR AIR CLEANER)
17700E Bolt, Wing(FOR AIR CLEANER)
17700W Spacer(FOR AIR CLEANER)
17700X Bracket, Air Cleaner
17705 Cap Sub-assy, Air Cleaner
17710 Duct Sub-assy, Air Cleaner Inlet, NO.1
17710B Grommet
17710C Clamp(FOR AIR CLEANER INLET DUCT)
17748 Baffle, Air Cleaner
17764 Duct, Air Cleaner
17801 Element Sub-assy, Air Cleaner Filter
17806 Pipe Sub-assy, Air Cleaner, NO.2
17806D Clamp(FOR AIR CLEANER PIPE)
17845 Gasket, Air Cleaner Cap
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17882 Hose, Air Cleaner, NO.2
17882A Clamp(FOR AIR CLEANER HOSE, NO.2)
17883 Hose, Air Cleaner, NO.3
17883A Clamp(FOR AIR CLEANER HOSE, NO.3)
17885 Pipe, Air Cleaner
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
