Toyota Blizzard

1984-05 → 1990-02 · chassis LD2# · catalogue 661120 · Japan

Discontinued model Data version 1990-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Vacuum Piping

2 part groups · 3 illustrations

Illustrations

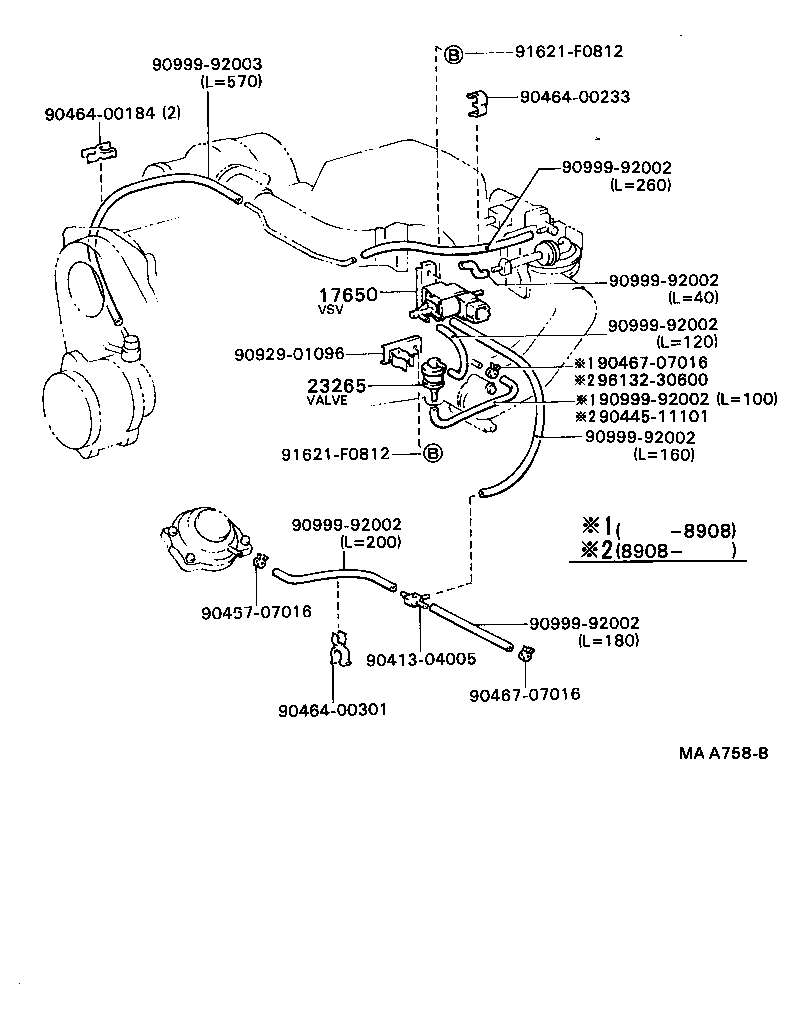

Figure MA9503A MA9503A 1984-09 → — Figure MA7853E MA7853E 1984-09 → — Figure MAA758B MAA758B 1987-09 → —

Part groups

PNCDescription
17650 Valve Assy, Vacuum Switching
23265 Filter, Gas, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
