Toyota Blizzard
1984-05 → 1990-02 · chassis LD2# · catalogue 661120 · Japan
Discontinued model
Data version 1990-10

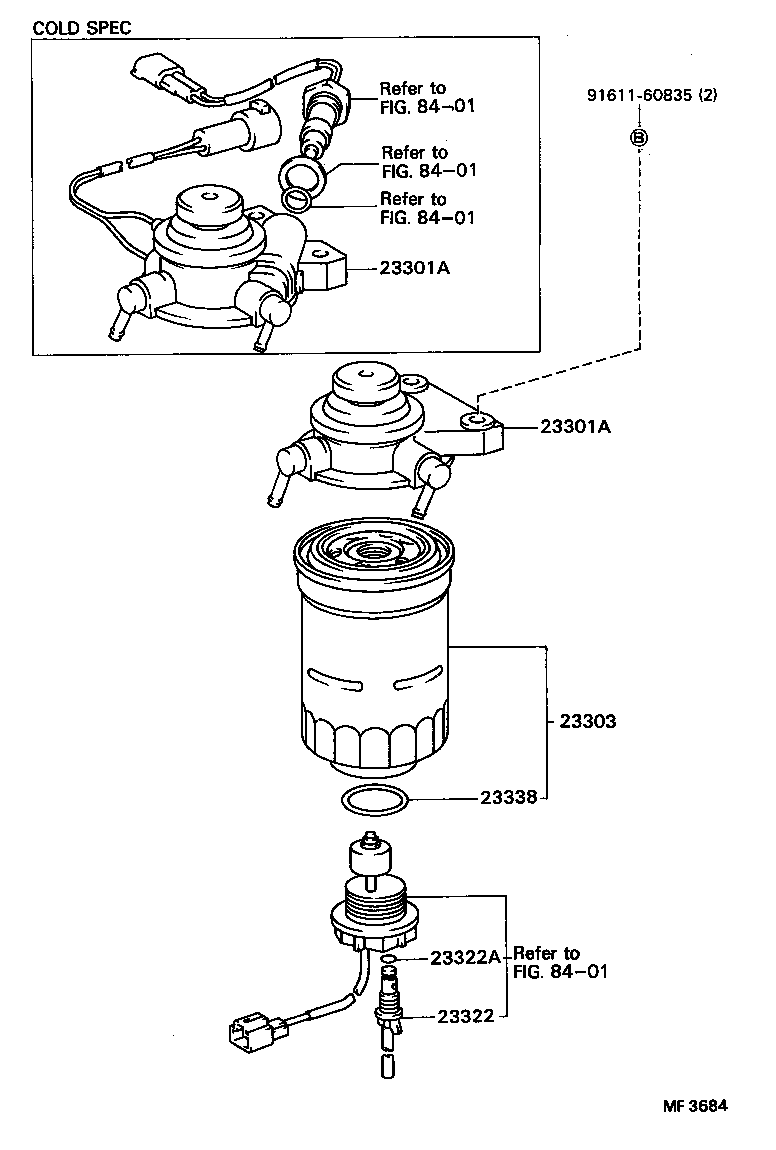

Fuel Filter
9 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 23300A | Union, Nipple(FOR FUEL FILTER INLET) |
| 23300B | Union, Nipple(FOR FUEL FILTER OUTLET) |
| 23300C | Gasket, Nipple Union(FOR FUEL) |
| 23301A | Cap Assy, Fuel Filter |
| 23303 | Element Sub-assy, Fuel Filter |
| 23319 | Screw, Fuel Pipe Follow |
| 23322 | Plug, Drain(FOR FUEL FILTER) |
| 23322A | Ring, O(FOR DRAIN PLUG) |
| 23338 | Gasket(FOR WARNING SWITCH) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
