Toyota Blizzard

1984-05 → 1990-02 · chassis LD2# · catalogue 661120 · Japan

Discontinued model Data version 1990-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Column & Shaft

23 part groups · 2 illustrations

Illustrations

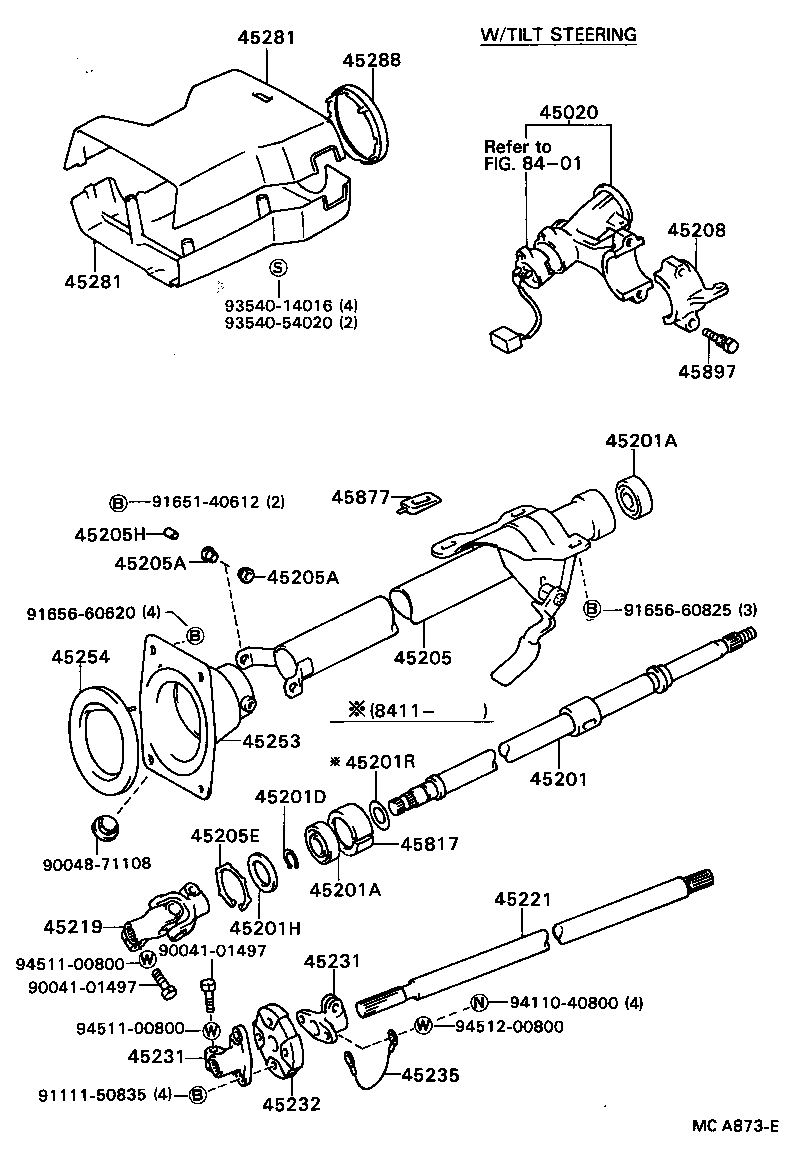

Figure MCA872D MCA872D 1984-05 → — Figure MCA873E MCA873E 1984-05 → —

Part groups

PNCDescription
45020 Bracket Assy, Steering Column Upper W/Switch
45201 Shaft Sub-assy, Steering Main
45201A Bearing(FOR STEERING MAIN SHAFT)
45201D Ring(FOR STEERING MAIN SHAFT)
45201H Washer, Plate(FOR STEERING MAIN SHAFT)
45201R Shim(FOR STEERING MAIN SHAFT)
45205 Tube Sub-assy, Steering Column
45205A Bush(FOR STEERING COLUMN TUBE)
45205E Ring, Snap(FOR STEERING COLUMN TUBE)
45205H Collar(FOR STEERING COLUMN TUBE)
45208 Housing Sub-assy, Steering Column, Upper
45219 Yoke, Steering Sliding
45221 Shaft, Steering Intermediate
45231 Yoke, Main Shaft Flexible Coupling
45232 Coupling, Main Shaft Flexible
45235 Earth, Flexible Coupling
45253 Cover, Steering Column Hole
45254 Shield, Steering Column Hole
45281 Housing, Steering Column
45288 Plate, Steering Column Cover
45817 Stopper, Steering Shaft Thrust
45877 Wedge, Caster(FOR STEERING COLUMN TUBE SETTING)
45897 Bolt, Steering Lock Set
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
