Toyota Blizzard

1984-05 → 1990-02 · chassis LD2# · catalogue 661120 · Japan

Discontinued model Data version 1990-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Wheel

18 part groups · 3 illustrations

Illustrations

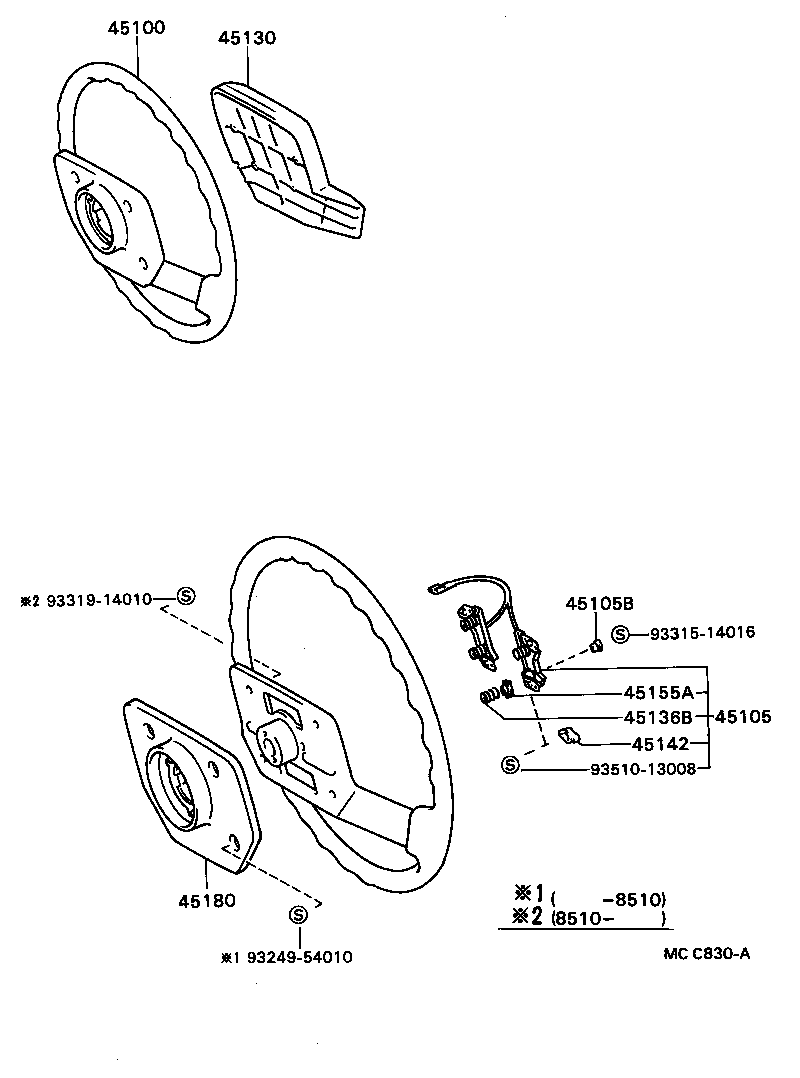

Figure MCA879B MCA879B 1984-05 → — Figure MCA879B MCA879B 1985-09 → — Figure MCC830A MCC830A 1985-09 → —

Part groups

PNCDescription
45100 Wheel Assy, Steering
45105 Plate Sub-assy, Horn Button Contact, NO.1
45105B Spacer(FOR HORN BUTTON CONTACT PLATE)
45107 Wire Sub-assy, Horn Button
45112 Pad, Steering Wheel
45116 Ornament, Steering Wheel, NO.1
45130 Button Assy, Horn
45132 Plate, Horn Button Back
45135 Cushion, Horn Button
45136 Plate, Horn Button Contact
45136B Spring, Compression(FOR HORN BUTTON CONTACT PLATE)
45137A Plate, Horn Button Contact, NO.2
45142 Seat, Horn Button Contact, NO.1
45146 Spring, Horn Button Contact
45155A Spacer, Horn Contact
45180 Cover Sub-assy, Steering Wheel
45201P Nut, Steering Wheel Set
45207 Ring, Horn Contact
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
