Toyota Blizzard
1984-05 → 1990-02 · chassis LD2# · catalogue 661120 · Japan
Discontinued model
Data version 1990-10

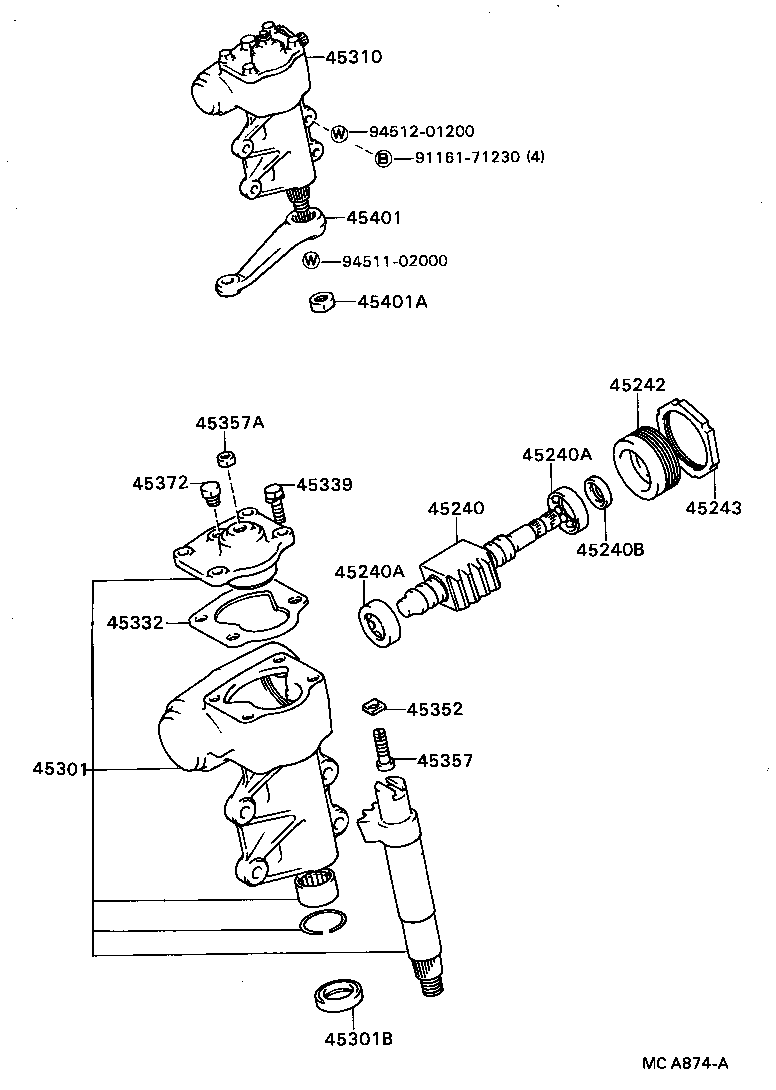

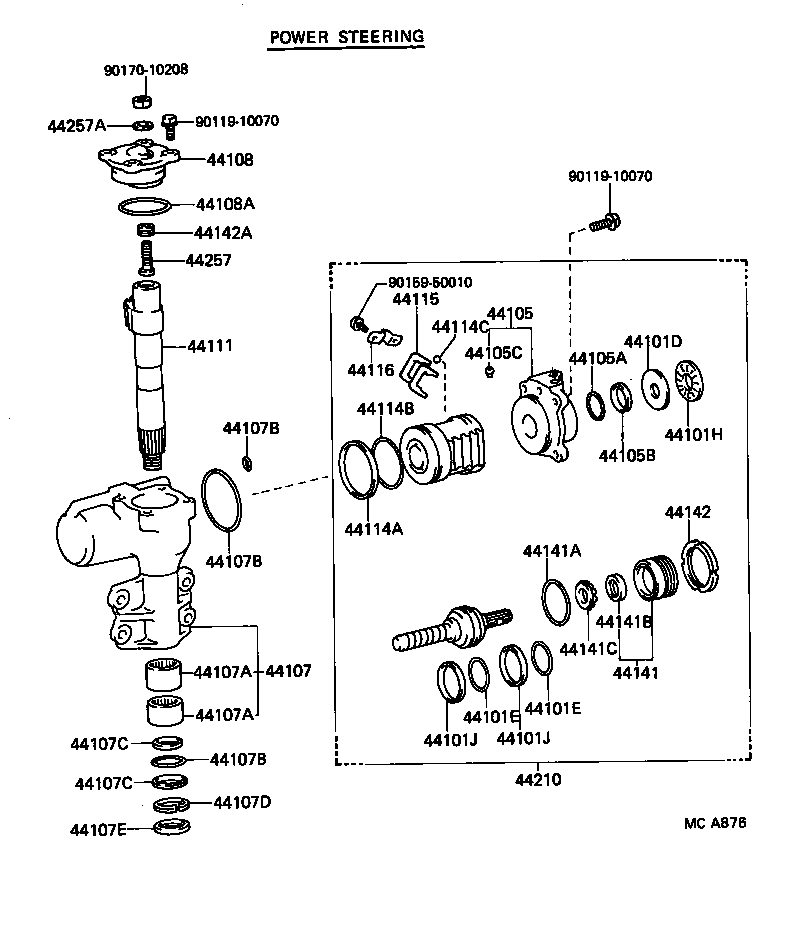

Front Steering Gear & Link
66 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 04044 | Warm Kit, Power Steering |
| 04445 | Gasket Kit, Power Steering Gear(FOR RECIRCULATING BALL) |
| 04455A | Gasket Kit, Power Steering Cross Shaft Overhole |
| 44101D | Washer, Plate(FOR STEERING WORM) |
| 44101E | Ring, O(FOR STEERING WORM) |
| 44101H | Bearing, Thrust Needle Roller(FOR STEERING WORM) |
| 44101J | Ring(FOR STEERING WORM) |
| 44105 | Housing Sub-assy, Valve |
| 44105A | Ring, O(FOR VALVE HOUSING) |
| 44105B | Ring(FOR VALVE HOUSING) |
| 44105C | Seat, Union(FOR VALVE BODY HOUSING) |
| 44107 | Housing Sub-assy, Power Steering Gear |
| 44107A | Bearing, Needle Roller(FOR POWER STEERING GEAR HOUSING) |
| 44107B | Ring, O(FOR POWER STEERING GEAR HOUSING) |
| 44107C | Ring(FOR POWER STEERING GEAR HOUSING) |
| 44107D | Ring, Hole Snap(FOR POWER STEERING GEAR HOUSING) |
| 44107E | Seal, Oil(FOR POWER STEERING GEAR HOUSING) |
| 44108 | Cover Sub-assy, Side |
| 44108A | Ring, O(FOR SIDE COVER) |
| 44110 | Gear Assy, Power Steering |
| 44111 | Shaft, Cross |
| 44114A | Ring(FOR POWER PISTON NUT) |
| 44114B | Ring, O(FOR POWER PISTON NUT) |
| 44114C | Ball(FOR POWER PISTON NUT) |
| 44115 | Guide, Ball |
| 44116 | Clamp, Ball Guide |
| 44141 | Plug, Adjuster |
| 44141A | Ring, O(FOR ADJUSTER PLUG) |
| 44141B | Seal, Oil(FOR ADJUSTER PLUG) |
| 44141C | Bearing(FOR ADJUSTER PLUG) |
| 44142 | Nut, Lock |
| 44142A | Nut, Lock, NO.1 |
| 44210 | Valve Assy, Power Steering Control |
| 44251 | Arm, Pitman |
| 44251A | Nut, Castle(FOR PITMAN ARM) |
| 44257 | Screw, Cross Shaft Adjusting |
| 44257A | Washer, Seal(FOR CROSS SHAFT ADJUSTING SCREW) |
| 45046 | End Sub-assy, Tie Rod, RH |
| 45046A | Nut, Castle(FOR TIE ROD END) |
| 45046C | Seal, Dust(FOR TIE ROD END) |
| 45047 | End Sub-assy, Tie Rod, LH |
| 45240 | Worm Assy, Steering |
| 45240A | Bearing(FOR STEERING WORM) |
| 45240B | Seal, Oil(FOR STEERING WORM) |
| 45242 | Screw, Worm Bearing Adjusting |
| 45243 | Nut, Worm Bearing Adjusting Screw Lock |
| 45301 | Housing Sub-assy, Steering Gear |
| 45301B | Seal, Oil(FOR SECTOR SHAFT) |
| 45310 | Housing Assy, Steering Gear |
| 45332 | Gasket, Sector Shaft End Cover |
| 45339 | Bolt, Steering Gear Housing |
| 45352 | Washer, Sector Shaft Thrust |
| 45357 | Screw, Sector Shaft Adjusting |
| 45357A | Nut, Sector Shaft Adjusting |
| 45372 | Plug, Steering Gear Housing Oil |
| 45401 | Arm Sub-assy, Pitman |
| 45401A | Nut, Castle(FOR PITMAN ARM) |
| 45450 | Rod Assy, Steering Relay |
| 45450A | Nut, Castle(FOR RELAY ROD) |
| 45450C | Seal, Dust(FOR RELAY ROD) |
| 45460 | Rod Assy, Tie, RH |
| 45461 | Rod, Steering Tie |
| 45461A | Nut(FOR STEERING TIE ROD LOCK) |
| 45487 | Band, Steering Link Joint Dust Seal |
| 45611A | Bolt, Knuckle Stopper |
| 45700 | Damper Assy, Steering |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
