Toyota Blizzard

1984-05 → 1990-02 · chassis LD2# · catalogue 661120 · Japan

Discontinued model Data version 1990-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Bumper & Bumper Stay

11 part groups · 3 illustrations

Illustrations

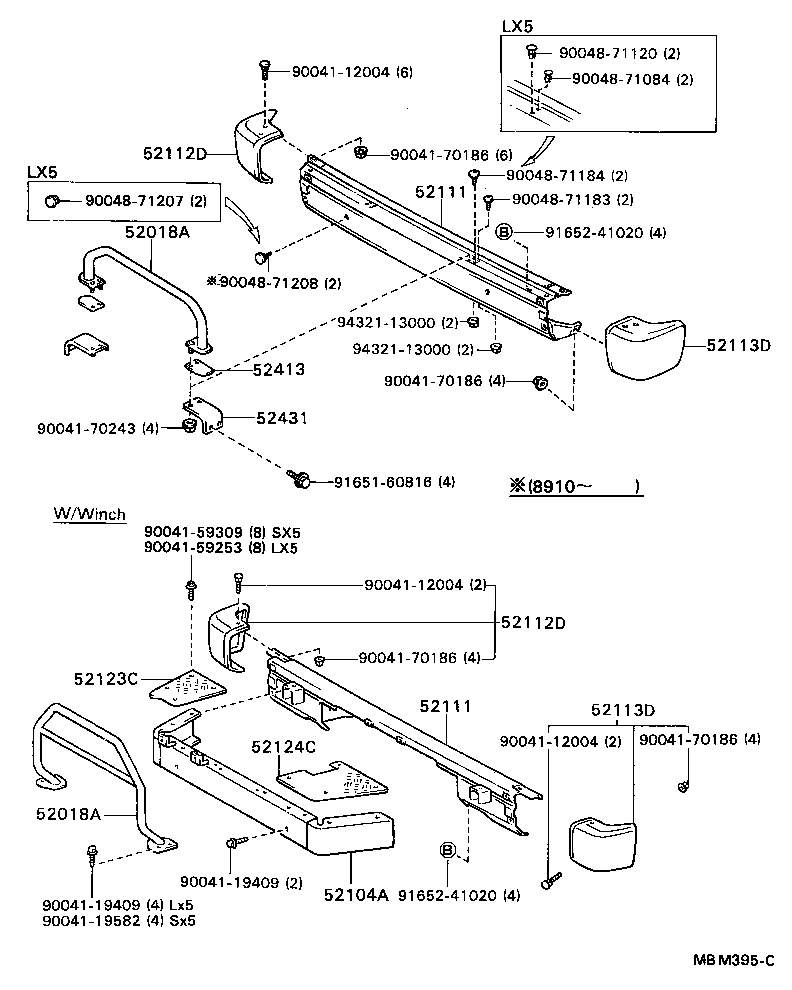

Figure MBG308D MBG308D 1984-05 → 1987-09 Figure MBG308D MBG308D 1987-09 → 1989-11 Figure MBM395C MBM395C 1987-09 → 1990-02

Part groups

PNCDescription
52018A Bar Sub-assy, Front Bumper Guard
52104A Bumper Sub-assy, Front Center
52111 Bumper Assy, Front
52112D Extension, Front Bumper, RH
52113D Extension, Front Bumper, LH
52123C Plate, Front Bumper Step, RH
52124C Plate, Front Bumper Step, LH
52147C Bracket, Bumper Guard Bar, RH
52148C Bracket, Bumper Guard Bar, LH
52413 Pad, Front Bumper Guard
52431 Retainer, Front Bumper Guard
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
