Toyota Blizzard

1984-05 → 1990-02 · chassis LD2# · catalogue 661120 · Japan

Discontinued model Data version 1990-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Instrument Panel & Glove Compartment

31 part groups · 2 illustrations

Illustrations

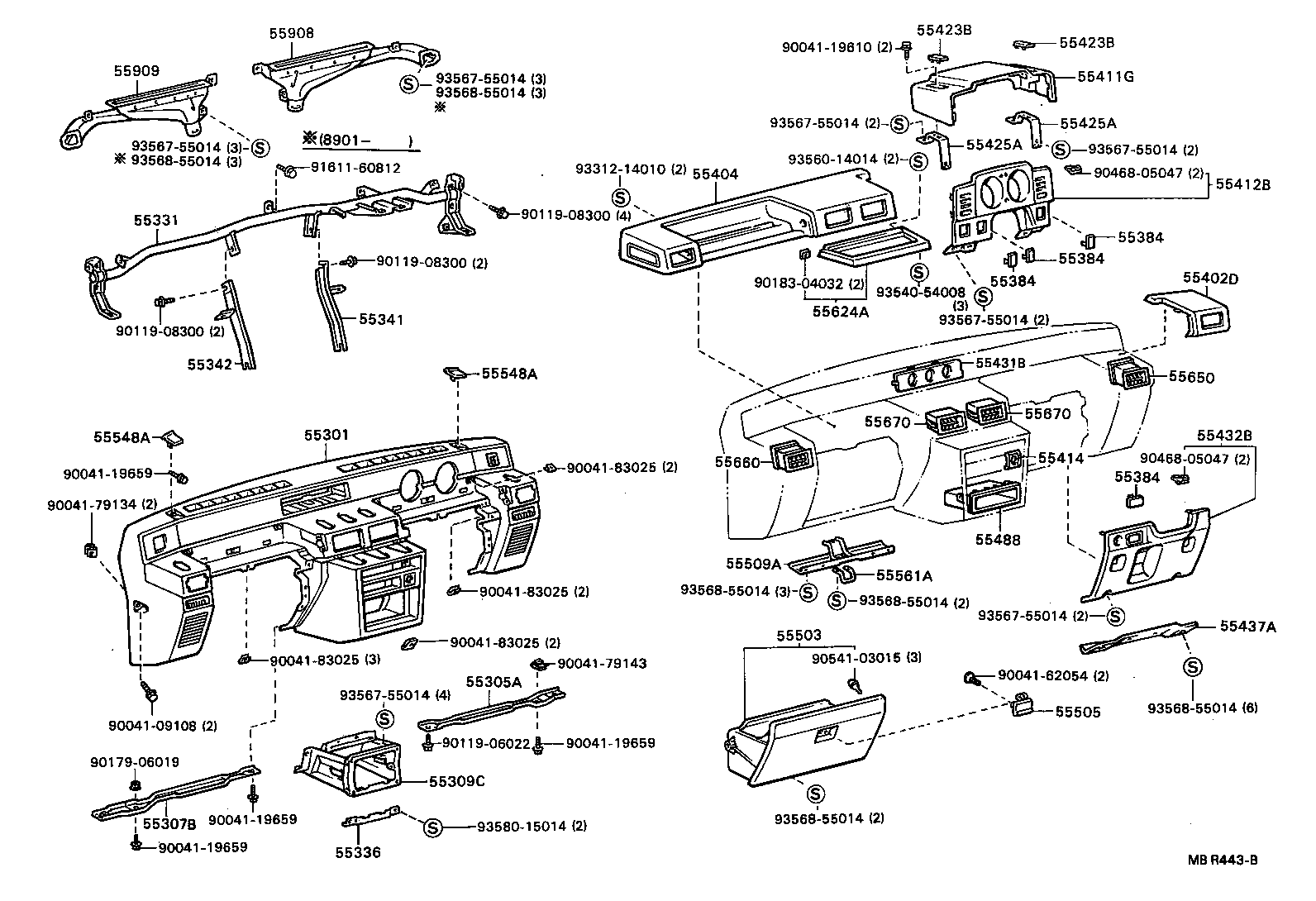

Figure MBG314C MBG314C 1984-05 → 1988-10 Figure MBR443B MBR443B 1988-10 → 1990-02

Part groups

PNCDescription
55301 Panel Sub-assy, Instrument
55305A Reinforcement Sub-assy, Instrument Panel, RH
55307B Reinforcement Sub-assy, Instrument Panel, LH
55309C Reinforcement Sub-assy, Instrument Panel, Center
55331 Reinforcement, Instrument Panel
55336 Reinforcement, Instrument Panel, Lower Center
55341 Brace, Instrument Panel, NO.1
55342 Brace, Instrument Panel, NO.2
55384 Cover, Base Switch Hole
55402D Pad Sub-assy, Instrument Panel Safety, NO.1
55404 Safety Pad Sub-assy, Instrument Panel, Upper
55411G Panel, Instrument Cluster Finish, NO.1
55412B Panel, Instrument Cluster Finish, Rear
55414 Bezel, Cigar Lighter Hole
55423B Cover, Instrument Cluster Finish Panel
55425A Bracket, Meter Hood Set
55431B Panel, Instrument Panel Finish, Upper
55432B Panel, Instrument Panel Finish, Lower
55437A Retainer, Instrument Panel Finish Panel, NO.1
55488 Cover, Stereo Opening
55503 Compartment Sub-assy, Glove
55505 Lock Sub-assy, Glove Compartment Door
55509A Retainer Sub-assy, Glove Compartment Door Lock
55548A Cover, Instrument Panel Hole
55561A Striker, Glove Compartment Door Lock
55624A Tray, Instrument Panel, Center
55650 Register Assy, Instrument Panel, NO.1
55660 Register Assy, Instrument Panel, NO.2
55670 Register Assy, Instrument Panel, NO.3
55908 Nozzle Sub-assy, Defroster, RH
55909 Nozzle Sub-assy, Defroster, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
