Toyota Blizzard

1984-05 → 1990-02 · chassis LD2# · catalogue 661120 · Japan

Discontinued model Data version 1990-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cowl Panel & Windshield Glass

28 part groups · 2 illustrations

Illustrations

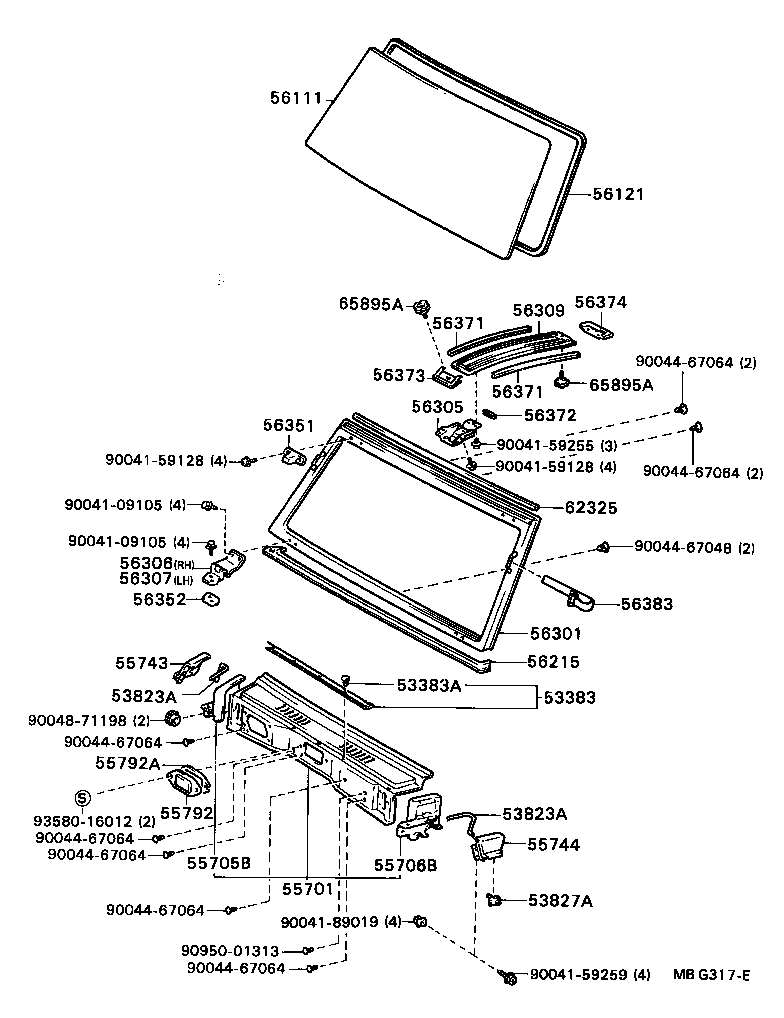

Figure MBG316F MBG316F 1984-05 → 1990-02 Figure MBG317E MBG317E 1984-05 → 1989-11

Part groups

PNCDescription
53383 Seal, Hood TO Cowl Top
53383A Clip(FOR HOOD TO COWL TOP SEAL)
53823A Protector, Front Side Panel, NO.2
53827A Retainer, Front Side Panel Set
55701 Panel Sub-assy, Cowl
55705B Panel Sub-assy, Cowl Top Side, RH
55706B Panel Sub-assy, Cowl Top Side, LH
55743 Panel, Cowl Top Outside Corner, RH
55744 Panel, Cowl Top Outside Corner, LH
55792 Cover, Wiper Motor Service Hole
55792A Seal, Wiper Motor Service Hole
56111 Glass, Windshield
56121 Weatherstrip, Windshield
56215 Weatherstrip, TO Spacer Windshield
56301 Frame Sub-assy, Windshield
56305 Hinge Sub-assy, Tee Bar
56306 Hinge Sub-assy, Windshield Support, RH
56307 Hinge Sub-assy, Windshield Support, LH
56309 Bar Sub-assy, Tee
56351 Bumper, Windshield
56352 Sheet, Windshield Hinge, Male
56371 Rrotector, Tee Bar Edge
56372 Protector, Tee Bar Hinge
56373 Cushion, Tee Bar, Front
56374 Cushion, Tee Bar, Rear
56383 Band, Windshield Set
62325 Trim, Windshield Frame
65895A Handle, Center Tarpaulin Bow Stay Catch
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
