Toyota Blizzard

1984-05 → 1990-02 · chassis LD2# · catalogue 661120 · Japan

Discontinued model Data version 1990-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Side Window

12 part groups · 2 illustrations

Illustrations

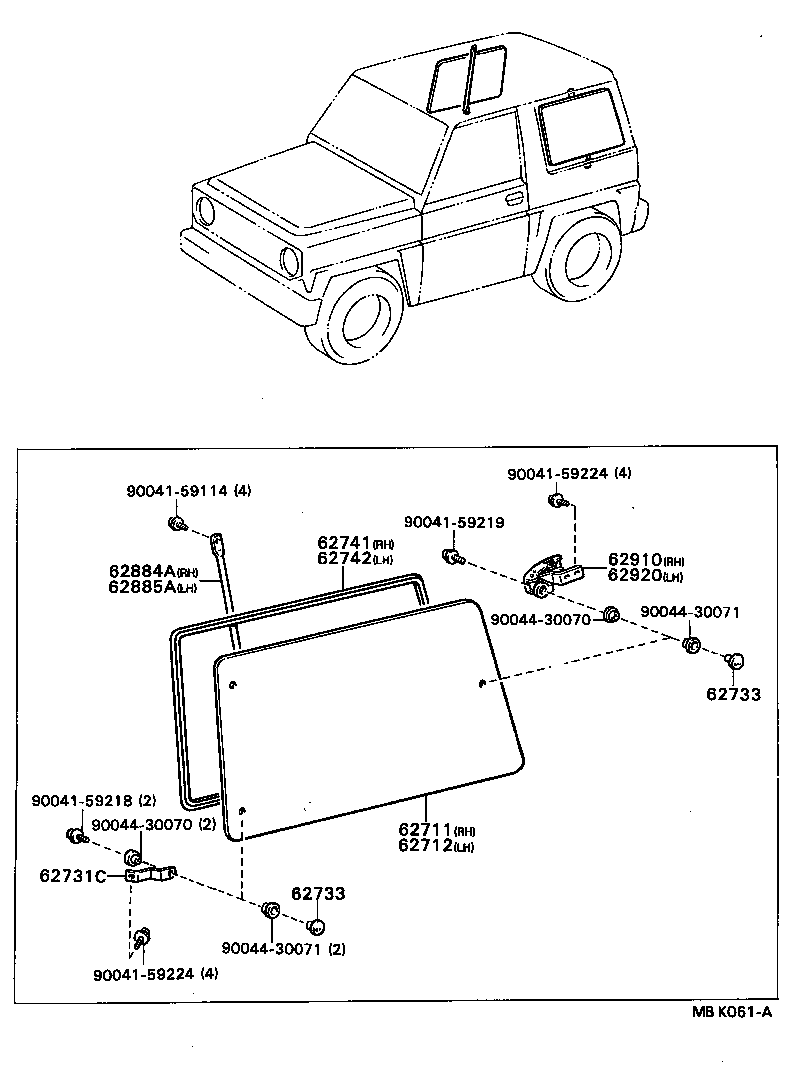

Figure MBG324B MBG324B 1984-05 → 1985-09 Figure MBK061A MBK061A 1985-09 → 1990-02

Part groups

PNCDescription
62711 Glass, Quarter Window, RH
62712 Glass, Quarter Window, LH
62731C Hinge, Quarter Window, RH
62732 Plate, Quarter OR Side Window Hinge Finish
62733 Retainer, Quarter OR Side Window Hinge
62734 Spacer, Quarter Window Hinge
62741 Weatherstrip, Quarter Window, RH
62742 Weatherstrip, Quarter Window, LH
62884A Guard, Quarter Window, RH
62885A Guard, Quarter Window, LH
62910 Lock Assy, Quarter OR Side Window, RH
62920 Lock Assy, Quarter Window, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
