Toyota Blizzard
1984-05 → 1990-02 · chassis LD2# · catalogue 661120 · Japan
Discontinued model
Data version 1990-10

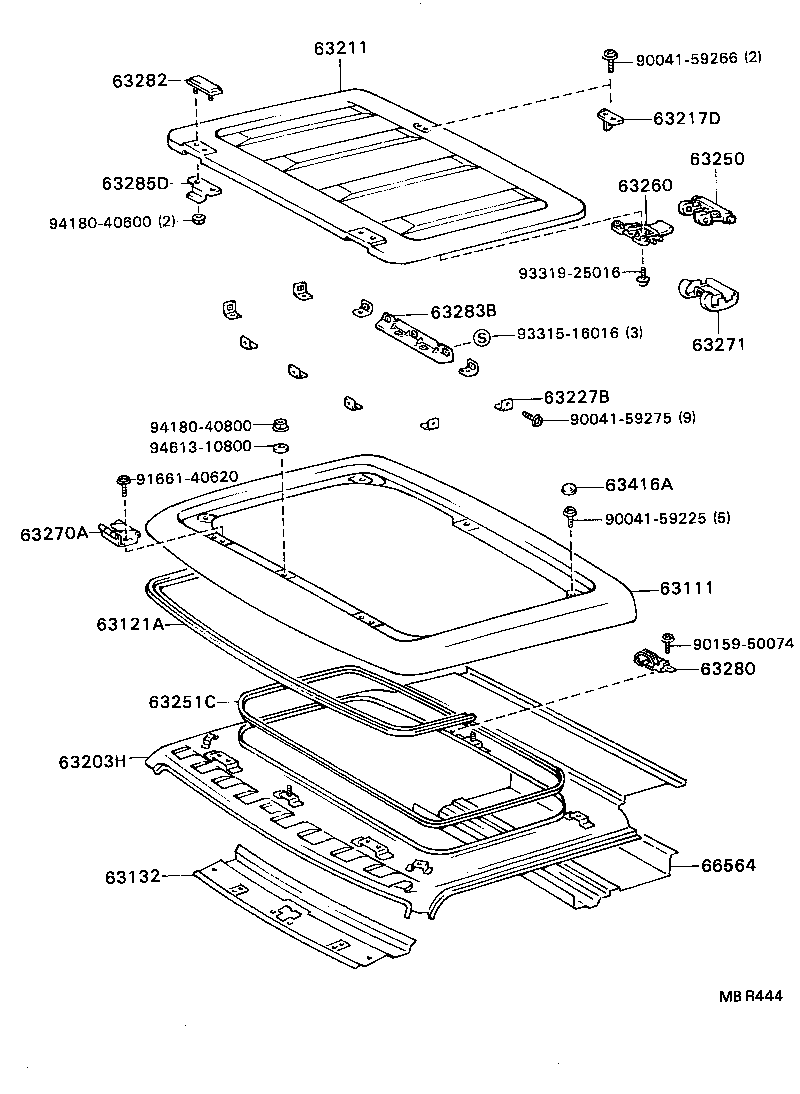

Roof Panel & Back Panel
20 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 63104 | Reinforcement Sub-assy, Roof Panel, Center |
| 63105A | Frame Sub-assy, Back Door Opening |
| 63111 | Panel, Roof |
| 63121A | Packing, Front Roof Panel |
| 63132 | Panel, Windshield Header, Inner |
| 63203H | Housing Sub-assy, Removable Roof |
| 63211 | Panel, Removable Roof |
| 63217D | Hook, Removable Roof Auxiliary, RH |
| 63227B | Bracket, Roof Head Lining |
| 63250 | Base Assy, Removable Roof Lock |
| 63251C | Weatherstrip, Removable Roof |
| 63260 | Handle Assy, Removable Roof Lock |
| 63270A | Catch Assy, Removable Roof |
| 63271 | Garnish, Removable Roof Lock |
| 63280 | Catch Assy, Removable Roof Auxiliary, LH |
| 63282 | Plate, Removable Roof Hinge Set |
| 63283B | Bracket, Removable Roof Lock Handle |
| 63285D | Hinge, Removable Roof |
| 63416A | Cap, Rear Roof Screw |
| 66564 | Panel, Roll Bar, Upper Inner |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
