Toyota Blizzard
1984-05 → 1990-02 · chassis LD2# · catalogue 661120 · Japan
Discontinued model
Data version 1990-10
Inside Trim Board
29 part groups · 4 illustrations
Part groups

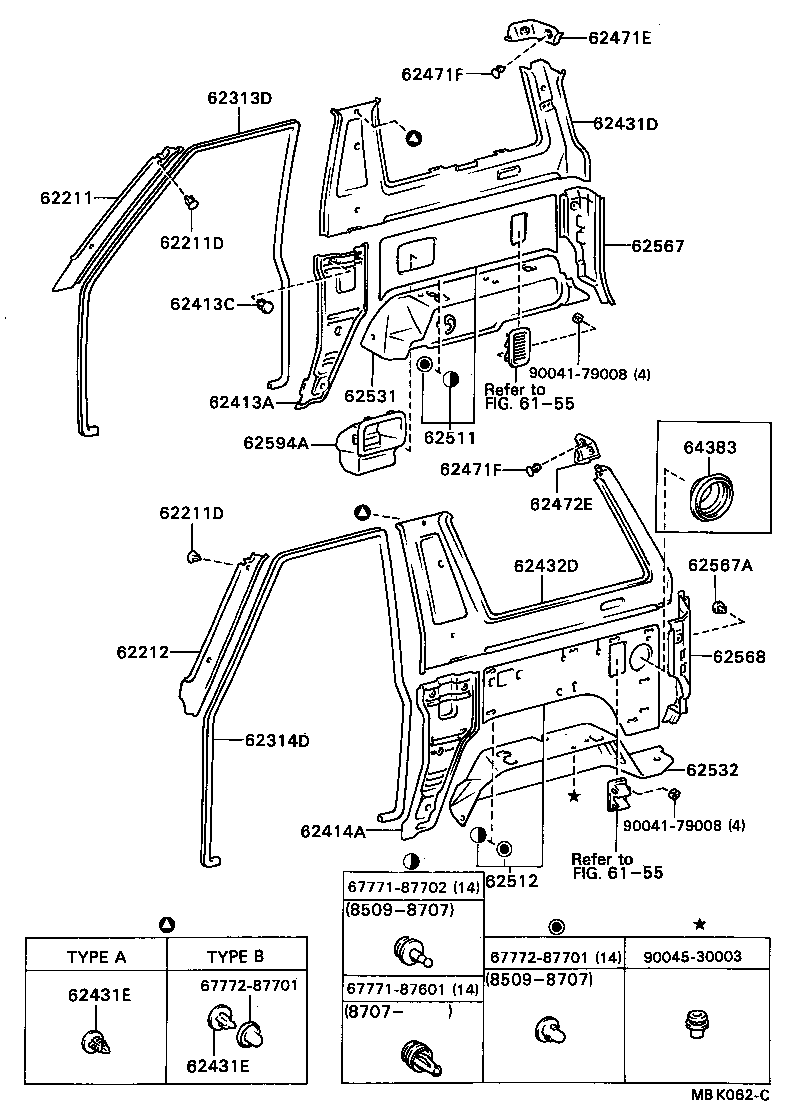

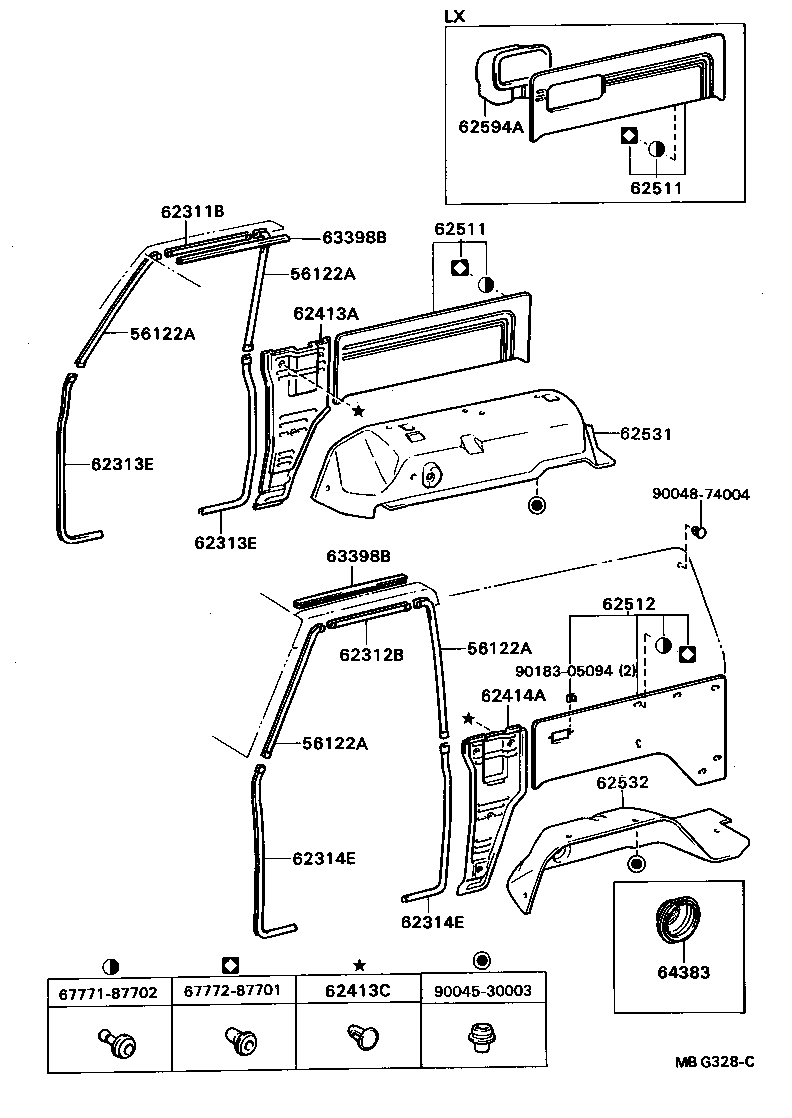

| PNC | Description |
|---|---|
| 56122A | Weatherstrip, Windshield, Sub |
| 62211 | Garnish, Front Pillar, RH |
| 62211D | Clip(FOR FRONT BODY PILLAR GARNISH) |
| 62212 | Garnish, Front Pillar, LH |
| 62311B | Weatherstrip, Front Door Opening Trim, RH |
| 62312B | Weatherstrip, Front Door Opening Trim, LH |
| 62313D | Trim, Front Door Opening, RH |
| 62313E | Trim, Front Door Opening, NO.2 RH |
| 62314D | Trim, Front Door Opening, LH |
| 62314E | Trim, Front Door Opening, NO.2 LH |
| 62413A | Garnish, Center Pillar, Lower RH |
| 62413C | Clip (FOR CENTER LOWER GARNISH) |
| 62414A | Garnish, Center Pillar, Lower LH |
| 62431D | Garnish, Quarter Panel, RH |
| 62431E | Clip (FOR QUARTER PANEL GARNISH) |
| 62432D | Garnish, Quarter Panel, LH |
| 62471E | Garnish, Roof Side, Inner Upper RH |
| 62471F | Clip (FOR ROOF SIDE, INNER UPPER GARNISH) |
| 62472E | Garnish, Roof Side, Inner Upper LH |
| 62511 | Board, Quarter Inside Trim, RH |
| 62512 | Board, Quarter Inside Trim, LH |
| 62531 | Cover, Wheel House Trim, RH |
| 62532 | Cover, Wheel House Trim, LH |
| 62567 | Cover, Quarter Trim, Rear Lower RH |
| 62567A | Clip(FOR QUARTER TRIM REAR LOWER COVER) |
| 62568 | Cover, Quarter Trim, Rear Lower LH |
| 62594A | Pocket, Quarter Trim, NO.1 |
| 63398B | Trim, Roof Side Rail, Front |
| 64383 | Grille, Speaker, Rear |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
