Toyota Blizzard

1984-05 → 1990-02 · chassis LD2# · catalogue 661120 · Japan

Discontinued model Data version 1990-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Body Top Curtain & Roof Panel

15 part groups · 2 illustrations

Illustrations

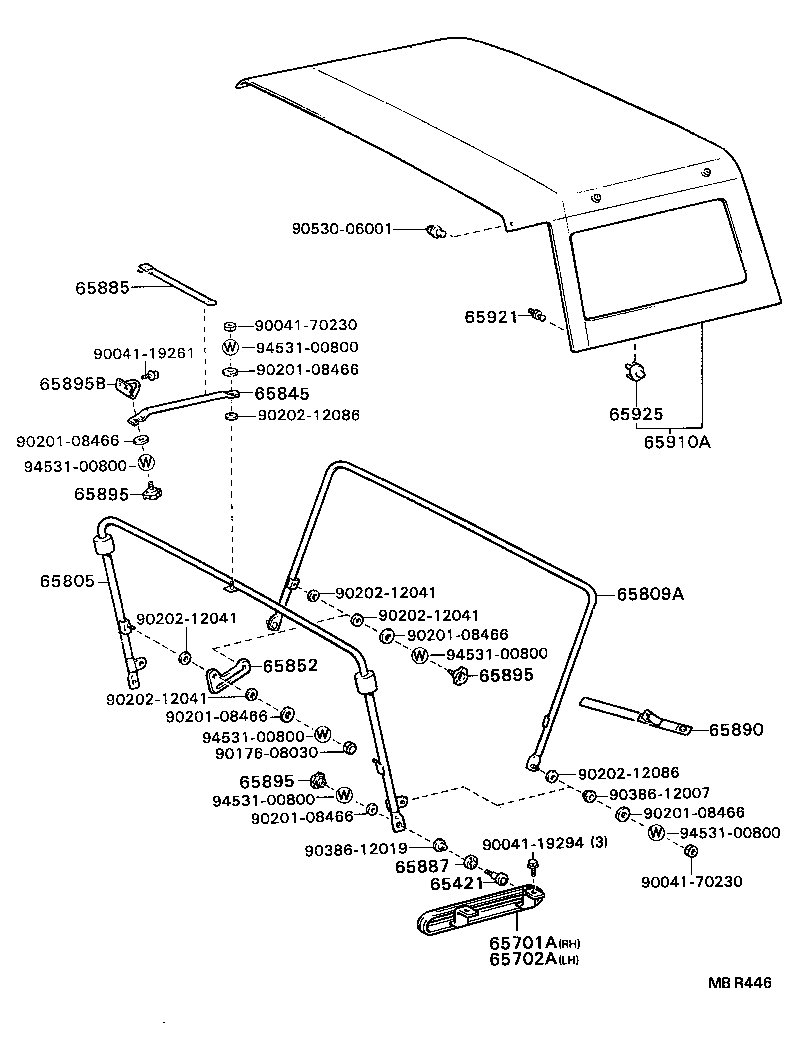

Figure MBG331A MBG331A 1984-05 → 1988-10 Figure MBR446 MBR446 1988-10 → 1989-11

Part groups

PNCDescription
65421 Pin, Joint
65701A Rail Sub-assy, Rear Tarpaulin Bow, RH
65702A Rail Sub-assy, Rear Tarpaulin Bow, LH
65805 Bow Sub-assy, Center Top Cover Tarpaulin, A
65809A Bow Sub-assy, Rear Top Cover Tarpaulin
65845 Stay, Rear Top Cover Tarpaulin Bow
65852 Stopper, Rear Top Cover Tarpaulin Bow
65885 Band, Tarpaulin Bow Set
65887 Washer, Rear Vinyl Top Pipe Rail
65890 Strap Assy, Tarpaulin Bow
65895 Handle, Center Tarpaulin Bow Stay Catch
65895B Bracket, Top Cover Tarpaulin Bow, NO.1
65910A Tarpaulin Assy
65921 Fastener, Vinyl Top
65925 Hook, Tarpaulin Side, Male
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
