Toyota Blizzard
1984-05 → 1990-02 · chassis LD2# · catalogue 661120 · Japan
Discontinued model
Data version 1990-10

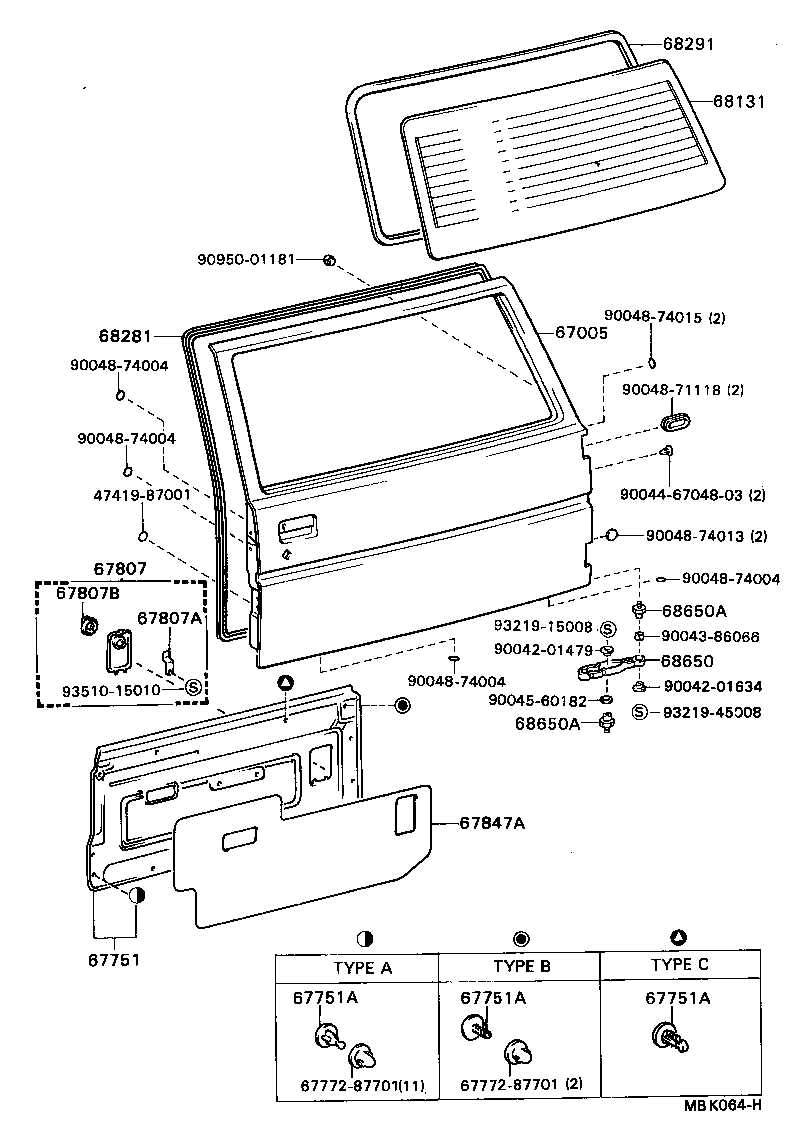

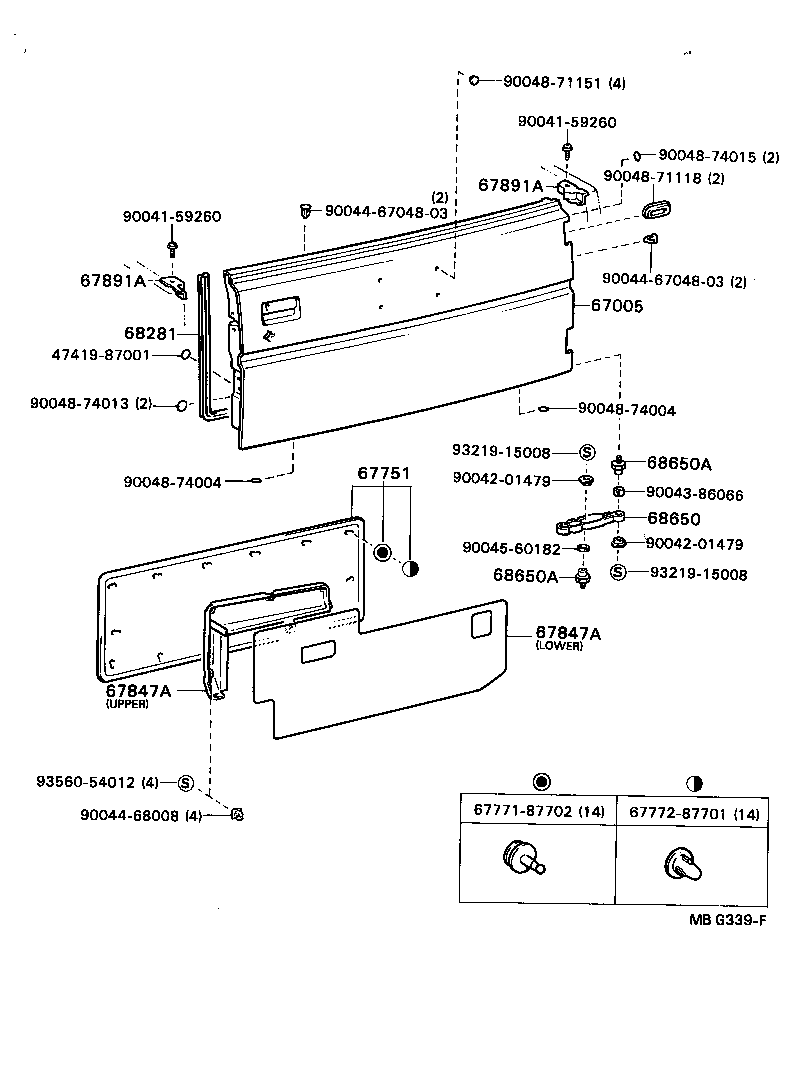

Back Door Panel & Glass
13 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|
| 67005 | Panel Sub-assy, Back Door |
| 67751 | Board, Back Door Trim |
| 67751A | Clip(FOR BACK DOOR TRIM BOARD) |
| 67807 | Cover Sub-assy, Back Door Service Hole |
| 67807A | Stopper, Back Door Service Hole Cover |
| 67807B | Knob, Back Door Service Hole Cover |
| 67847A | Cover, Back Door Service Hole |
| 67891A | Seal, Back Door |
| 68131 | Glass, Back Door |
| 68281 | Weatherstrip, Back Door, Lower |
| 68291 | Weatherstrip, Back Door Glass |
| 68650 | Check Assy, Back Door |
| 68650A | Pin(FOR BACK DOOR CHECK) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
