Toyota Blizzard
1984-05 → 1990-02 · chassis LD2# · catalogue 661120 · Japan
Discontinued model
Data version 1990-10
Seat & Seat Track
33 part groups · 4 illustrations
Part groups
| PNC | Description |
|---|---|

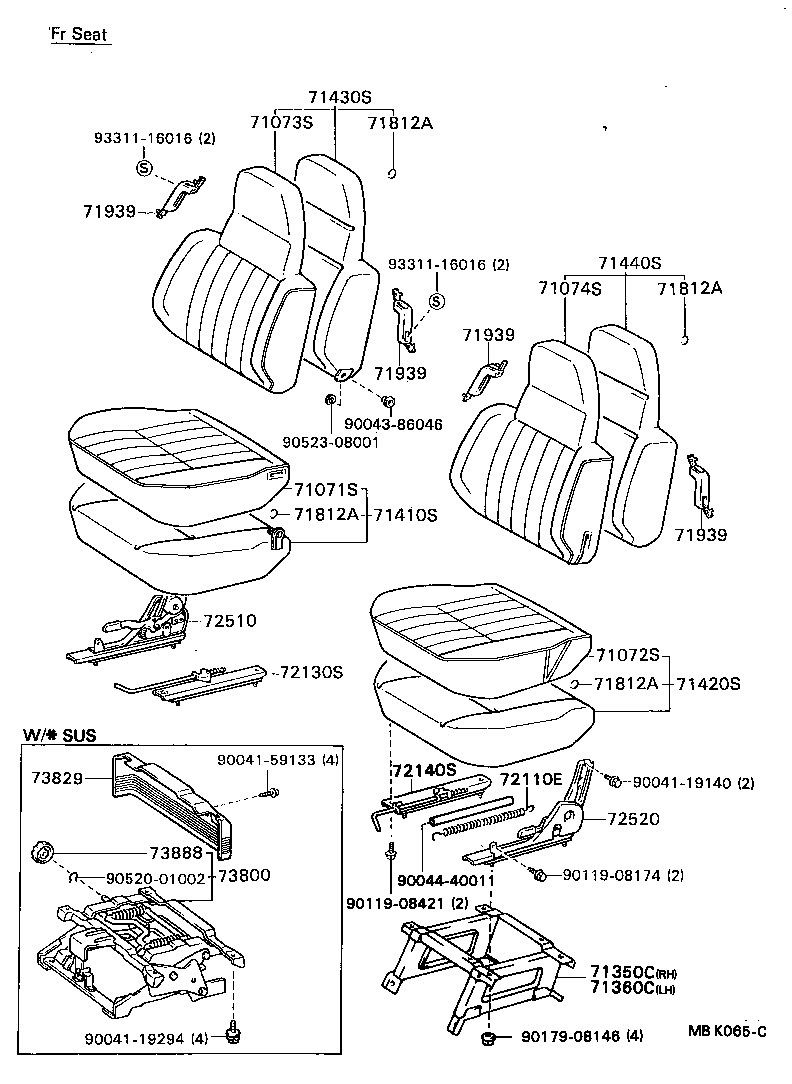

| 71071S | Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE) |
| 71072S | Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE) |
| 71073S | Cover, Front Seatback, RH(FOR SEPARATE TYPE) |
| 71074S | Cover, Front Seatback, LH(FOR SEPARATE TYPE) |

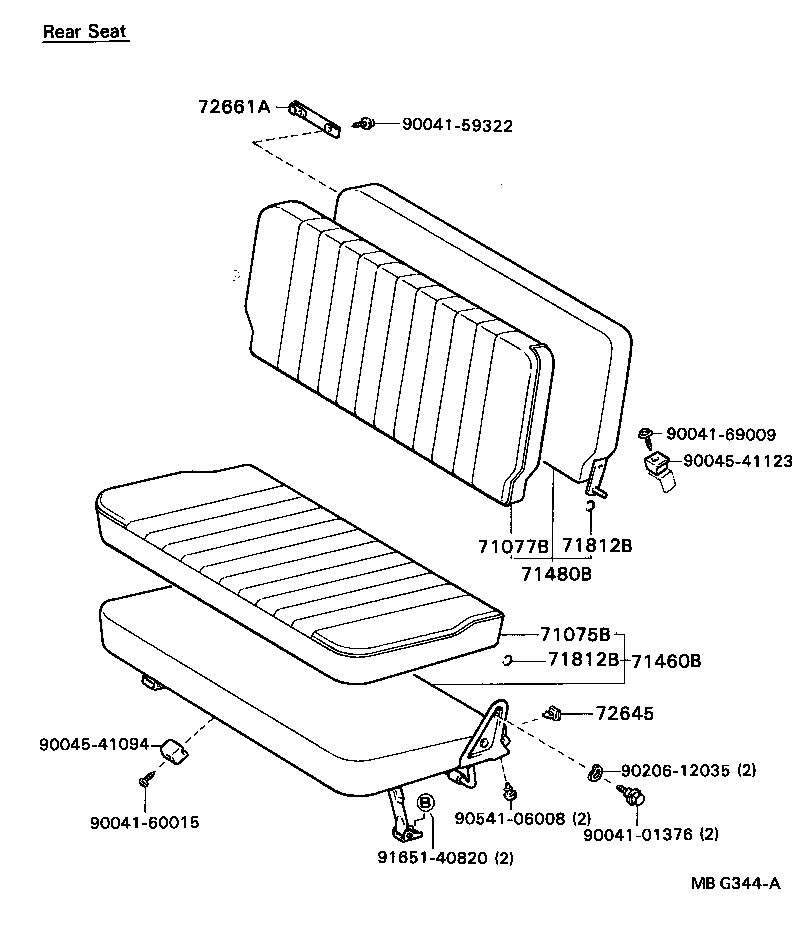

| 71075B | Cover, Rear Seat Cushion (FOR BENCH TYPE) |
| 71077B | Cover, Rear Seatback (FOR BENCH TYPE) |
| 71350C | Leg Assy, Front Seat Cushion, RH |
| 71360C | Leg Assy, Front Seat Cushion, LH |
| 71410S | Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE) |
| 71420S | Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE) |
| 71430S | Back Assy, Front Seat, RH(FOR SEPARATE TYPE) |
| 71440S | Back Assy, Front Seat, LH(FOR SEPARATE TYPE) |
| 71446 | Silencer, Seatback, LH |

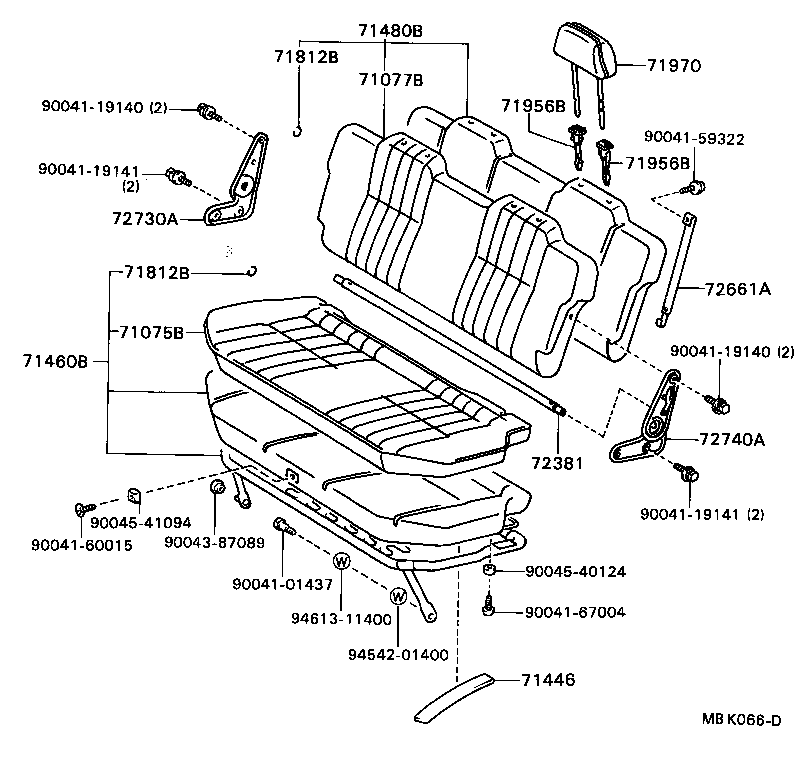

| 71460B | Cushion Assy, Rear Seat (FOR BENCH TYPE) |
| 71480B | Back Assy, Rear Seat (FOR BENCH TYPE) |
| 71812A | Ring, Hog, Small (FOR FRONT SEAT) |
| 71812B | Clip(FOR REAR SEAT CUSHION COVER) |
| 71939 | Grip, Front Seat Assist |
| 71956B | Support, Rear Seat Headrest |
| 71970 | Headrest Assy, Rear Seat |
| 72110E | Spring, Tension, NO.1 (FOR SEAT TRACK) |
| 72130S | Track Assy, RH Seat, Inner (FOR SEPARATE SEAT) |
| 72140S | Track Assy, LH Seat, Inner (FOR SEPARATE SEAT) |
| 72381 | Rod, Reclining Adjuster Equalizing, NO.1 |
| 72510 | Adjuster Assy, Reclining Seatback, RH |
| 72520 | Adjuster Assy, Reclining Seatback, LH |
| 72645 | Cushion, Rear Seatback Lock |
| 72661A | Band, Rear Seat Stop |
| 72730A | Adjuster Assy, Rear Seat Reclining, RH |
| 72740A | Adjuster Assy, Rear Seat Reclining, LH |
| 73800 | Suspension Assy, Seat, RH |
| 73829 | Cover, Front Seat Suspension, RH |
| 73888 | Handle, Seat Suspension Control |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
