Toyota Blizzard

1984-05 → 1990-02 · chassis LD2# · catalogue 661120 · Japan

Discontinued model Data version 1990-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Protector Pipe, Roll Bar & Handrail

17 part groups · 2 illustrations

Illustrations

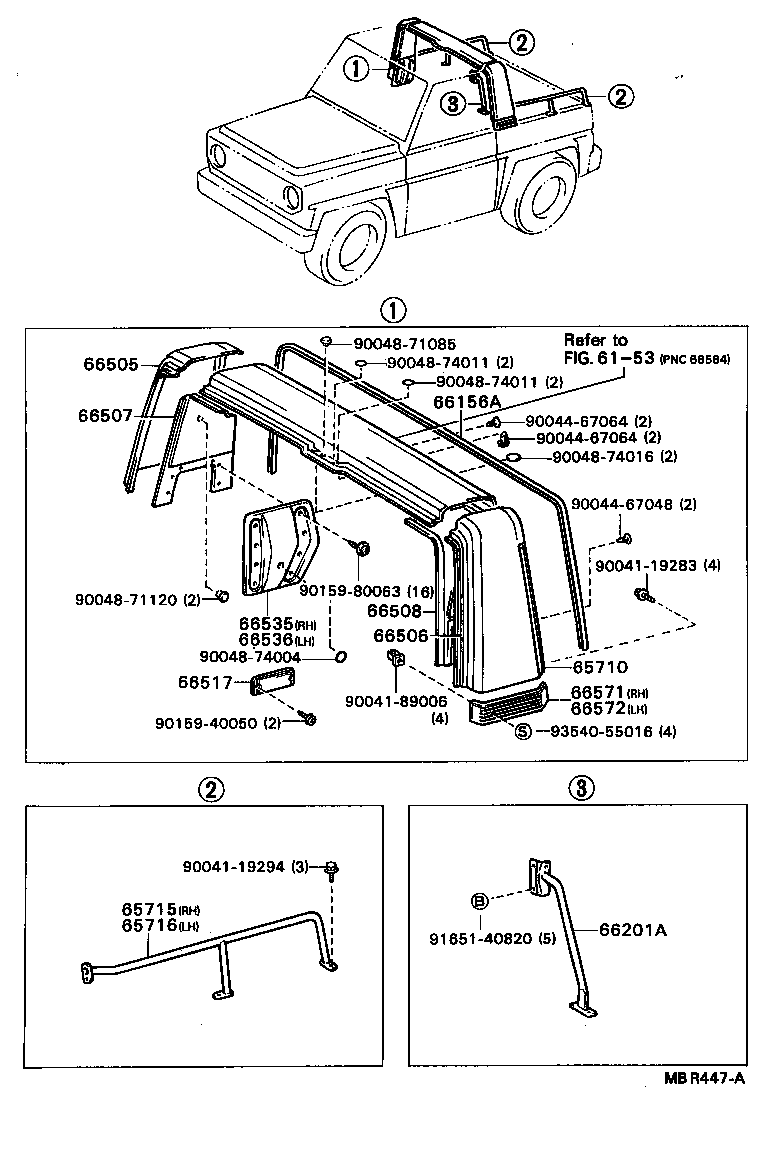

Figure MBG347B MBG347B 1984-05 → 1988-10 Figure MBR447A MBR447A 1988-10 → 1989-11

Part groups

PNCDescription
65710 Bar Sub-assy, Roll
65710B Shim(FOR ROLL BAR)
65715 Bar Sub-assy, Roll Side, RH
65716 Bar Sub-assy, Roll Side, LH
65747 Packing, Roll Bar
66155 Protector, Roll Over Edge, Front
66156A Protector, Roll Over Edge, Rear
66201A Bar Sub-assy, Rear Pillar Corner
66505 Bar Sub-assy, Roll Bar, Lower Outer RH
66506 Bar Sub-assy, Roll Bar, Lower Outer LH
66507 Bar Sub-assy, Roll Bar, Lower Inner RH
66508 Bar Sub-assy, Roll Bar, Lower Inner LH
66517 Cover, Roll Over, Lower Inner
66535 Bracket, Roll Over Mounting, NO.3 RH
66536 Bracket, Roll Over Mounting, NO.3 LH
66571 Garnish, Roll Over, RH
66572 Garnish, Roll Over, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
