Toyota Blizzard

1984-05 → 1990-02 · chassis LD2# · catalogue 661120 · Japan

Discontinued model Data version 1990-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Body Stripe

8 part groups · 6 illustrations

Illustrations

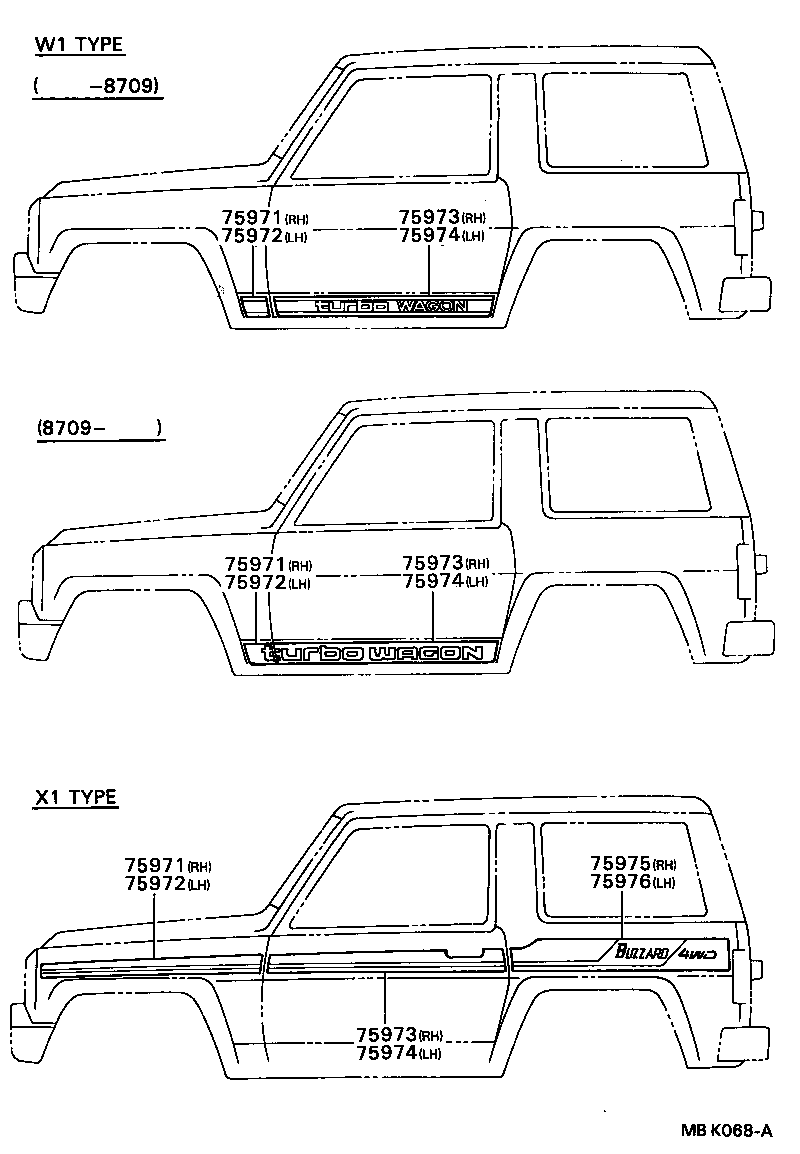

Figure MBG353B MBG353B 1984-05 → 1987-09 Figure MBM342B MBM342B 1987-09 → 1989-11 Figure MBH300A MBH300A 1984-09 → 1987-09 Figure MBH351A MBH351A 1984-09 → 1987-09 Figure MBM343A MBM343A 1987-09 → 1989-11 Figure MBK068A MBK068A 1985-09 → 1990-02

Part groups

PNCDescription
75971 Stripe, Side, RH NO.1
75972 Stripe, Side, LH NO.1
75973 Stripe, Side, RH NO.2
75974 Stripe, Center Pillar, LH NO.2
75975 Stripe, Side, RH Upr NO.3
75976 Stripe, Side, LH Upr
76991 Stripe, Side Mark, RH NO.1
76992 Stripe, Side Mark, LH NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
