Toyota Blizzard

1984-05 → 1990-02 · chassis LD2# · catalogue 661120 · Japan

Discontinued model Data version 1990-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

10 part groups · 2 illustrations

Illustrations

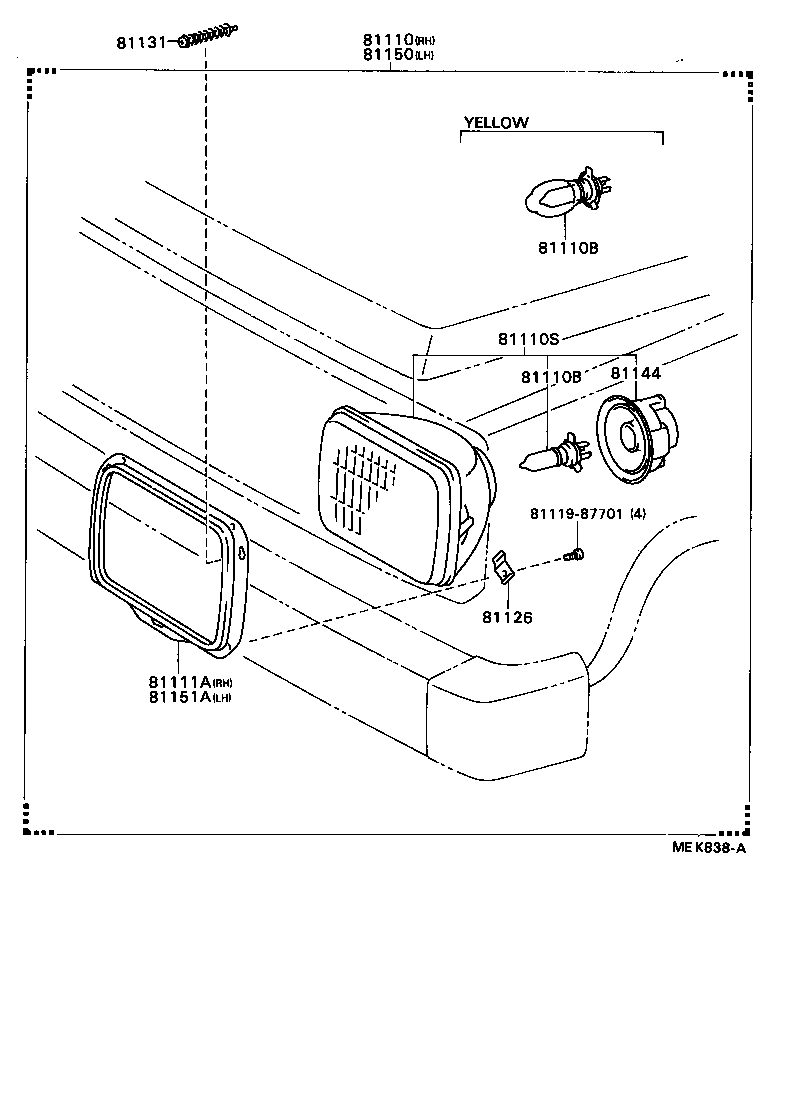

Figure MEE383A MEE383A 1984-05 → 1987-09 Figure MEK838A MEK838A 1987-09 → —

Part groups

PNCDescription
81110 Headlamp Assy, RH
81110B Bulb(FOR HEADLAMP, NO.1)
81110S Sealed Beam Unit, NO.1
81111A Ring, Sealed Beam Retaining, NO.1 RH
81121 Spring, Headlamp Tension
81126 Plate, Headlamp
81131 Screw, Headlamp Adjusting
81144 Cover, Headlamp, NO.1
81150 Headlamp Assy, LH
81151A Ring, Sealed Beam Retaining, NO.1 LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
