Toyota Blizzard

1984-05 → 1990-02 · chassis LD2# · catalogue 661120 · Japan

Discontinued model Data version 1990-10
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

19 part groups · 4 illustrations

Illustrations

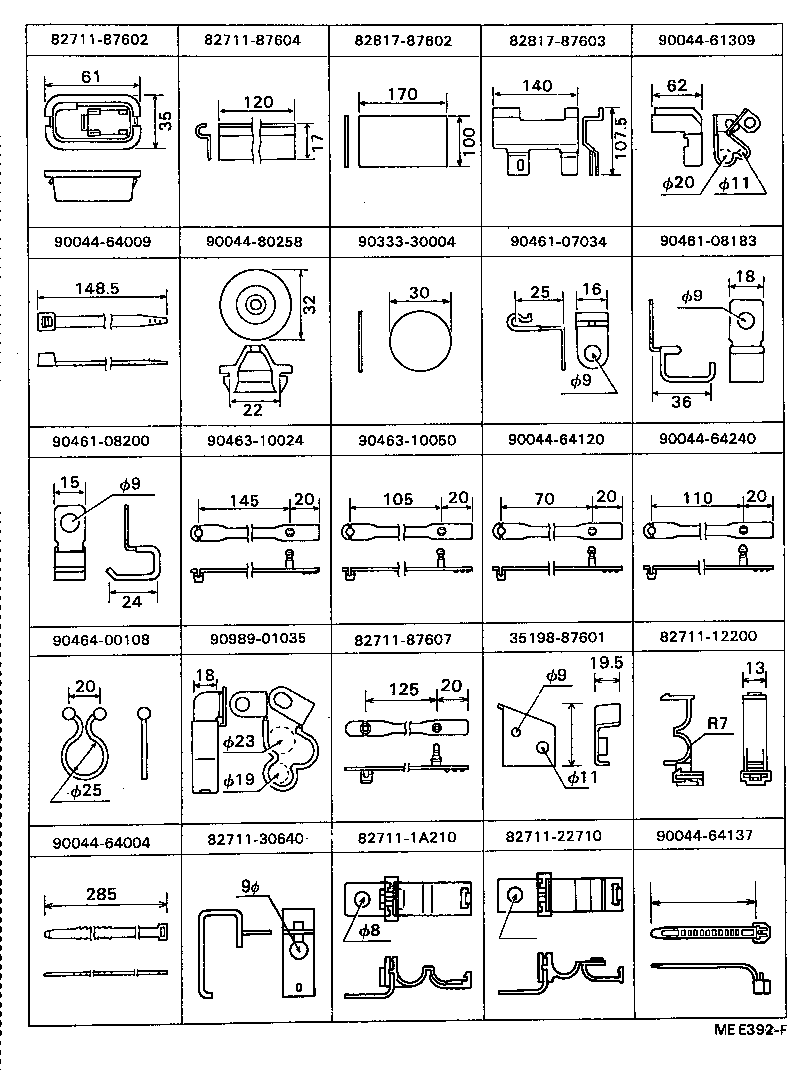

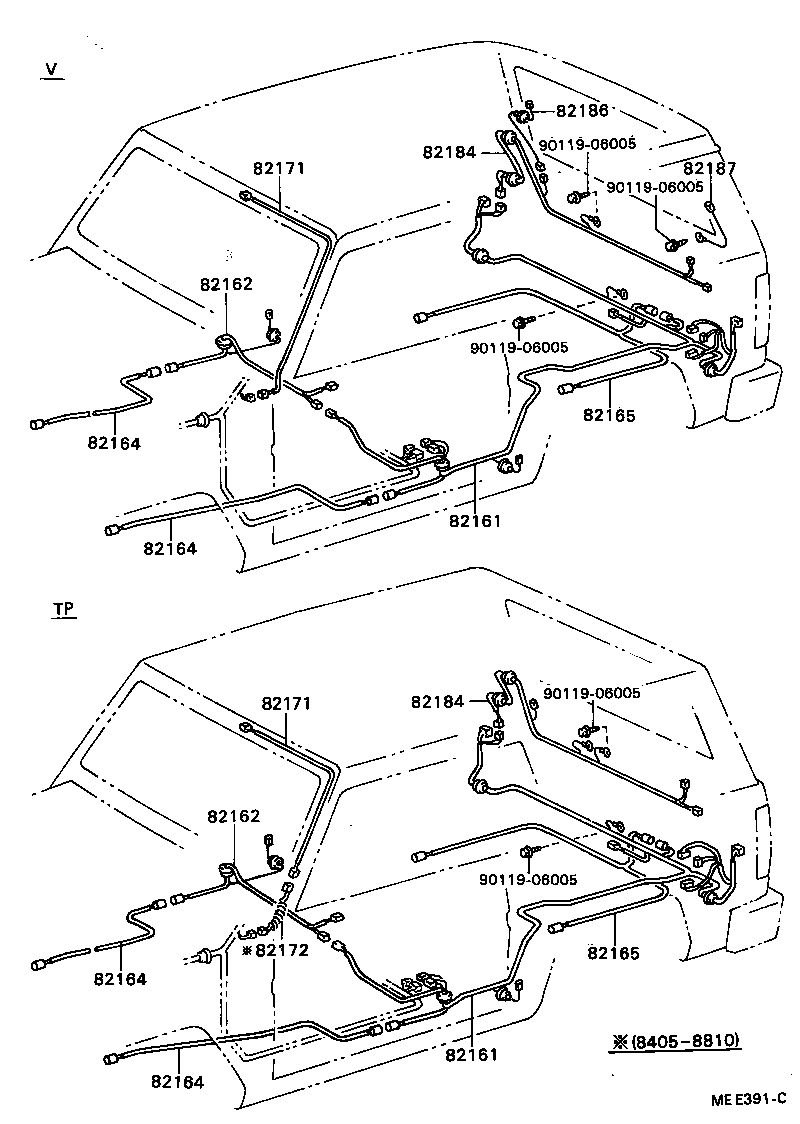

Figure MEE390A MEE390A 1984-05 → — Figure MEE391C MEE391C 1984-05 → — Figure MEE392F MEE392F 1984-05 → — Figure MEK132B MEK132B 1984-05 → —

Part groups

PNCDescription
82002 Cable, Battery TO Magnet Switch
82002A Cable, Magnet Switch TO Winch
82002B Cable, Winch TO Ground
82125 Wire, Transmission
82131 Wire, Cowl
82141 Wire, Instrument Panel
82161 Wire, Floor
82162 Wire, Floor, NO.2
82164 Wire, Frame
82165 Wire, Frame, NO.2
82171 Wire, Roof, NO.1
82172 Wire, Roof, NO.2
82184 Wire, Back Door, NO.1
82186 Wire, Rear Window, NO.1
82187 Wire, Rear Window, NO.2
82210B Fusible Link
82210C Fusible Link
82210D Fusible Link
82823 Cap, Terminal, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
