Toyota Blizzard
1984-05 → 1990-02 · chassis LD2# · catalogue 661120 · Japan
Discontinued model
Data version 1990-10
Meter
16 part groups · 2 illustrations

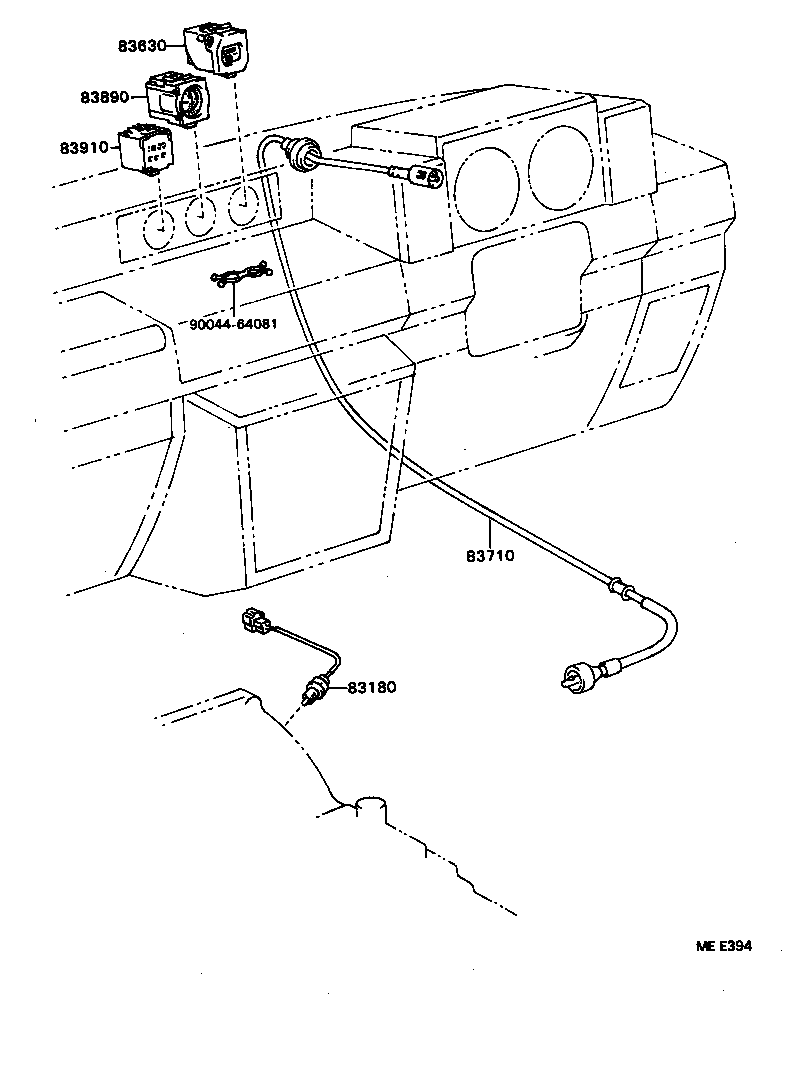

Part groups
| PNC | Description |
|---|---|
| 83100B | Bulb, Combination Meter, NO.1 |
| 83101 | Socket Sub-assy, Combination Meter Bulb |
| 83102 | Plate Sub-assy, Combination Meter Circuit, NO.1 |
| 83110 | Speedometer Assy |
| 83128 | Knob, Trip Counter |
| 83132 | Case, Combination Meter |
| 83133 | Plate, Combination Meter, NO.1 |
| 83180 | Detector Assy, Revolution |
| 83248 | Chime, Speed Warning |
| 83270 | Tachometer Assy, Engine |
| 83310 | Gage Assy, Fuel Receiver |
| 83410 | Gage Assy, Water Temperature Receiver |
| 83630 | Voltmeter Assy |
| 83710 | Cable Assy, Speedometer Drive, NO.1 |
| 83890 | Clinometer Assy |
| 83910 | Clock Assy |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
